Ground Zero GZRA 65.4-MICRO-W906/CRAFTER KIT
GZRA 65.4-MICRO-W906/CRAFTER
Sprinter / Crafter T-harness included
4-channel micro amplifier
Micro size amplifier
ISO-wire harness
High-level / RCA inputs
4x 75W / 2 x150W
Läs Mera
1 st
2 190,00 kr
Beskrivning
Teknisk information
GZRA 65.4-MICRO is ultra-compact 4-channel ISO-amplifier for plug and play OEM installations

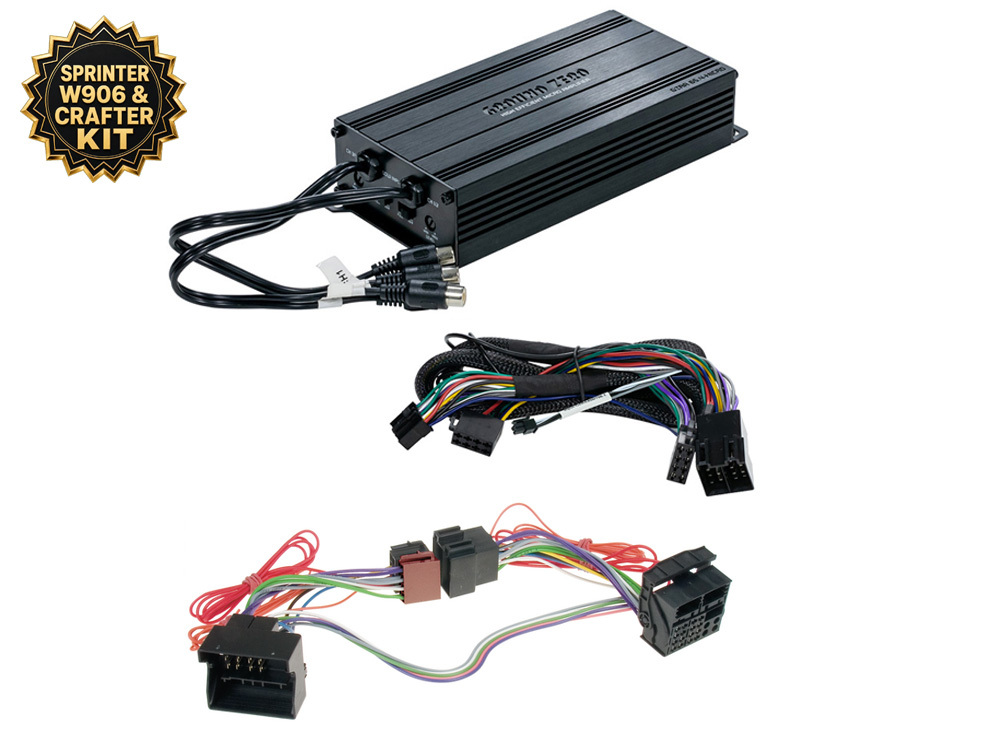

This kit includes ACV T-harness for Mercedes Sprinter W906 and VW Crafter + other Mercedes models ( check compatibility from ″specifications″
• Micro 4-channel ISO-amplifier
• SMD components
• Class D technology
• Fixed high-pass filter for easy setup
• Easy integration of additional mono amplifiers
• Stable power supply
• Compact heatsink with engraved Ground Zero lettering
• High-level input with auto-on function
• Incl. ISO harness + ACV 57-1191 T-harness
This kit includes ACV T-harness for Mercedes Sprinter W906 and VW Crafter + other Mercedes models ( check compatibility from ″specifications″
• Micro 4-channel ISO-amplifier
• SMD components
• Class D technology
• Fixed high-pass filter for easy setup
• Easy integration of additional mono amplifiers
• Stable power supply
• Compact heatsink with engraved Ground Zero lettering
• High-level input with auto-on function
• Incl. ISO harness + ACV 57-1191 T-harness

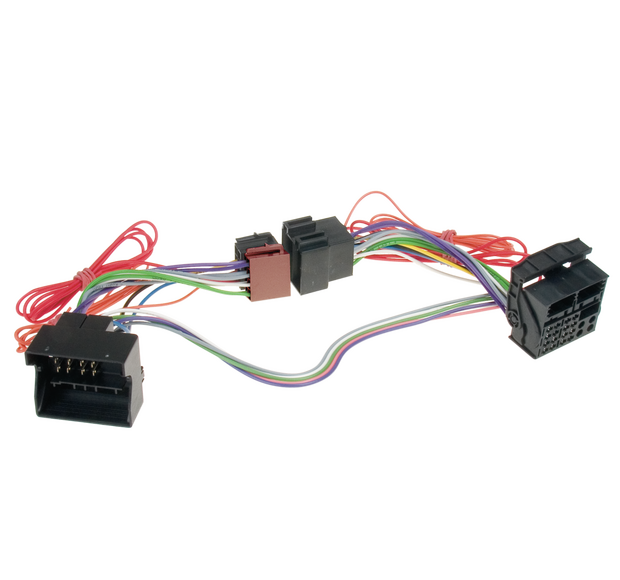

This kit includes ACV 57-1191 T-harness.
Compatibility:
Mercedes-Benz
A-class (C169/W169) 10/2004 – 06/2012
Mercedes B-class (T245) 07/2005 – 09/2011
Mercedes C-class (CL203/S203/W203) 02/2004 – 09/2007
Mercedes C-class (C204/S204/W204) 08/2007 – 10/2015
Mercedes Citan 420 (W420) 10/2021 – 2023
Mercedes CLC-class (CL203) 06/2008 – 02/2011
Mercedes CLK-class (W209) 04/2005 – 01/2010
Mercedes CLS-class (C219) 04/2008 – 09//2010
Mercedes E-class (S211/W211) 03/2008 – 01/2009
Mercedes E-class (A212/C212/S212/W204) 02/2009 – 03/2013
Mercedes G-class (W463) 04/2007 – 06/2008
Mercedes G-class (W164) 09/2008 – 06/2012
Mercedes GL-class (X164) 09/2006 – 07/2012
Mercedes M-class (W164) 07/2005 – 07/2011
Mercedes ML (W164) 07/2005 – 07/2011
Mercedes R-class (W251) 09/2005 – 05/2010
Mercedes SLK-class (R171) 04/2008 -03/2011
Mercedes Sprinter (W906) 04/2006 – 05/2018
Mercedes Sprinter (W907/W910) 06/2018 – 2023
Mercedes Vito/Viano (W639) 04/2006 – 03/2014
Mercedes Vito (V447) 10/2014 – 2023
Smart
For Four (W454) 01/2004 – 04/2007
Volkswagen
Crafter I (2EC/2EK/2F) 03/2006 – 11/2016
Amplifier specs:
Type Class D amplifier
Channels 4
Output Power (@ 4Ω) 4x 65 Watts RMS
Output Power (@ 2Ω) 4x 75 Watts RMS
Output Power (@ 4Ω) bridged 2x 150 Watts RMS
max. Output Power 340 Watts
Frequency Response 10 Hz – 22 kHz
HPF / LPF / BPF ● / ● / ●
Bass Boost / Phase switch ○ / ○
High level input / Auto-on ● / ●
Remote Control ○
BIAS Setting ○
Linkmode ○
Dimensions (w x l x h)
heat sink 82 x 185 x 40 mm / 3.23″ x 7.28″ x 1.57″
Compatibility:
Mercedes-Benz
A-class (C169/W169) 10/2004 – 06/2012
Mercedes B-class (T245) 07/2005 – 09/2011
Mercedes C-class (CL203/S203/W203) 02/2004 – 09/2007
Mercedes C-class (C204/S204/W204) 08/2007 – 10/2015
Mercedes Citan 420 (W420) 10/2021 – 2023
Mercedes CLC-class (CL203) 06/2008 – 02/2011
Mercedes CLK-class (W209) 04/2005 – 01/2010
Mercedes CLS-class (C219) 04/2008 – 09//2010
Mercedes E-class (S211/W211) 03/2008 – 01/2009
Mercedes E-class (A212/C212/S212/W204) 02/2009 – 03/2013
Mercedes G-class (W463) 04/2007 – 06/2008
Mercedes G-class (W164) 09/2008 – 06/2012
Mercedes GL-class (X164) 09/2006 – 07/2012
Mercedes M-class (W164) 07/2005 – 07/2011
Mercedes ML (W164) 07/2005 – 07/2011
Mercedes R-class (W251) 09/2005 – 05/2010
Mercedes SLK-class (R171) 04/2008 -03/2011
Mercedes Sprinter (W906) 04/2006 – 05/2018
Mercedes Sprinter (W907/W910) 06/2018 – 2023
Mercedes Vito/Viano (W639) 04/2006 – 03/2014
Mercedes Vito (V447) 10/2014 – 2023
Smart
For Four (W454) 01/2004 – 04/2007
Volkswagen
Crafter I (2EC/2EK/2F) 03/2006 – 11/2016
Amplifier specs:
Type Class D amplifier
Channels 4
Output Power (@ 4Ω) 4x 65 Watts RMS
Output Power (@ 2Ω) 4x 75 Watts RMS
Output Power (@ 4Ω) bridged 2x 150 Watts RMS
max. Output Power 340 Watts
Frequency Response 10 Hz – 22 kHz
HPF / LPF / BPF ● / ● / ●
Bass Boost / Phase switch ○ / ○
High level input / Auto-on ● / ●
Remote Control ○
BIAS Setting ○
Linkmode ○
Dimensions (w x l x h)
heat sink 82 x 185 x 40 mm / 3.23″ x 7.28″ x 1.57″
