AI-SONIC S2-A65.2
EAN: 6430042126255
S2-A65.2
2-channel amplifier
2 x 105W or 1 x 210W

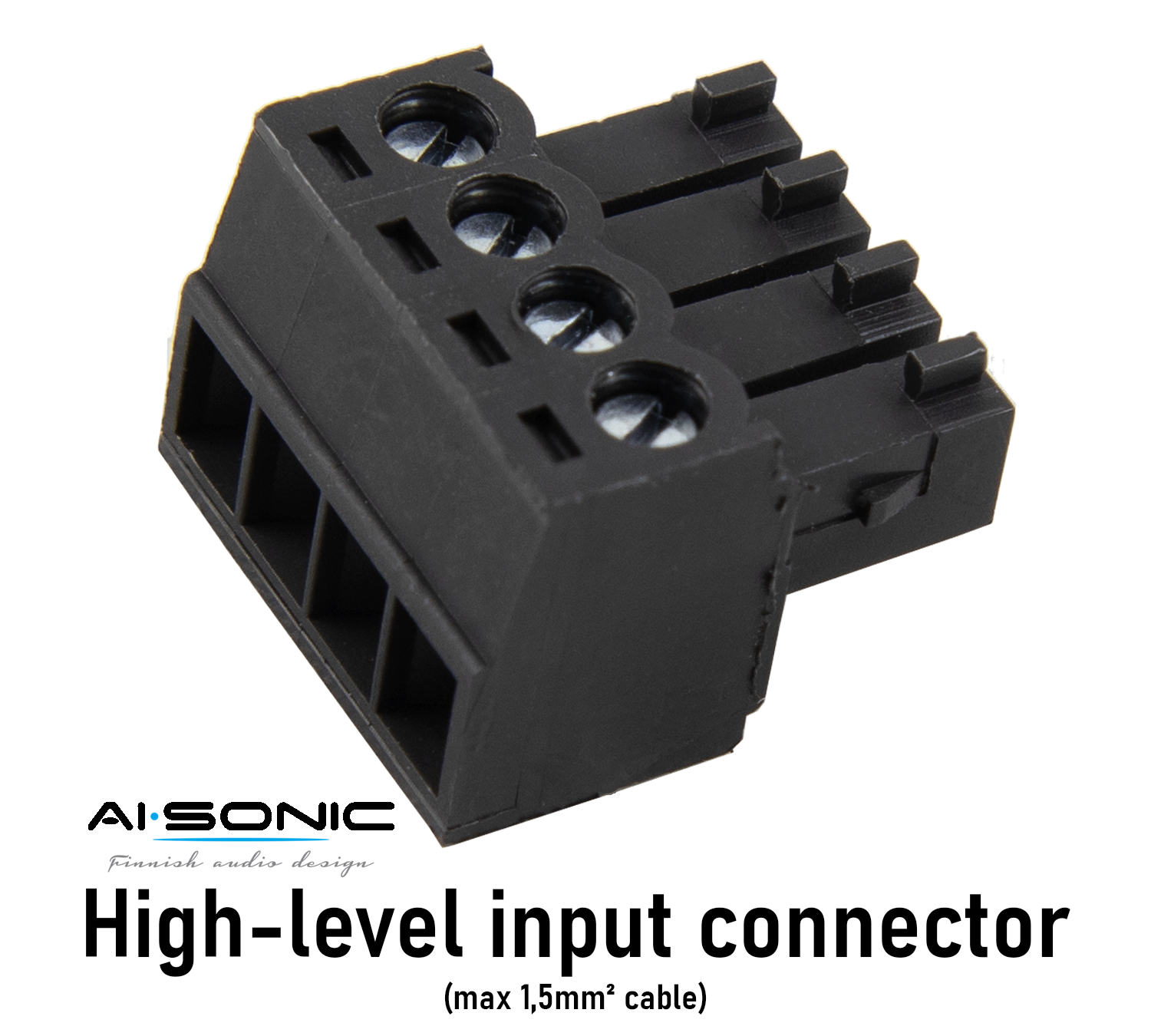

High-Level input
Designed in Finland
Läs Mera
1 590,00 kr
Beskrivning
Teknisk information
Bruksanvisningar
Media

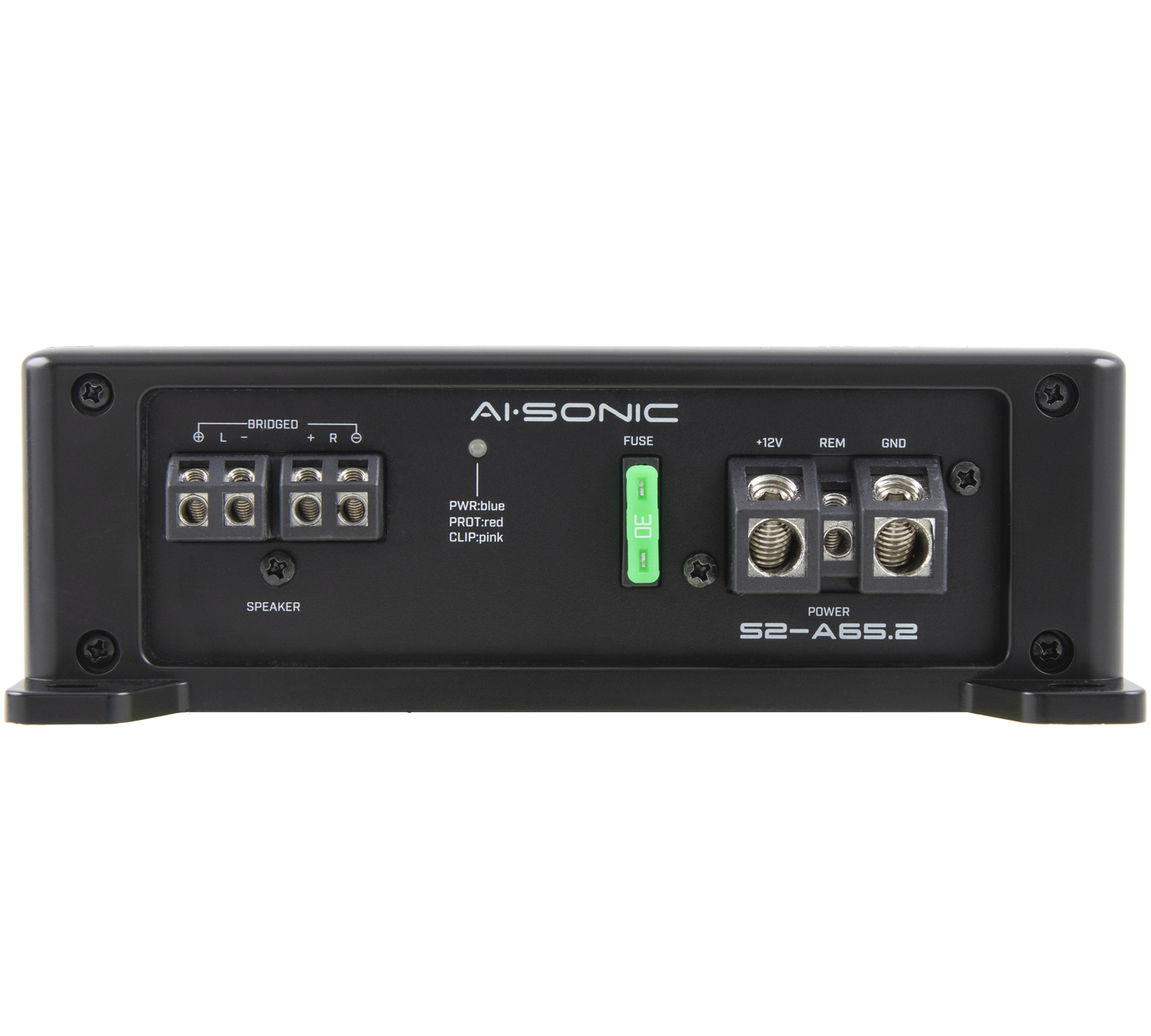

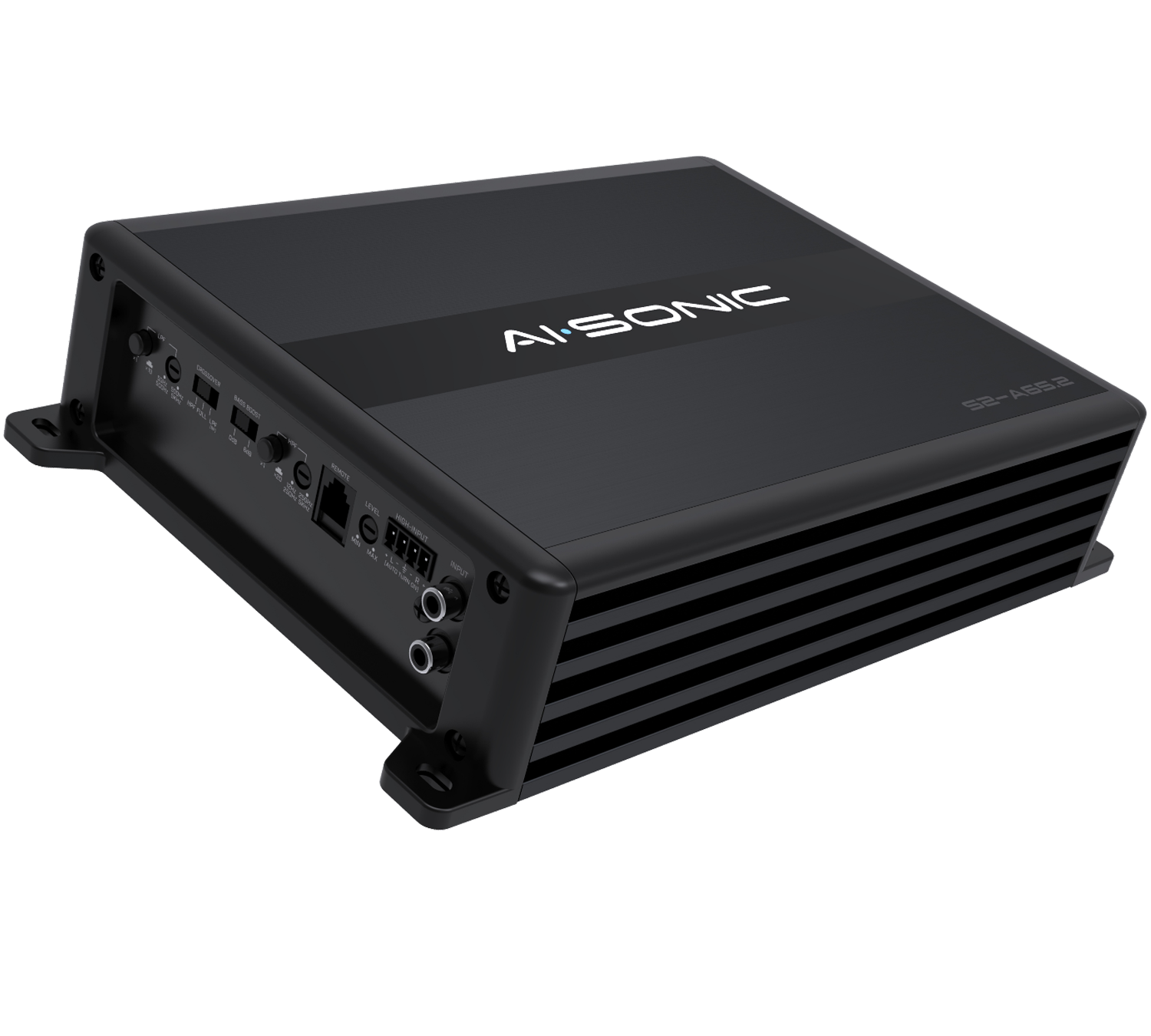

AI-Sonic S2-A65.2 is 2-channel AB class amplifier for users, who want to feel pure sound quality.
Amplifier gives more power as there are mentioned at the specs.
Finished dark cover, which profile is brushed black aluminium.
When amplifier is on. There is indicator light in AI-Sonic logo!
Includes a remote control, which has three different indicator-leds.
(protection, power and clipping)
Designed in Finland.
Amplifier gives more power as there are mentioned at the specs.
Finished dark cover, which profile is brushed black aluminium.
When amplifier is on. There is indicator light in AI-Sonic logo!
Includes a remote control, which has three different indicator-leds.
(protection, power and clipping)
Designed in Finland.
RMS POWER (2ohm) 12v 1%THD 2x105W
RMS POWER (4ohm) 12v 1%THD 2x70 W
BRIDGED POWER(4ohm) 12v 1%THD 1x210W
T.H.D 0,02% 4ohm, 0.04 % 2ohm
BANDWIDTH: 10Hz-40KHz
S/N RATIO (A-WEIGHTED): 105dB
CHANNEL SEPARATION: 45dB
INPUT SENSITIVITY: 0.5-6V

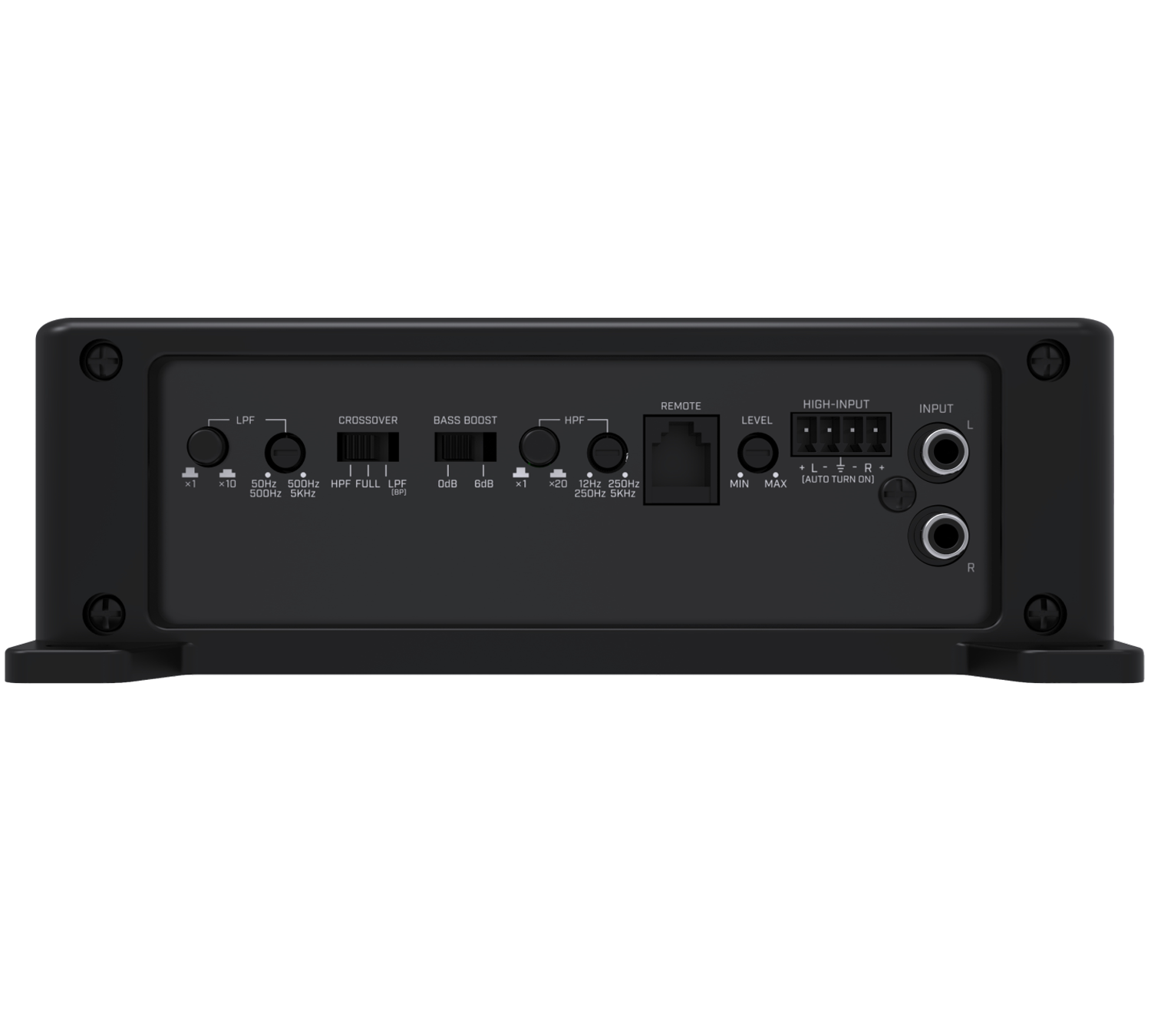

LOW PASS x1: 50Hz-500Hz x10: 500Hz-5KHz
HIGH PASS x1: 12Hz-250Hz x2Q: 250Hz-5KHz
BAND PASS(FRONT ): 12Hz-5KH z
CROSSOVER SLOPE: 12dB/oct
BASS BOOST: 0/6dB(@45Hz)
POWER FUSE: 1x30A
HIGH-LEVEL VOLTAGE: 0.75-9V
Cable fitting size:
+12V = 20mm2
GND = 20mm2
REM = 6mm2
SPEAKER = 6mm2
Current Draw (Max): 25A
DIMENSIONS W: 183mm / (7 .2IN)
H: 60mm / (2.4IN)
L: 274mm / (10.8 IN).
RMS POWER (4ohm) 12v 1%THD 2x70 W
BRIDGED POWER(4ohm) 12v 1%THD 1x210W
T.H.D 0,02% 4ohm, 0.04 % 2ohm
BANDWIDTH: 10Hz-40KHz
S/N RATIO (A-WEIGHTED): 105dB
CHANNEL SEPARATION: 45dB
INPUT SENSITIVITY: 0.5-6V
LOW PASS x1: 50Hz-500Hz x10: 500Hz-5KHz
HIGH PASS x1: 12Hz-250Hz x2Q: 250Hz-5KHz
BAND PASS(FRONT ): 12Hz-5KH z
CROSSOVER SLOPE: 12dB/oct
BASS BOOST: 0/6dB(@45Hz)
POWER FUSE: 1x30A
HIGH-LEVEL VOLTAGE: 0.75-9V
Cable fitting size:
+12V = 20mm2
GND = 20mm2
REM = 6mm2
SPEAKER = 6mm2
Current Draw (Max): 25A
DIMENSIONS W: 183mm / (7 .2IN)
H: 60mm / (2.4IN)
L: 274mm / (10.8 IN).
