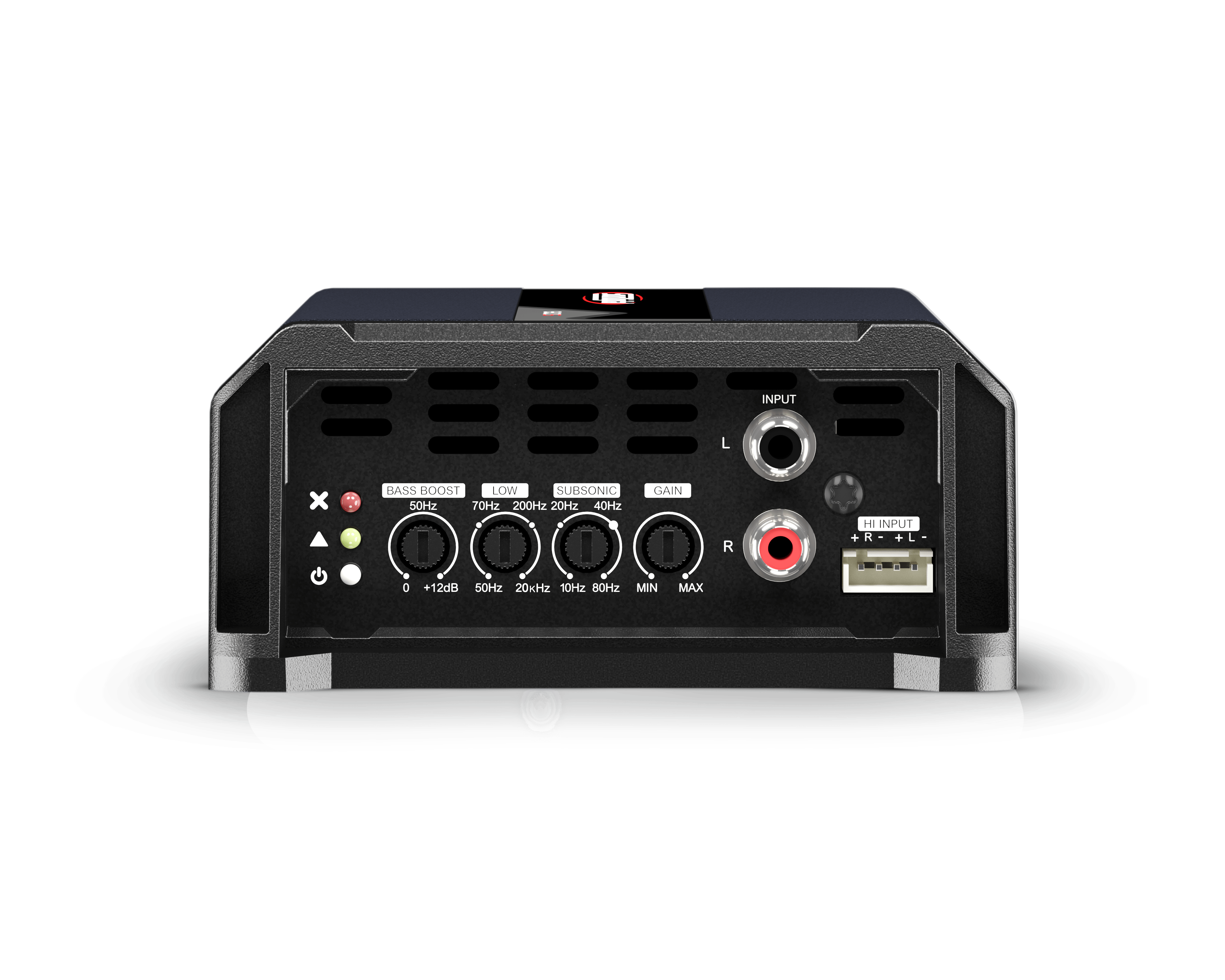

SounDigital 800.1 EVO 5 - 2 Ohm
EAN: 7898644527150
SD800.1-2 EVO5
Mono amplifier
2 Ohm model
800W

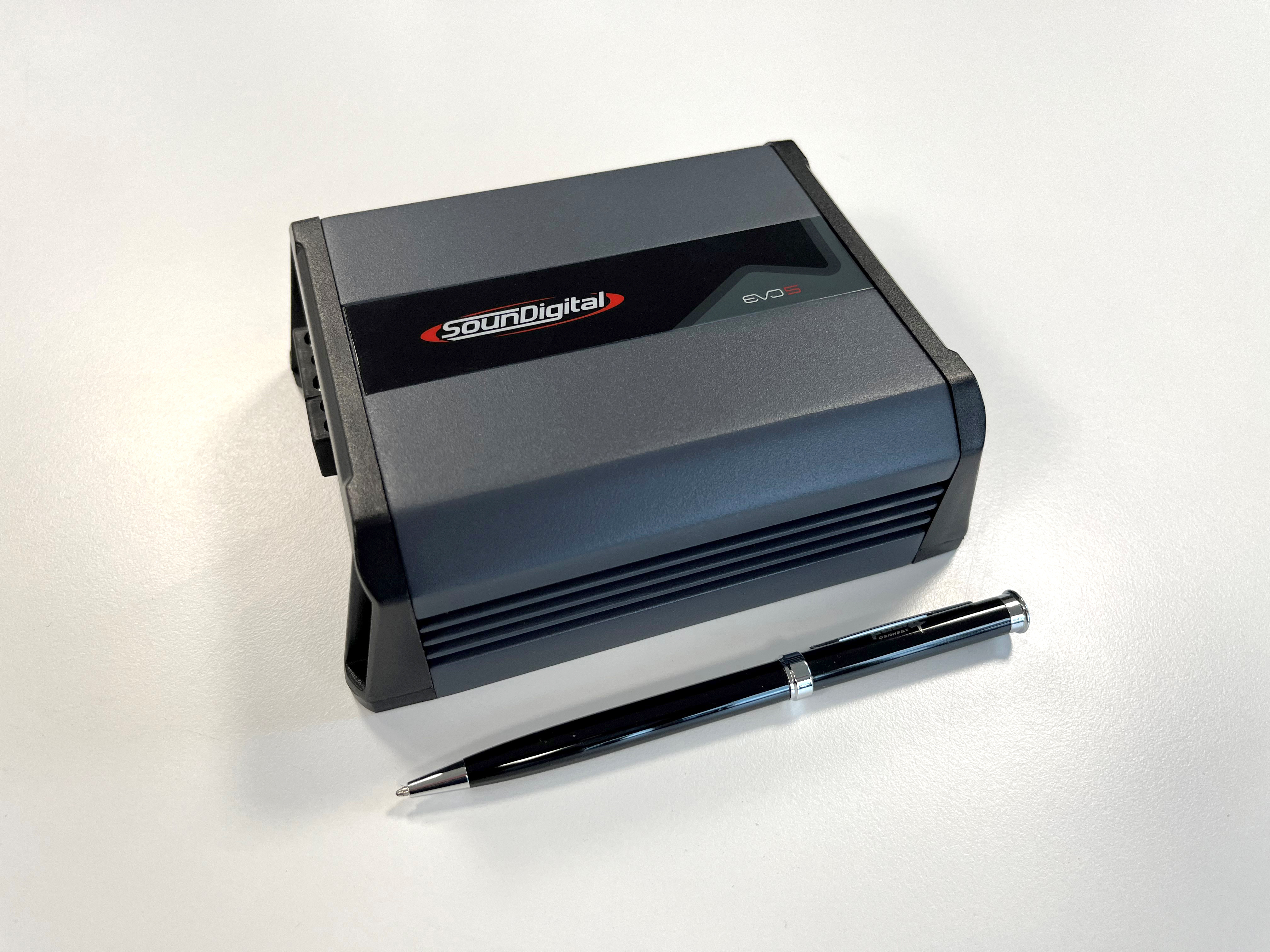

Very small size
High level input
Läs Mera
1 st
1 590,00 kr
Beskrivning
Teknisk information
Bruksanvisningar
The 800.1 EVO 5 is a compact, modern amplifier that delivers 800W RMS of power distributed over 1 channel.
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
Power @ 2Ω: 800W
Power @ 4Ω: 528W
Power @ 8Ω: 348W
Frequency Response:
10Hz ~ 20kHz
Subsonic Filter (HP 12dB/8º):
10Hz ~ 80Hz
Low Pass Filter (LP 12dB/8º):
50Hz ~ 20kHz
Operating Voltage:
8V ~ 16V
SNR:
2Ω: 96dB
4Ω: 97dB
Input Sensitivity (RCA): 0.2V ~ 4V
Input Sensitivity (High Level input): 1.5V ~ 15V
Current Draw (Music): 2Ω: 40A
Current Draw With Resistive Load (1kHz @ 12.6V): 2Ω: 81A
Total Efficiency: 2Ω: 79%
Damping Factor (@100Hz Rated Impedance): 200
Power Cable: 10mm² (7AWG)
Audio Output Cable: 2 x 2mm² (12 AWG)
Recommended Fuse (Music): 40A
Recommended Battery (Music): 60Ah
Width: 4.4 in / 11,3 cm
Length: 5.8 in / 14,8 cm
Height: 2 in / 5,1 cm
Weight: 1.54 lb / 0,7 Kg
