AI-SONIC S2-A2200.1
EAN: 6430042126262
S2-A2200.1
Mono amplifier
2200W
High-Level input
Designed in Finland
Läs Mera
4 490,00 kr
Beskrivning
Teknisk information
Bruksanvisningar

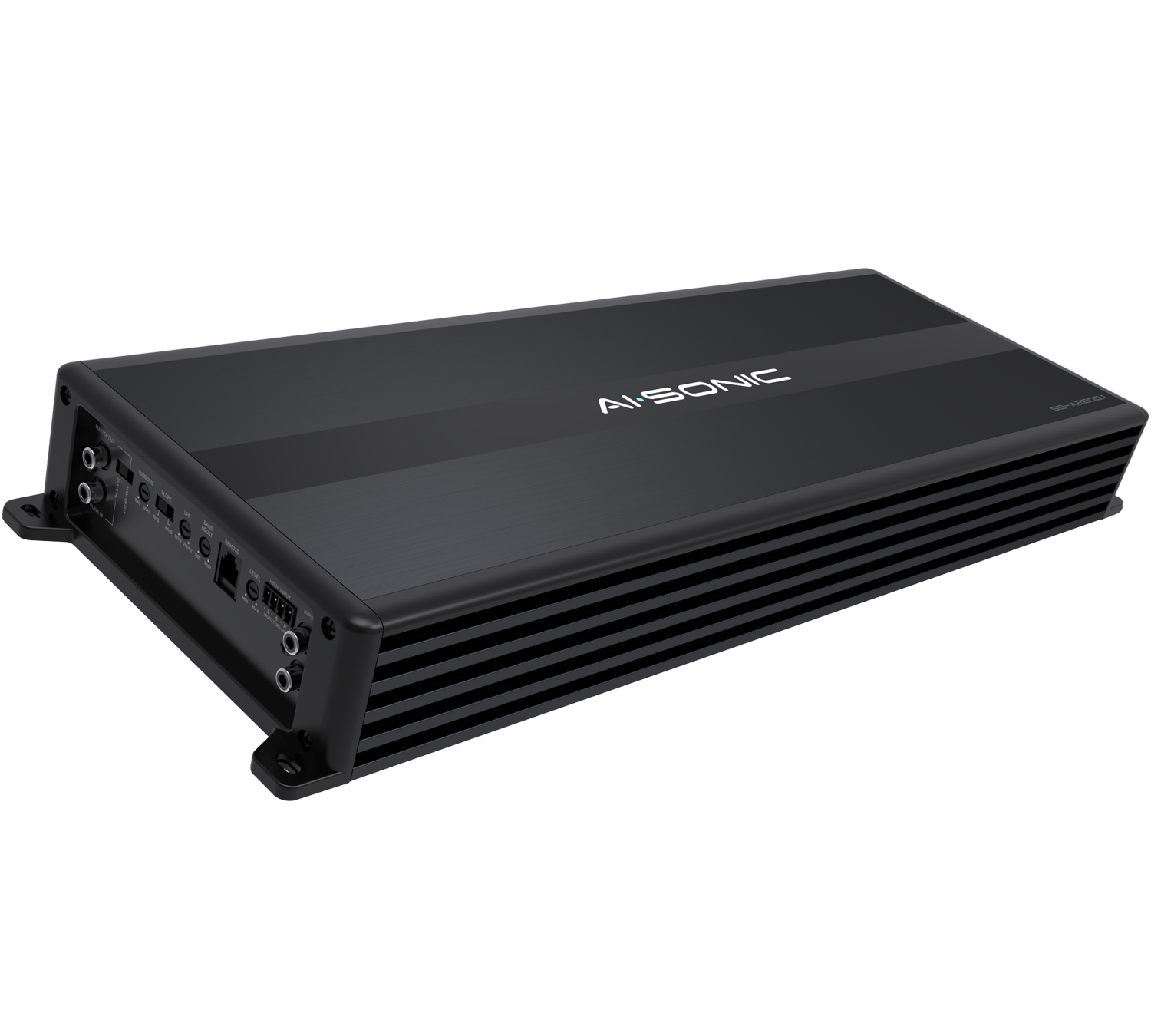

AI-Sonic S2-A2200.1 is mono D class amplifier for users, who want to feel pure sound quality.
Amplifier gives more power as there are mentioned at the specs.
Finished dark cover, which profile is brushed black aluminium.
When amplifier is on. There is indicator light in AI-Sonic logo!
Includes a remote control, which has three different indicator-leds.
(protection, power and clipping)
Designed in Finland.
(Bass level control sold separately.)
Amplifier gives more power as there are mentioned at the specs.
Finished dark cover, which profile is brushed black aluminium.
When amplifier is on. There is indicator light in AI-Sonic logo!
Includes a remote control, which has three different indicator-leds.
(protection, power and clipping)
Designed in Finland.
(Bass level control sold separately.)
RMS POWER (1ohm) 12v THD 0.5% 2200W
RMS POWER (2ohm) 12v THD 0.5% 1400W
RMS POWER (4ohm) 12v THD 0.5% 750W
BRIDGED POWER(2ohm) 12v THD 0.5% 4400 W ( Link )
BRIDGED POWER(4ohm) 12v THD 0.5% 2800W ( Link )
T.H.D: 0.5%
BANDWIDTH: 10-200 Hz
S/N RATIO(A-WEIGHTED): 90dB
INPUT SENSITIVITY: 0.35- 6V
LOW PASS: 50-200 Hz
SUBSONIC: 10-50Hz
CROSSOVER SLOPE: 12dB /24dB/oct
BASS BOOST: 0-12dB(@45 Hz)
POWER FUSE: External 250A
HIGH-LEVEL VOLTAGE: 0.53-9V
Cable fitting size:
+12V = 50mm2
GND = 50mm2
REM = 6mm2
SPEAKER = 20mm2
Current Draw (Max): 250A
DIMENSIONS: W: 183mm / (7.2 IN)
H: 60mm / (2.4 IN)
L: 524mm / ( 20.6 IN).
RMS POWER (2ohm) 12v THD 0.5% 1400W
RMS POWER (4ohm) 12v THD 0.5% 750W
BRIDGED POWER(2ohm) 12v THD 0.5% 4400 W ( Link )
BRIDGED POWER(4ohm) 12v THD 0.5% 2800W ( Link )
T.H.D: 0.5%
BANDWIDTH: 10-200 Hz
S/N RATIO(A-WEIGHTED): 90dB
INPUT SENSITIVITY: 0.35- 6V
LOW PASS: 50-200 Hz
SUBSONIC: 10-50Hz
CROSSOVER SLOPE: 12dB /24dB/oct
BASS BOOST: 0-12dB(@45 Hz)
POWER FUSE: External 250A
HIGH-LEVEL VOLTAGE: 0.53-9V
Cable fitting size:
+12V = 50mm2
GND = 50mm2
REM = 6mm2
SPEAKER = 20mm2
Current Draw (Max): 250A
DIMENSIONS: W: 183mm / (7.2 IN)
H: 60mm / (2.4 IN)
L: 524mm / ( 20.6 IN).
