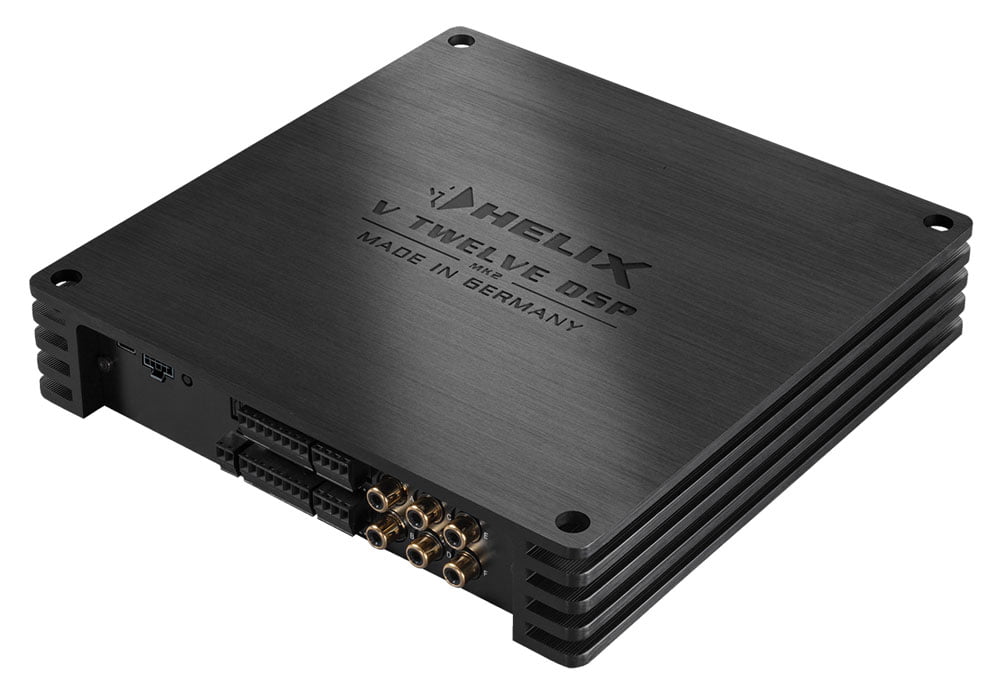

Helix V TWELVE DSP MK2
EAN: 4057204312527
V TWELVE DSP MK2
High Resolution DSP
12 x 120W RMS @ 2 Ohm
14 DSP-channels
12 x Highlevel speaker input
32 bit ACO platform
ADEP.3
Läs Mera
1 st
14 990,00 kr
Beskrivning
Teknisk information
Bruksanvisningar
The king of connectivity
That has never existed before - 12 highlevel inputs, 6 Cinch inputs, 14 DSP channels, 12 output stages with up to 160 RMS at 2 Ohms combined in an ultra-compact housing that has the footprint of just two Envelopes. The new V TWELVE DSP is unmistakeably a technological milestone and the problem solver of Excellence when it comes to upgrading multichannel premium sound systems in today′s vehicles.
That has never existed before - 12 highlevel inputs, 6 Cinch inputs, 14 DSP channels, 12 output stages with up to 160 RMS at 2 Ohms combined in an ultra-compact housing that has the footprint of just two Envelopes. The new V TWELVE DSP is unmistakeably a technological milestone and the problem solver of Excellence when it comes to upgrading multichannel premium sound systems in today′s vehicles.
- @ 4 Ohms75 Watts per channel
- @ 2 Ohms120 Watts per channel
Max. output power per channelUp to 160 Watts RMS @ 2 Ohms
Amplifier technologyPure Class GD

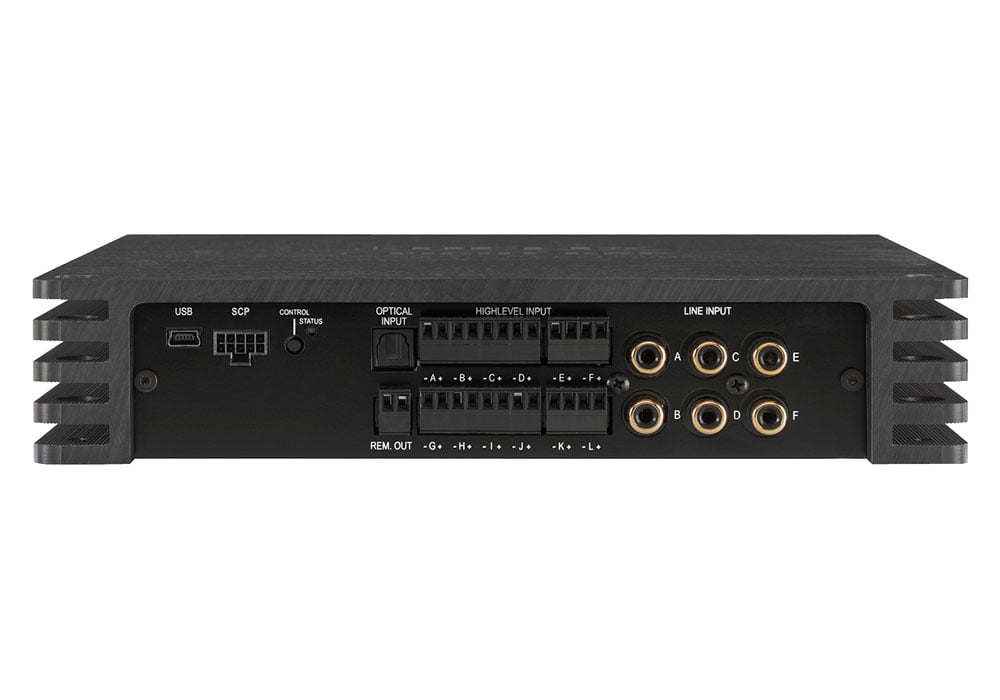

Inputs6 x RCA / Cinch
12 x Highlevel speaker input
1 x Optical SPDIF (12 - 96 kHz)
1 x Remote In
Input sensitivityRCA / Cinch max. 4 V or max. 8 V
Highlevel max. 16 V or max. 32 V
Input impedance RCA / Cinch12 kOhms
Input impedance highlevel9 - 33 Ohms or 20 kOhms

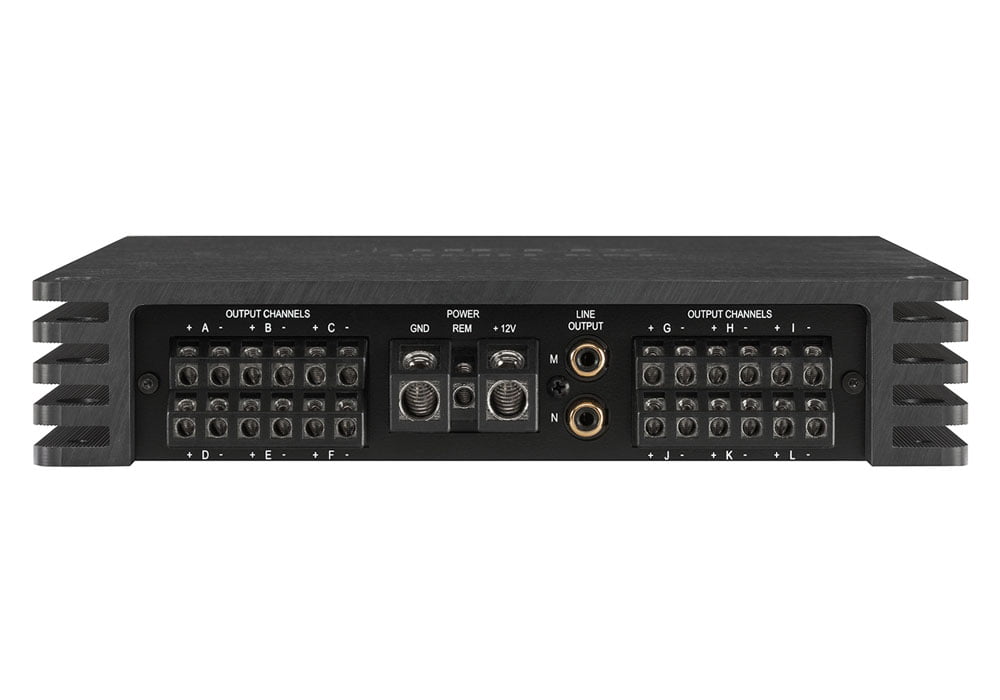

Outputs12 x Speaker output
2 x RCA / Cinch
2 x Remote Out
Output voltage RCA / Cinch3 Volts RMS
Frequency response20 Hz - 22,000 Hz
DSP resolution64 Bit
DSP power295 MHz (1.2 billion MAC operations/second)
Sampling rate48 kHz
DSP typeAudio signal processor
Signal convertersA/D: AKM 32 Bit
D/A: AKM 32 Bit
Signal-to-noise ratio digital input107 dB (A-weighted)
Signal-to-noise ration analog input102 dB (A-weighted)
Distortion (THD) 0.015 %
Damping factor 70
Operating voltage10.5 - 16 Volts (max. 5 sec.down to 6 Volts)
Idle current700 mA
Max. remote output current500 mA
Fuse2 x 30 A LP-Mini-fuse (APS)
Additional featuresHEC slot, ADEP.3 circuit, Auto Remote switch, 32 Bit CoProcessor, Control Input
Dimensions (H x W x D)44 x 220 x 220 mm.
- @ 2 Ohms120 Watts per channel
Max. output power per channelUp to 160 Watts RMS @ 2 Ohms
Amplifier technologyPure Class GD
Inputs6 x RCA / Cinch
12 x Highlevel speaker input
1 x Optical SPDIF (12 - 96 kHz)
1 x Remote In
Input sensitivityRCA / Cinch max. 4 V or max. 8 V
Highlevel max. 16 V or max. 32 V
Input impedance RCA / Cinch12 kOhms
Input impedance highlevel9 - 33 Ohms or 20 kOhms
Outputs12 x Speaker output
2 x RCA / Cinch
2 x Remote Out
Output voltage RCA / Cinch3 Volts RMS
Frequency response20 Hz - 22,000 Hz
DSP resolution64 Bit
DSP power295 MHz (1.2 billion MAC operations/second)
Sampling rate48 kHz
DSP typeAudio signal processor
Signal convertersA/D: AKM 32 Bit
D/A: AKM 32 Bit
Signal-to-noise ratio digital input107 dB (A-weighted)
Signal-to-noise ration analog input102 dB (A-weighted)
Distortion (THD) 0.015 %
Damping factor 70
Operating voltage10.5 - 16 Volts (max. 5 sec.down to 6 Volts)
Idle current700 mA
Max. remote output current500 mA
Fuse2 x 30 A LP-Mini-fuse (APS)
Additional featuresHEC slot, ADEP.3 circuit, Auto Remote switch, 32 Bit CoProcessor, Control Input
Dimensions (H x W x D)44 x 220 x 220 mm.
