Audiotec Fischer AMI
EAN: 4057204355487
AMI
Microphone input compatible with all condenser microphones
Adjustable gain and phantom power
Line input with adjustable sensitivity
Supports ATM (Automatic Time Measurement)
Läs Mera
1 st
1 690,00 kr
Beskrivning
Teknisk information
Bruksanvisningar

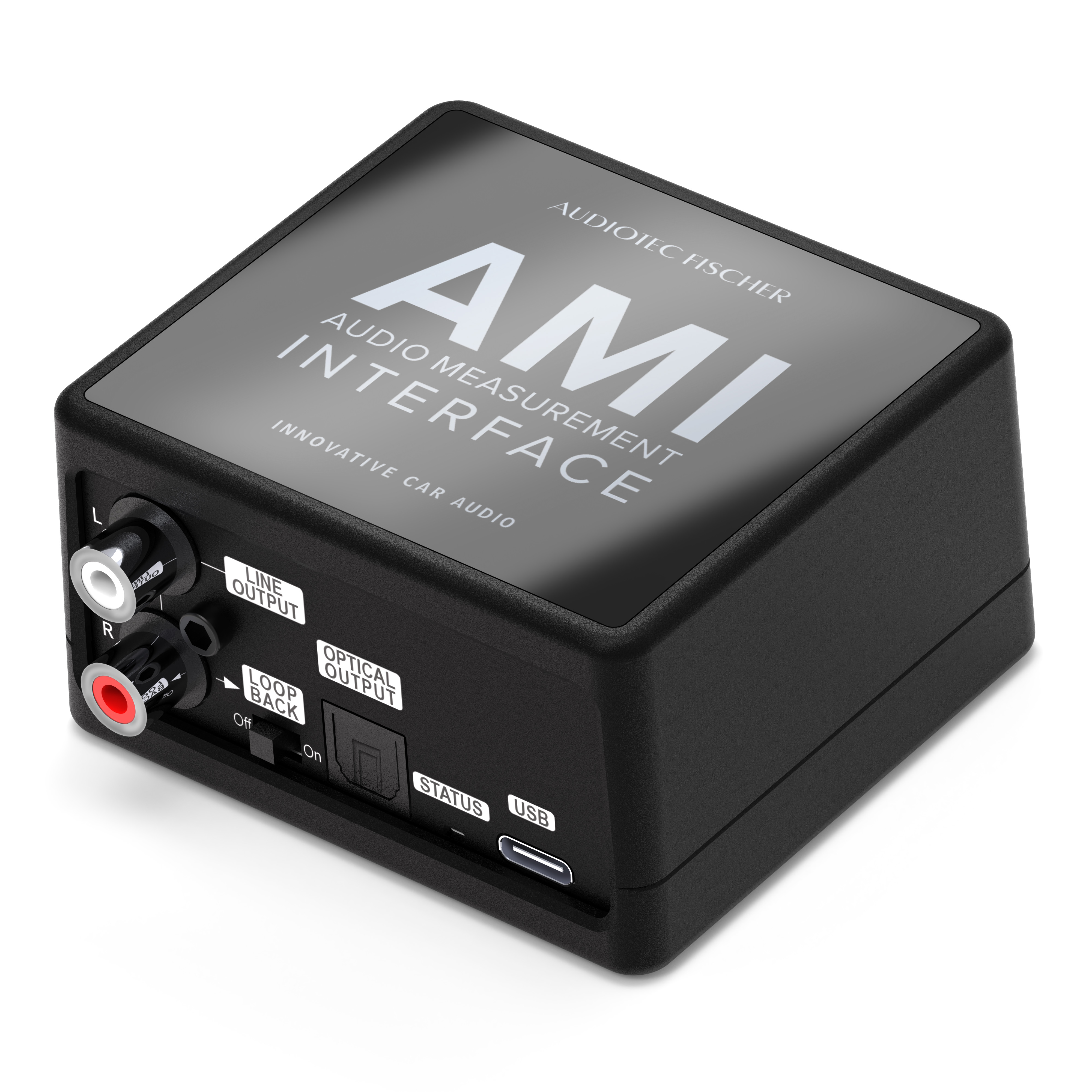

AMI – Precision made practical
The AMI (Audio Measurement Interface) is the precision tool of choice for analyzing both electrical and acoustic signals – and the ideal companion for anyone who demands maximum accuracy and seamless integration within DSP-based audio systems. Designed as a compact yet versatile interface, it provides all essential functions required for precise signal evaluation, system tuning, and optimization – fully tailored to the capabilities of our DSP PC-Tool software.
Flexible signal access for every scenario
The AMI features a microphone input compatible with all condenser microphones, including adjustable gain and switchable phantom power – ideal for professional acoustic measurement. A dedicated line input with switchable sensitivity (max. 1 V or 40 V) ensures accurate analysis of both low- and highlevel signals. Stereo signal output is available via RCA or optical digital connection for direct playback into a DSP. The integrated loopback function opens up advanced measurement options, such as precise phase response and more complex signal path evaluations.
Made to match: Seamless integration with DSP PC-Tool
Developed for full compatibility with the Audiotec Fischer DSP PC-Tool, the AMI becomes a powerful measurement device that unlocks the full potential of our software‘s tuning features. This includes the Advanced Input Signal Analyzer (AISA) for the detection and correction of factory-applied EQ curves, time alignment and allpass filters, as well as Real-Time Analyzer (RTA) support for precise frequency response measurements and automated tuning via our proprietary TuneEQ algorithm. The AMI also supports Automatic Time Measurement (ATM) for fully automated speaker delay calibration – delivering perfect timing and imaging across all channels.
Ready to go – right out of the box
The AMI operates via USB and requires no external power supply, ensuring maximum mobility and ease of use. The scope of delivery includes a premium 3 m / 9.85’ USB-C cable with USB-A adaptor, an RCA-to-Highlevel signal connector, and a 16 GB USB 3.0 flash drive with preinstalled DSP tuning tracks. Fully compatible with Windows 10 & 11, macOS, Android, and iOS, and supporting ASIO drivers for professional audio applications, the AMI is a plug-and-play solution designed for accurate results – wherever your setup takes you.
Features:
Microphone input compatible with all condenser microphones, featuring adjustable gain and phantom power
Line input with adjustable sensitivity (max. 1 V or 40 V) for low- and highlevel signal analysis
Stereo signal output with RCA and optical digital outputs for direct playback into a DSP
Loopback functionality for phase response and other advanced measurement tasks
USB-powered operation, no external power supply required
Optimized for Audiotec Fischer´s DSP PC-Tool – Seamlessly integrates for precise analysis and tuning
Works with AISA (Advanced Signal Input Analyzer) to detect and correct factory-installed allpass filters, time alignment and equalization in DSP input signals
Compatible with RTA (Real-Time Analyzer) for accurate frequency response measurements and automatic equalization using the proprietary TuneEQ algorithm
Supports ATM (Automatic Time Measurement) for fully automated speaker time-delay calibration
Ready to use – Including all essentials
Includes a 3 m / 9.85’ USB-C cable with USB-A adaptor & a RCA-to-Highlevel connector
16 GB USB 3.0 flash drive with preloaded DSP tuning tracks
Compatible with Windows 10 & 11, macOS, Android, and iOS
Supports ASIO drivers for advanced audio applications
The AMI (Audio Measurement Interface) is the precision tool of choice for analyzing both electrical and acoustic signals – and the ideal companion for anyone who demands maximum accuracy and seamless integration within DSP-based audio systems. Designed as a compact yet versatile interface, it provides all essential functions required for precise signal evaluation, system tuning, and optimization – fully tailored to the capabilities of our DSP PC-Tool software.
Flexible signal access for every scenario
The AMI features a microphone input compatible with all condenser microphones, including adjustable gain and switchable phantom power – ideal for professional acoustic measurement. A dedicated line input with switchable sensitivity (max. 1 V or 40 V) ensures accurate analysis of both low- and highlevel signals. Stereo signal output is available via RCA or optical digital connection for direct playback into a DSP. The integrated loopback function opens up advanced measurement options, such as precise phase response and more complex signal path evaluations.
Made to match: Seamless integration with DSP PC-Tool
Developed for full compatibility with the Audiotec Fischer DSP PC-Tool, the AMI becomes a powerful measurement device that unlocks the full potential of our software‘s tuning features. This includes the Advanced Input Signal Analyzer (AISA) for the detection and correction of factory-applied EQ curves, time alignment and allpass filters, as well as Real-Time Analyzer (RTA) support for precise frequency response measurements and automated tuning via our proprietary TuneEQ algorithm. The AMI also supports Automatic Time Measurement (ATM) for fully automated speaker delay calibration – delivering perfect timing and imaging across all channels.
Ready to go – right out of the box
The AMI operates via USB and requires no external power supply, ensuring maximum mobility and ease of use. The scope of delivery includes a premium 3 m / 9.85’ USB-C cable with USB-A adaptor, an RCA-to-Highlevel signal connector, and a 16 GB USB 3.0 flash drive with preinstalled DSP tuning tracks. Fully compatible with Windows 10 & 11, macOS, Android, and iOS, and supporting ASIO drivers for professional audio applications, the AMI is a plug-and-play solution designed for accurate results – wherever your setup takes you.
Features:
Microphone input compatible with all condenser microphones, featuring adjustable gain and phantom power
Line input with adjustable sensitivity (max. 1 V or 40 V) for low- and highlevel signal analysis
Stereo signal output with RCA and optical digital outputs for direct playback into a DSP
Loopback functionality for phase response and other advanced measurement tasks
USB-powered operation, no external power supply required
Optimized for Audiotec Fischer´s DSP PC-Tool – Seamlessly integrates for precise analysis and tuning
Works with AISA (Advanced Signal Input Analyzer) to detect and correct factory-installed allpass filters, time alignment and equalization in DSP input signals
Compatible with RTA (Real-Time Analyzer) for accurate frequency response measurements and automatic equalization using the proprietary TuneEQ algorithm
Supports ATM (Automatic Time Measurement) for fully automated speaker time-delay calibration
Ready to use – Including all essentials
Includes a 3 m / 9.85’ USB-C cable with USB-A adaptor & a RCA-to-Highlevel connector
16 GB USB 3.0 flash drive with preloaded DSP tuning tracks
Compatible with Windows 10 & 11, macOS, Android, and iOS
Supports ASIO drivers for advanced audio applications

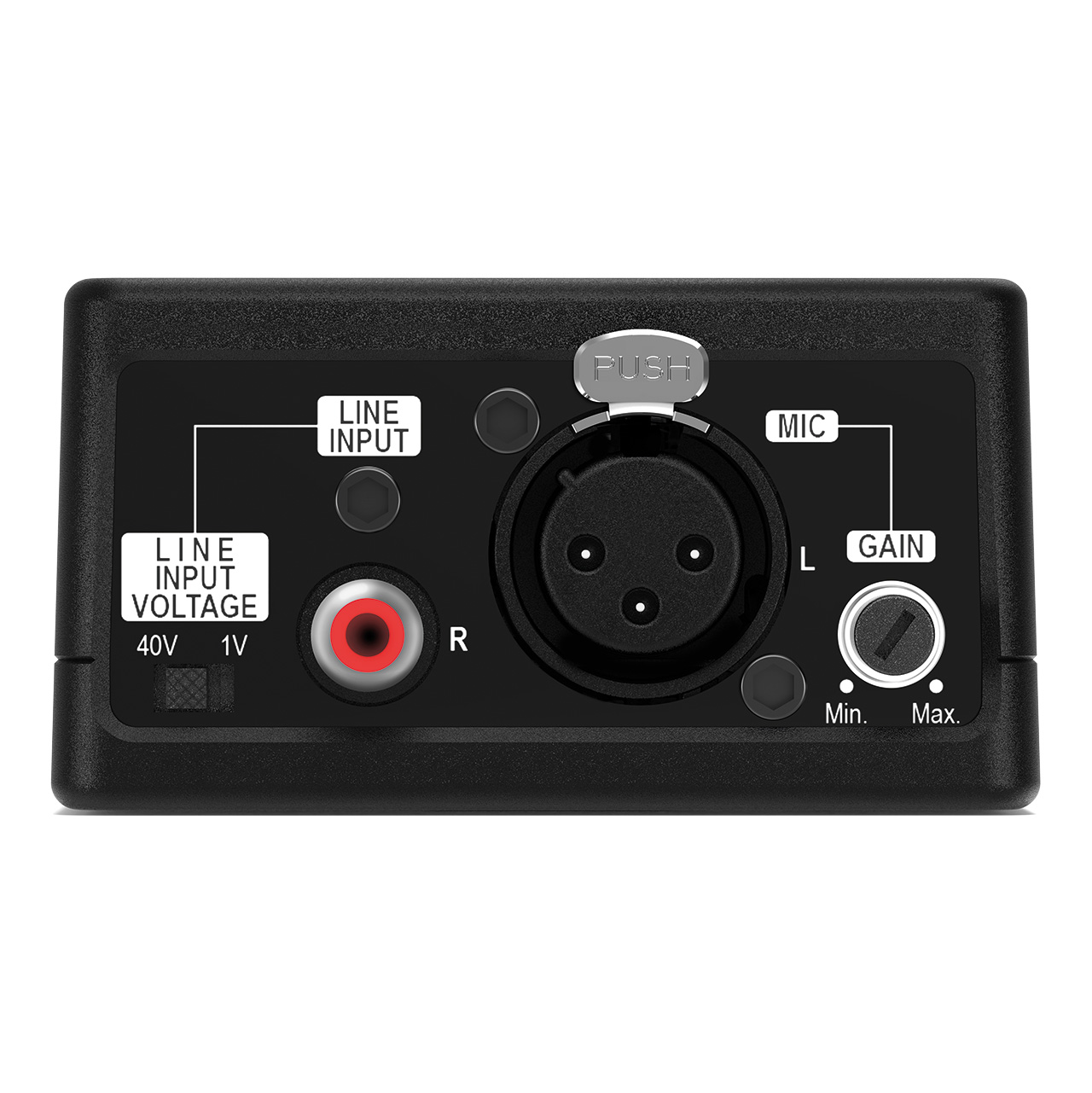

Inputs:1 x Microphone input
1 x Line input
Microphone input specification
Frequency response:
12 Hz - 44 kHz (+/-1 dB)
Dynamic range:
95 dB (A-weighted)
Input sensitivity:
5 - 200 mV
Phantom power:
Yes (24 Volts)
Line input specification
Frequency response:
8 Hz - 44 kHz (+/-1 dB)
Dynamic range:
101 dB (A-weighted)
Input sensitivity:
max. 1 V / max. 40 V
Input impedance:
10 kOhms

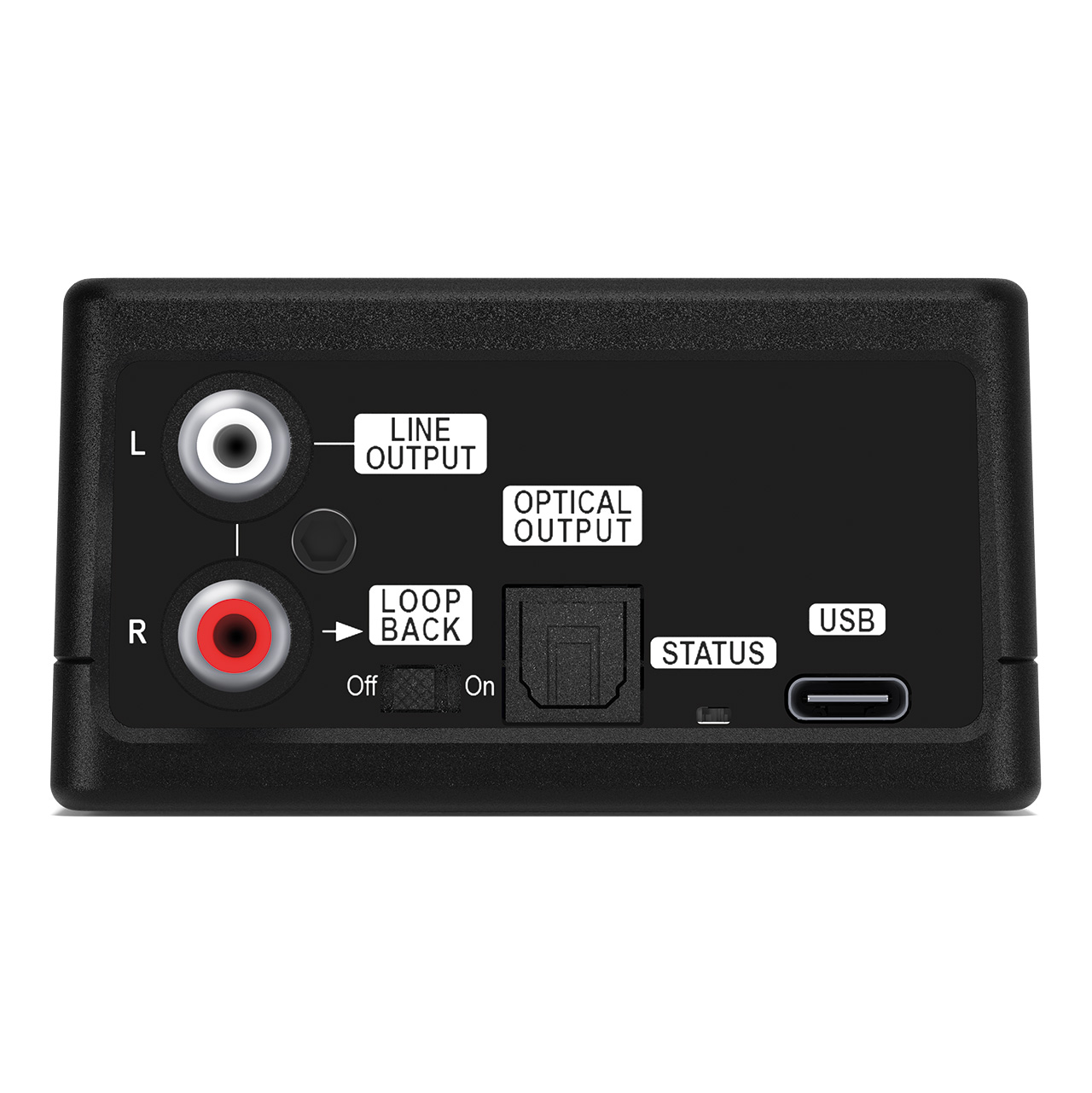

Outputs:
2 x Line output
1 x Optical output (SPDIF)
Line output specification
Frequency response:
7 Hz - 44 kHz (+/-1 dB)
Dynamic range:
100 dB (A-weighted)
Maximum output voltage:
900 mV (RMS)
Minimum load:
5 kOhms
Loopback function:
Yes
General specification
Audio sampling rate:
96 kHz / 32 Bit
USB power consumption:
max. 250 mA
Supported operating systems:
Windows, macOS, iOS and Android
Compatibility
DSP PC-Tool 6
DSP PC-Tool 5
DSP PC-Tool 4

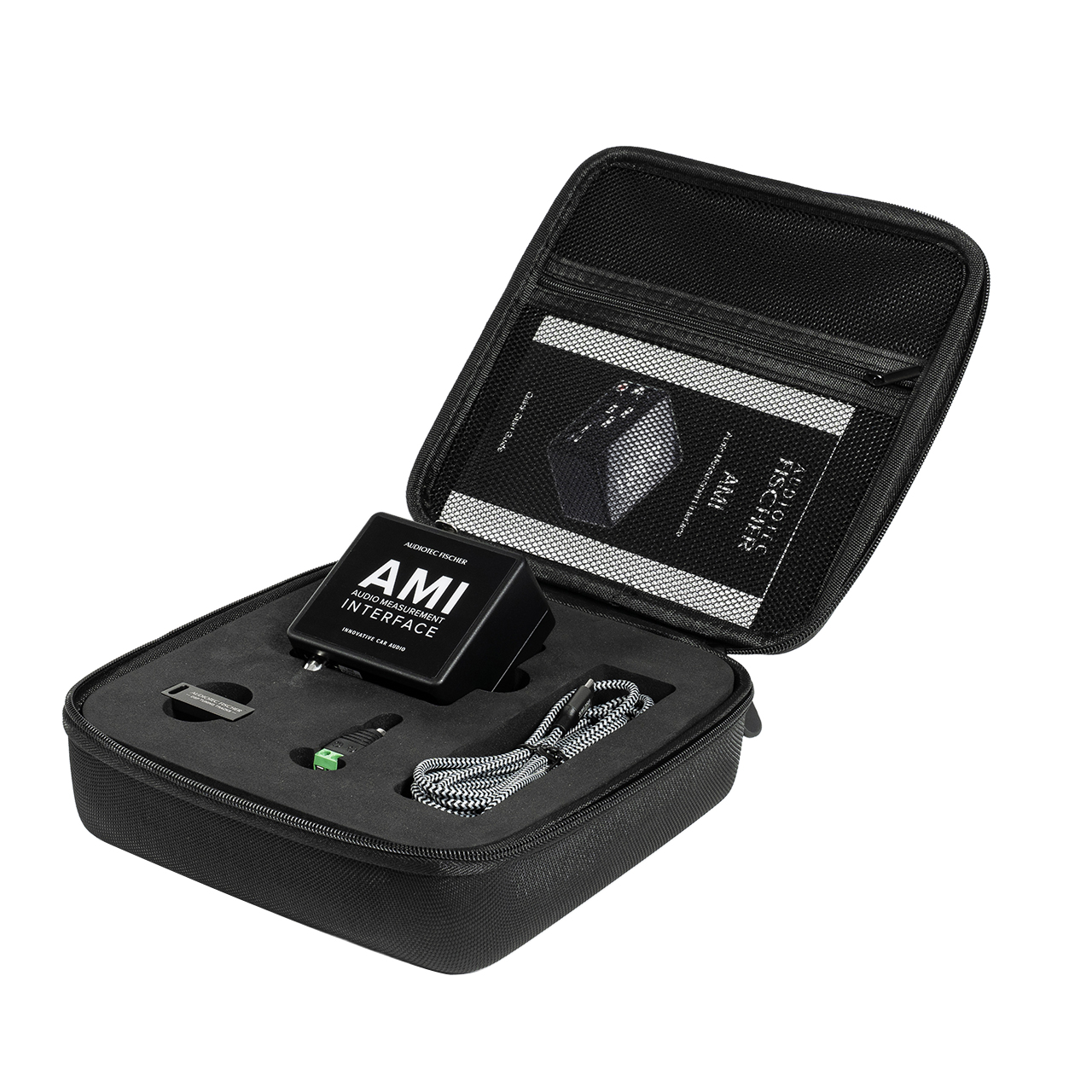

Scope of delivery
1 x AMI (Audio Measurement Interface)
1 x 3.0 m / 9.85’ USB-C to USB-C cable with USB-A adaptor
1 x RCA-to-Highlevel adaptor
1 x 16 GB USB 3.0 flash drive with DSP tuning tracks
