Helix Compose i5 - Ci5 W165FM-S3

EAN: 4057204326210
Ci5 W165FM-S3

6.5″ midbass
FlexMount compatible
3 Ohm
175W

Läs Mera
par
2 290,00 kr
Vikt: 3.10 kg
Tillfälligt slut
Frågor? Kontakta ossinfo(at)audioimport.fi
Beskrivning
Teknisk information
Bruksanvisningar
HELIX COMPOSE. The perfect speaker for any composition. 
Born out of the increasingly demanding challenges of modern automobile technology and the HELIX-typical pursuit of intelligent solutions, we made the progressive redesign of proven universal speaker systems our mission. The result: our innovative HELIX COMPOSE platform that, according to the motto ″developed inside the vehicle, for the vehicle″, combines classic universal speakers with the advantages of vehicle-specific systems. Innovative materials and the latest technologies paired with smart, practical engineering – the best of both worlds in harmony: high efficiency, fantastic sound quality and enormous dynamics that fit in any vehicle. HELIX COMPOSE – universal speakers evolved.

The Sound Sensation for sophisticated music lovers 
The HELIX COMPOSE i5 series is the link between i7 and i3, created for sophisticated music lovers with a sparked ambition for a true hi-fi experience. A lovechild of phenomenal sound and unmatched practicality: Developed with the vision of unique speaker highlights that are also true problem solvers. All speaker impedances are perfectly matched for the combination with our HELIX and MATCH amplifiers, guaranteeing maximum performance at any time. In addition, we implemented our COMPOSE-exclusive mechanical technologies that offer unbeatable practical benefits. 

High efficiency
HELIX COMPOSE equals smart engineering and accordingly implements highly efficient 3 Ohm technology, that perfectly harmonizes with all HELIX and MATCH amplifiers and at the same time allows a clearly perceptible plus in efficiency and maximum sound pressure.

Versatility at its finest

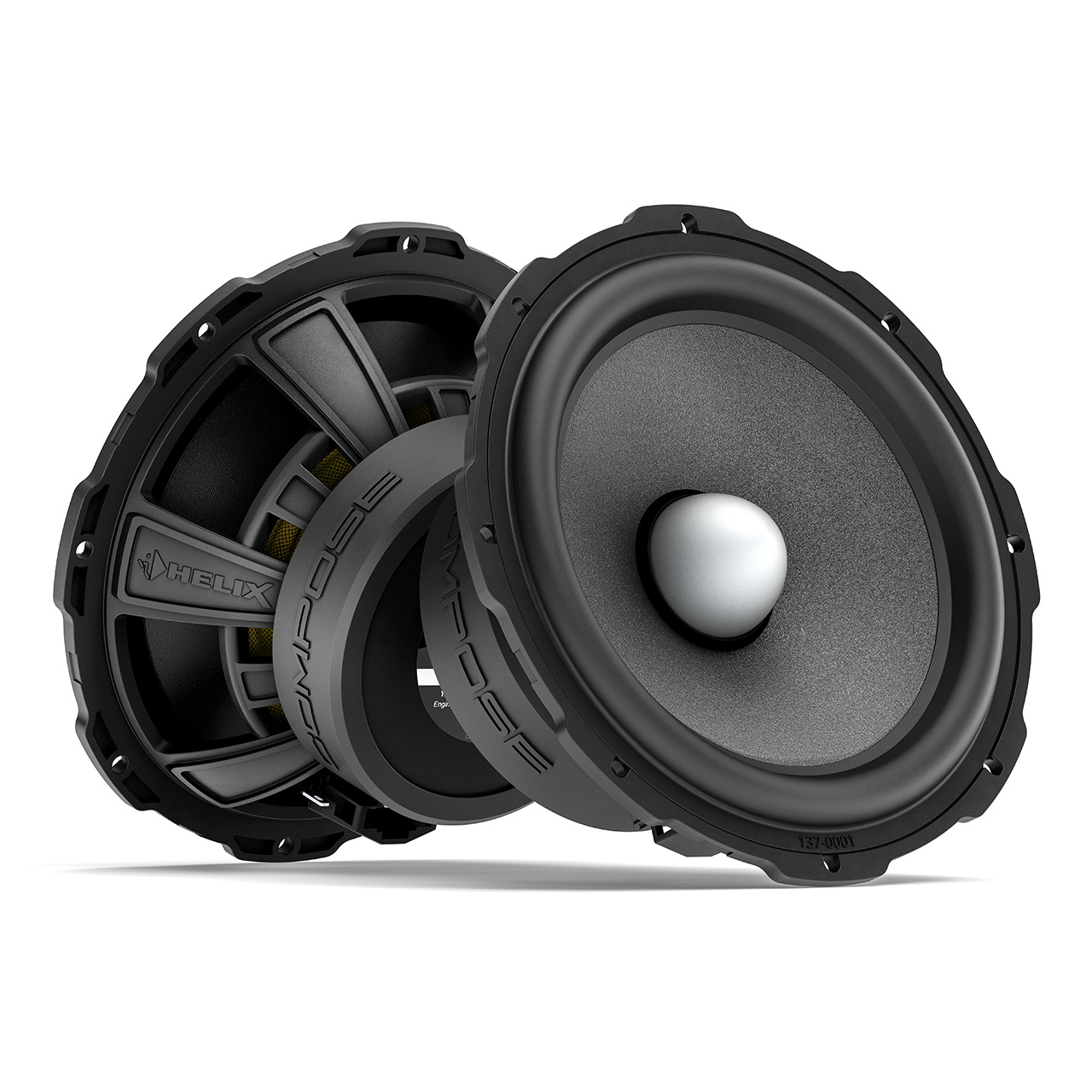

The Ci5 W165FM-S3 midbass is a true all-rounder within the COMPOSE platform. With its finely tuned acoustic design, it effortlessly adapts to both classic two-way setups and more complex three-way configurations. A key element of this versatility is the precisely engineered phase plug, which not only reduces mechanical compression and supports more even sound dispersion, but also significantly enhances the impulse response in the upper midrange. Matched in color to the dome of the Ci5 T25FM-CA tweeter, it creates a visually cohesive pairing – ideal for systems where sonic excellence and aesthetic harmony go hand in hand. The lightweight yet exceptionally rigid paper cone features a premium silicon coating, allowing for an impressively low resonance frequency while extending the upper midrange performance. The result is a loudspeaker that excels in every discipline – with precision, dynamics, and a clear focus on musical expression.

High-tech polymer basket
All HELIX COMPOSE i7 and i3 speaker baskets are made of a high-tech polymer composite, which has been additionally reinforced with glass spheres. The result: maximum stability with minimal self-resonance, while also eliminating flux modulation of the magnetic system and maximum resistance to thermal influences. Last but not least, this allows for much more compact basket dimensions and thus simplified installations in cramped installation conditions.

FlexMount165 – Universal meets car-specific
FlexMount is a mounting system based on specially developed adaptor rings, allowing the installation of COMPOSE FlexMount speakers in an almost infinite number of vehicles. Thus, the universal loudspeaker effortlessly becomes a vehicle-specific loudspeaker, that can be easily installed in the original installation position of the vehicle in an acoustically optimized way with the matching FlexMount adaptor ring.
Technical data
Power handling RMS / Max. P
125 / 175 Watts
Impedance Z 3 Ω
DC resistance Re 3.1 Ω
Frequency response 50 Hz - 5,000 Hz
Resonance frequency Fs 50 Hz
Mechanical Q factor Qms 2.38
Electrical Q factor Qes 0.50
Total Q factor Qts 0.41
Compliance Cms 742 µm/N
Equivalent air volume Vas 17.9 L
Force factor B*I 5.2 Tm
Sensitivity SPL 92 dB @ 2.83 V / 1m
88 dB @ 1W / 1m
Cone area Sd 131 cm²
Moving mass Mms 14.0 g
Cone material Silicon coated paper cone
Mechanical resistance Rms 1.83 kg/s
Voice coil diameter ø 37 mm
Voice coil winding height 13.7 mm
Max. linear excursion Xmax +/- 3.9 mm
Outer diameter ø 165 mm / 6.5″
Installation diameter ø 142 mm / 5.59″
Installation depth 66.8 mm / 2.63″
Features ProConnect terminal,
FlexMount165
Compatibility
FlexMount165
WireKits

Scope of delivery
2 x Ci5 W165FM-S3
2 x Mounting material
