ACV 621320-26-1 2-DIN Kit with pocket MAN TGE/VW Crafter/Grand California
EAN: 4026724340907
621320-26-1
MAN TGE/ VW Crafter1/2-DIN installation kit
Compatible: VW Crafter II
Compatible: VW Grand California
Compatible: MAN TG
Läs Mera
1 st
3 009,90 kr
Beskrivning
Teknisk information

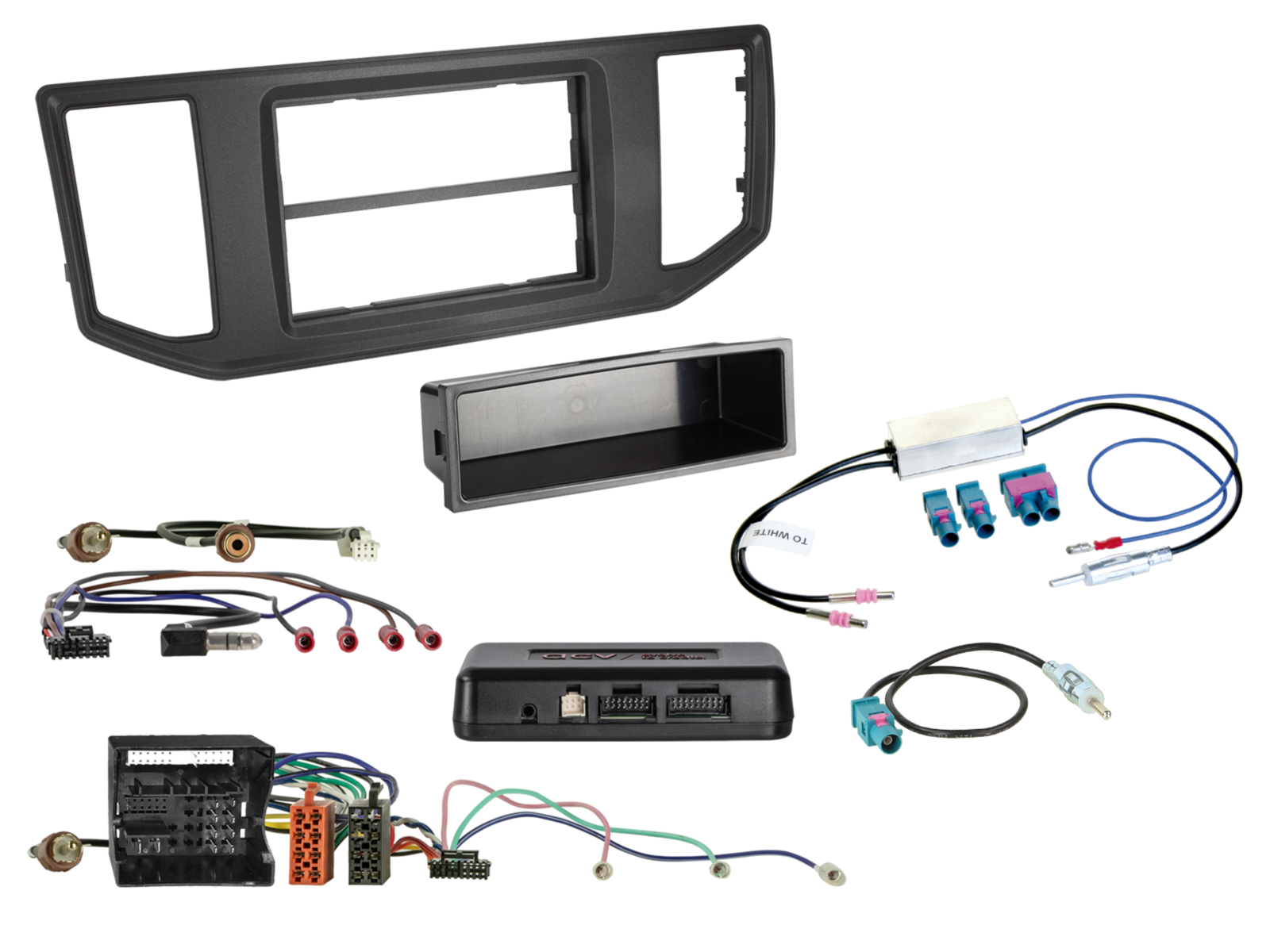

Facia plate 2-DIN with pocket and HU connector kit i-dapter MAN TGE / VW
Many car manufacturers install car specific head units to fit the optical picture of the dashboard.
Installation kits include all components for replacing an OEM HU.
Depending on the vehicle′s equipment, all adapters and interfaces required to operate the retrofit device and restore vehicle functions are included in the scope of delivery.
Check the installation recommendations for the individual components.
Please check the OEM HU and vehicle settings for available settings bevore installation.
Note that in some cases not all functions are supported.
For example Trailer Assist, E Call or other driver assistance and comfort systems.
Also check our listed OEM head units and compare the pictured harness connectors with the connectors in your car and make sure that they fit optically and technically.
Finaly check all functions bevor final installation.
Many car manufacturers install car specific head units to fit the optical picture of the dashboard.
Installation kits include all components for replacing an OEM HU.
Depending on the vehicle′s equipment, all adapters and interfaces required to operate the retrofit device and restore vehicle functions are included in the scope of delivery.
Check the installation recommendations for the individual components.
Please check the OEM HU and vehicle settings for available settings bevore installation.
Note that in some cases not all functions are supported.
For example Trailer Assist, E Call or other driver assistance and comfort systems.
Also check our listed OEM head units and compare the pictured harness connectors with the connectors in your car and make sure that they fit optically and technically.
Finaly check all functions bevor final installation.
Vehicle application:
MAN
MAN TGE 2017 - 2025*/**
VW
VW Crafter II (SY/SZ) 03/2017 - 2025*/***
VW Grand California (SY/SZ) 03/2019 - 2025*/***
Note:
Can Bus

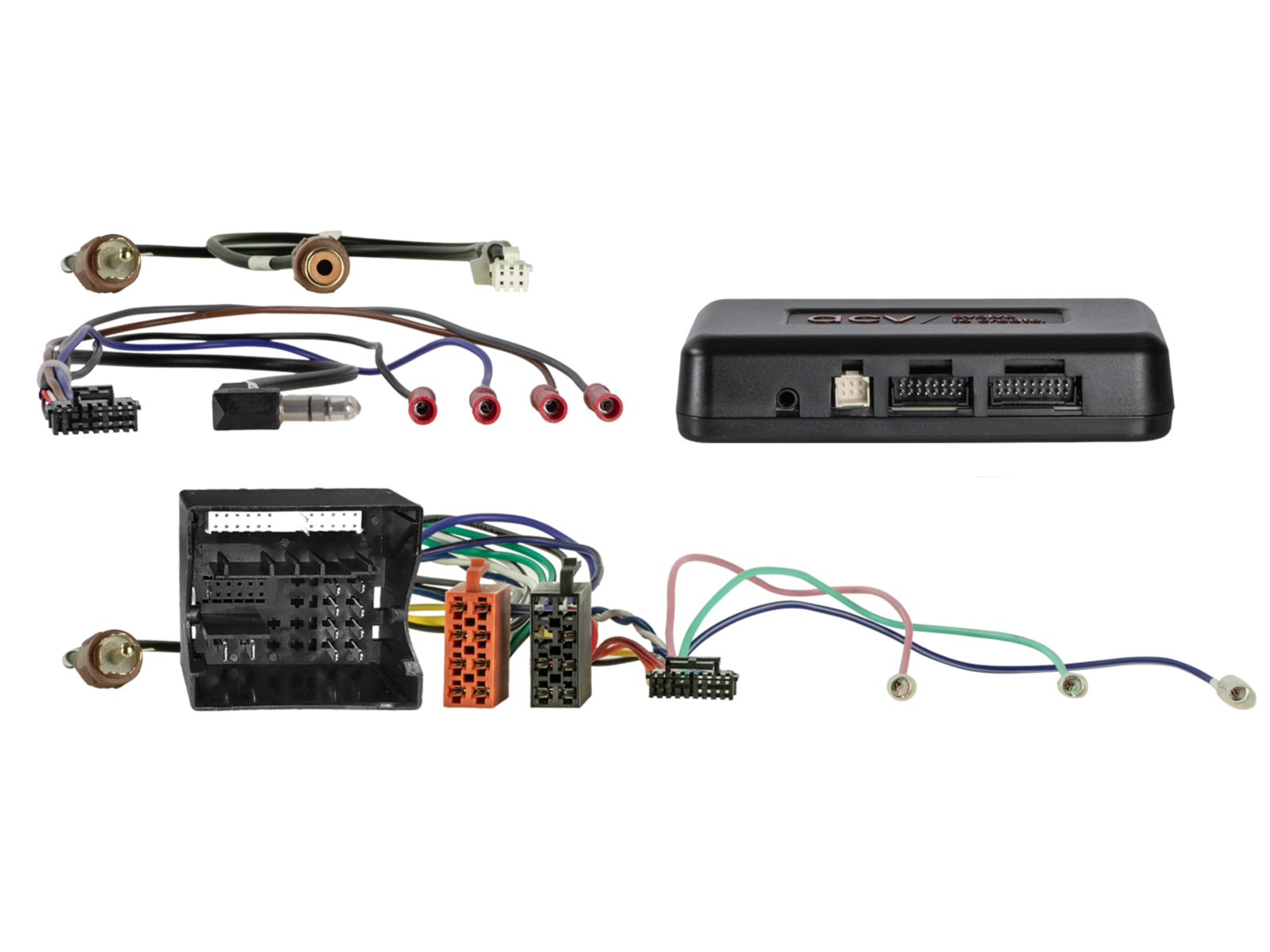

connector: 52 Pin Quadlock VAG
connector: OEM SWC 3,5mm Jack / loose wire
connector OEM antenna Fakra(f) DIN(m)
connector: OEM rear view camera RCA(m) ochre
blue: +12V antenna remote
before installation check antenna phantom supply voltage by measuring with OEM device:
vehicles with +12V antenna system item: 1524-70
vehicles with 8.5V antenna system item: 1524-01
vehicles with 8.5V antenna system optional:

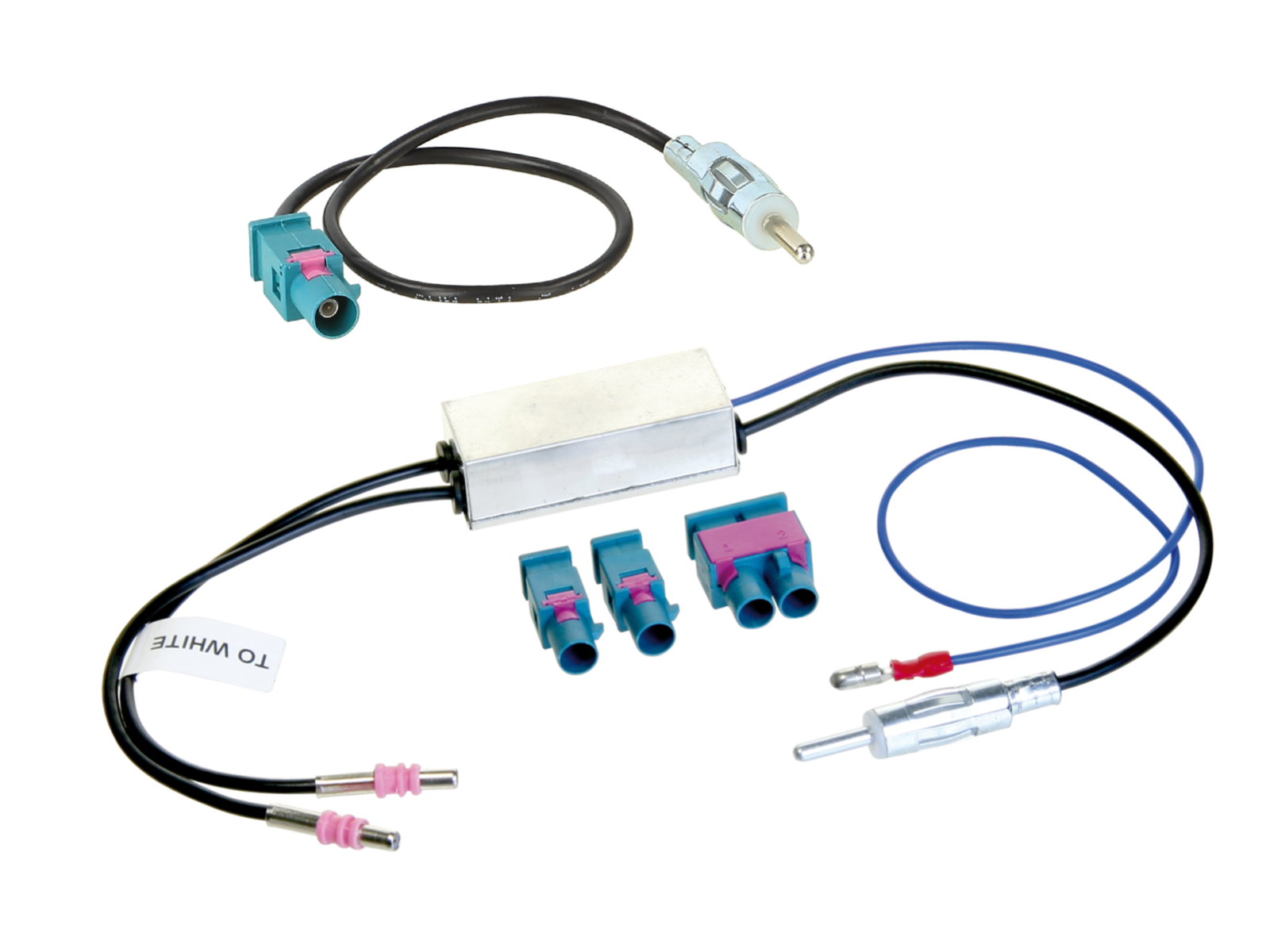

Antenna adapter Fakra(m)(double)DIN(m) 8.5V item: 1524-29
vehicles with MIB-II systems
1-DIN HU
2-DIN HU with a maximum mounting depth of 55mm (2.1″)
2-DIN HU L-Body at the top

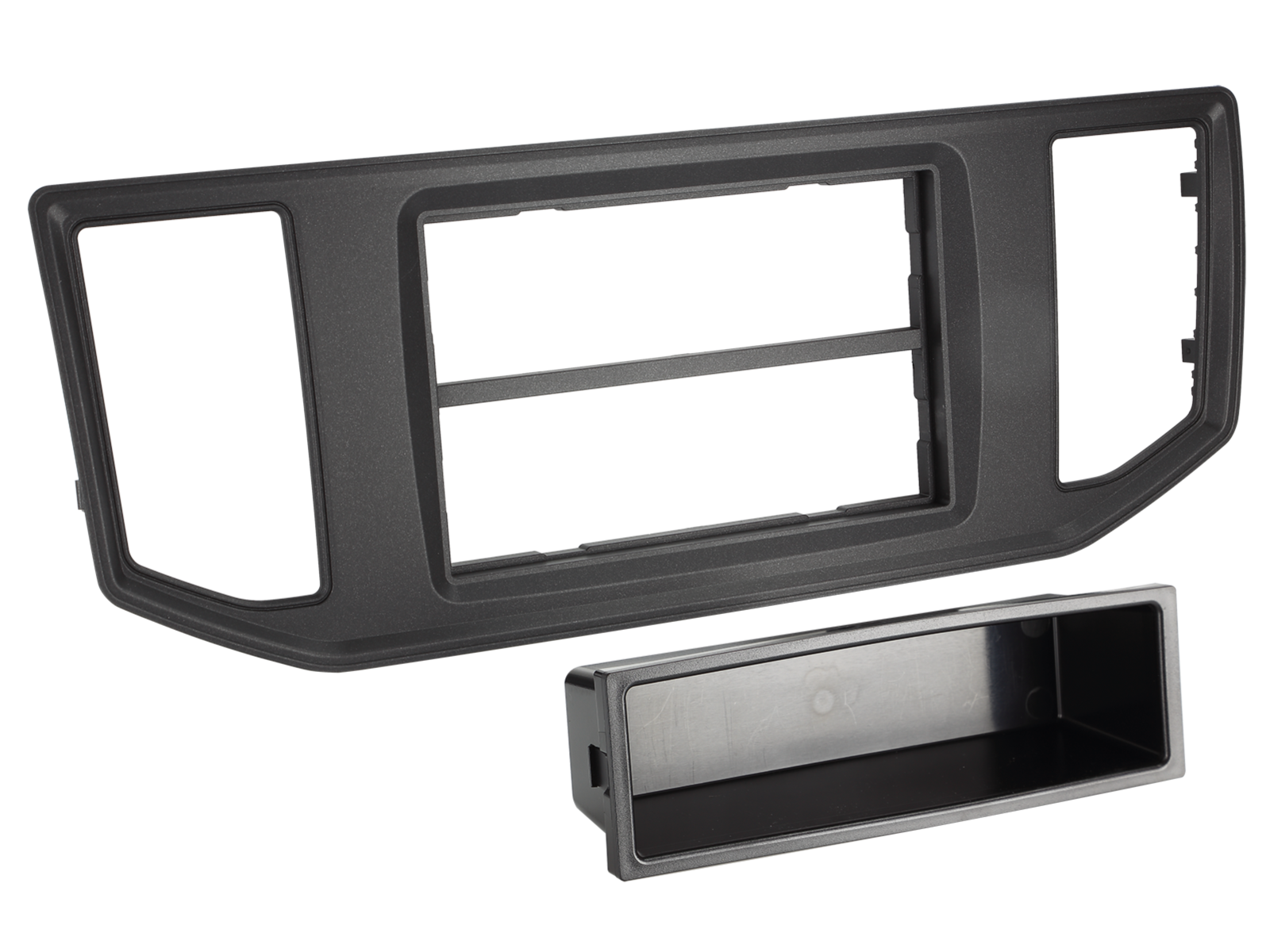

facia plate with 2-DIN cut out without centre bar
mounting cutout HU display: 182,5 mm x 113,5mm
activate and configure the rear view camera input in the retrofit HU
connection i-dapter:
purple/white: +12V reverse gear signal
RCA(m) ochre: rear view camera input retrofit HU
visualisation i-adapter settings retrofit HU rear view camera input
visualisation OPS retrofit HU rear view camera input
visualisation Klinatronik retrofit HU rear view camera input
vehicles with SWC i-dapter settings:
press and hold track up SWC buttom
alternatively with item: 43x-remote
vehicles without SWC i-dapter settings required accessories:
i-dapter accessories remote control interface settings: item: 43x-remote
camera image or i-dapter settings and visualisation not available:
connect additional GND signal to the RCA outer conductor of the camera and HU connection
vehicles with parking assistance front PDC front PDC is shown after ignition in display
exit the display via vehicle PDC switch
+12V reverse gear signal is switched off from 3 km/h
camera image or i-dapter settings and visualisation not available:
connect additional GND signal to the RCA outer conductor of the camera and HU connection
vehicles with E-Call:
E-Call function retention MAN/Seat/Skoda/VW 52 Pin Quadlock item: 1424-02
vehicles without amplified system
Not for vehicles:
with OEM amplified system
with open dash
without any OEM preparation SWC / speakers / HU
dip switch settings for the retrofit device manufacturer (look into the manual)
1-DIN HU
2-DIN HU with a maximum mounting depth of 55mm (2.1″)
2-DIN HU L-Body at the top
