HELIX IK ER8.2-DVC2

EAN: 4057204335816
IK ER8.2-DVC2

2 x 8″ subwoofer
600W
2 x 2 / 1 x 4 / 1 x 1 Ohm

Läs Mera
1 st
3 990,00 kr
Vikt: 13.00 kg
I lager
Frågor? Kontakta ossinfo(at)audioimport.fi
Beskrivning
Teknisk information
Bruksanvisningar
HELIX IK ER8.2-DVC2

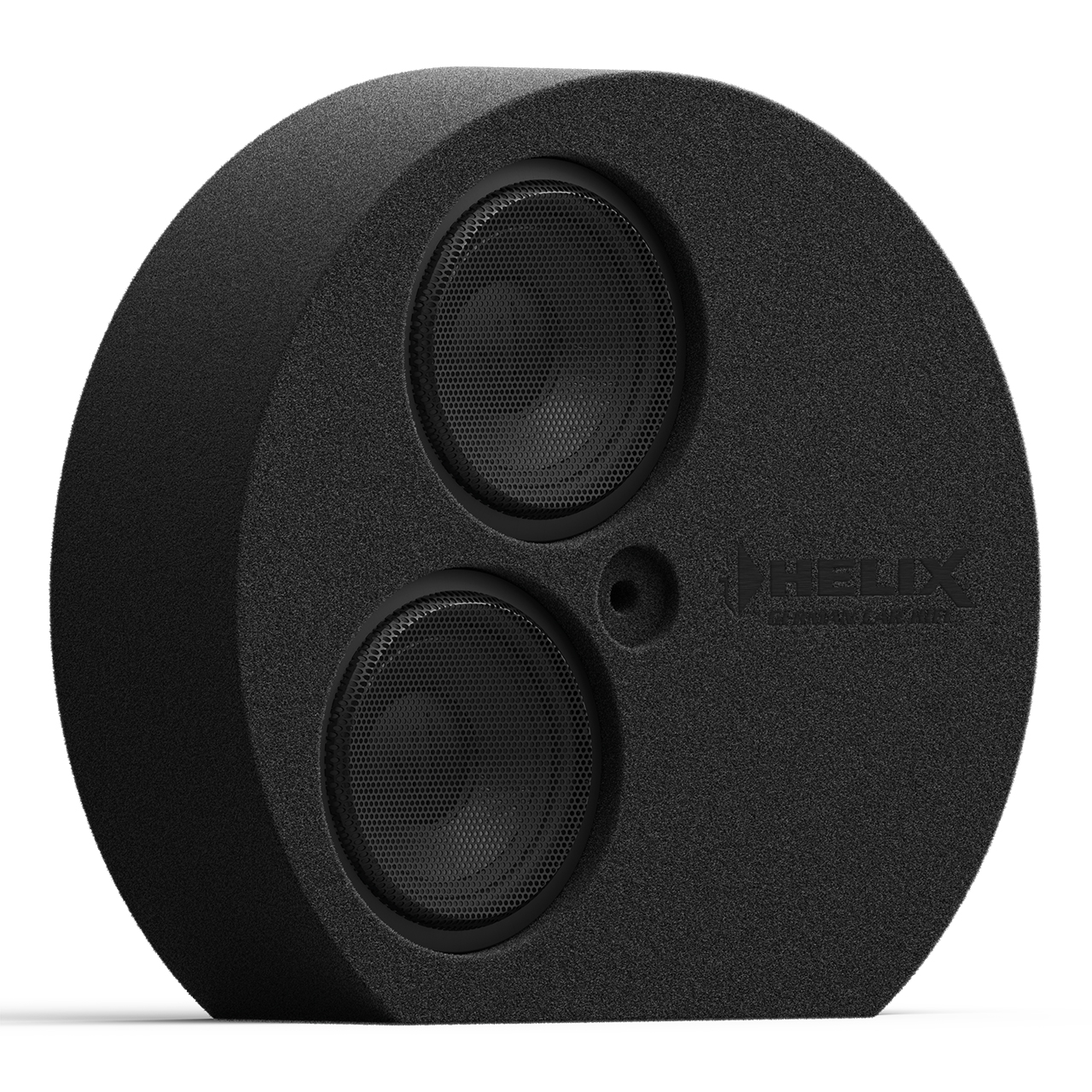

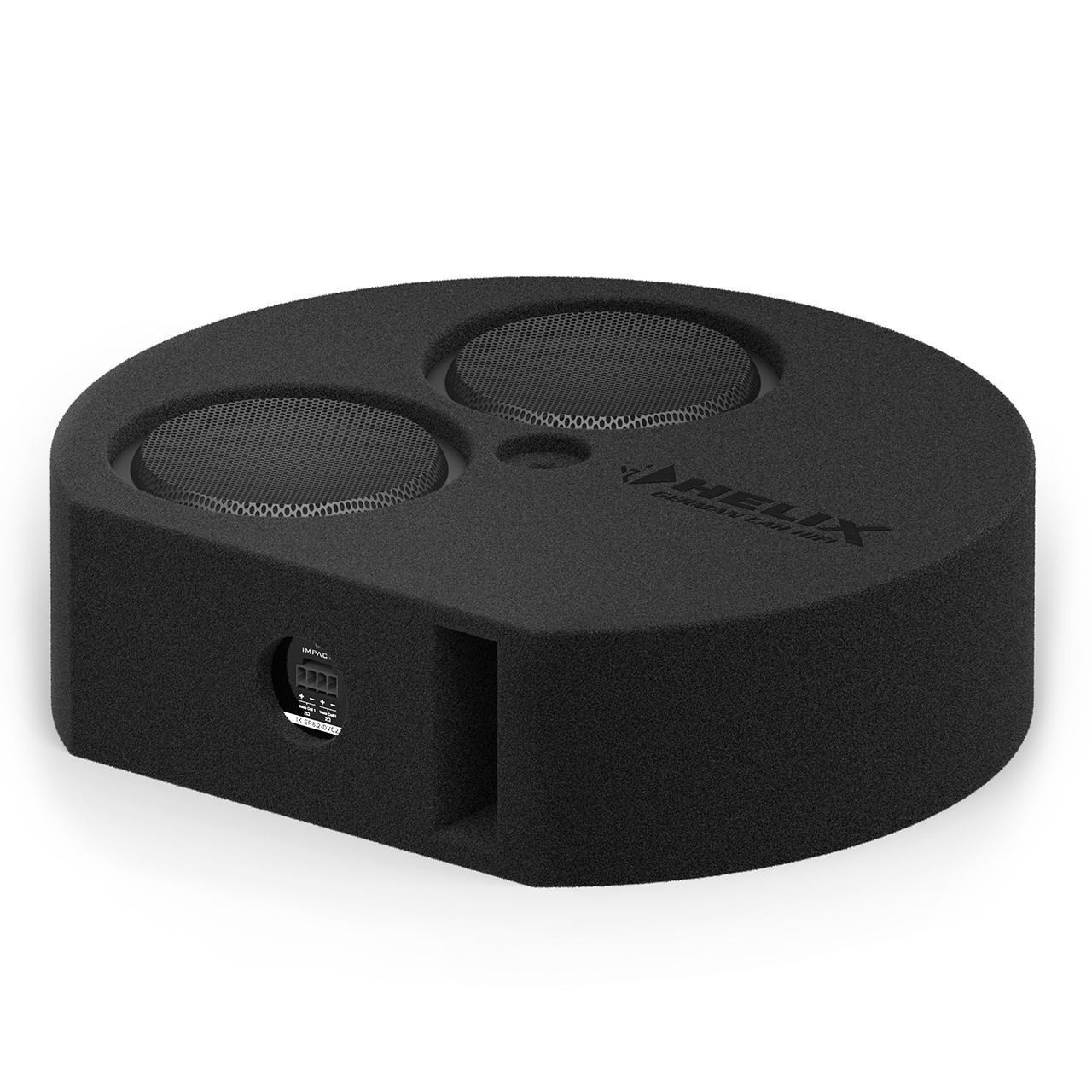

Compact, space-saving, and equipped with dual woofer power for breathtaking bass performance: The HELIX IK ER8.2-DVC2 is the ultimate choice for bass enthusiasts seeking a space-efficient subwoofer that delivers uncompromising low-frequency performance. Thanks to its round, shallow enclosure, it can be integrated into spare wheel recesses, maximizing the available space in the vehicle.

Outstanding bass in minimal space
The sophisticated, vented construction of the IK ER8.2-DVC2 not only ensures excellent sound quality but also delivers a bass performance that sets new standards. Equipped with two powerful 200 mm drivers with hand-scooped paper cones (2 x HELIX IK W8), this subwoofer generates low frequencies that are not only audible but also tangible. Even in tight spaces, it delivers bass dynamics that impress in terms of both impact and precision – a must-have for those looking to experience the ultimate deep bass.

Flexible installation and configuration

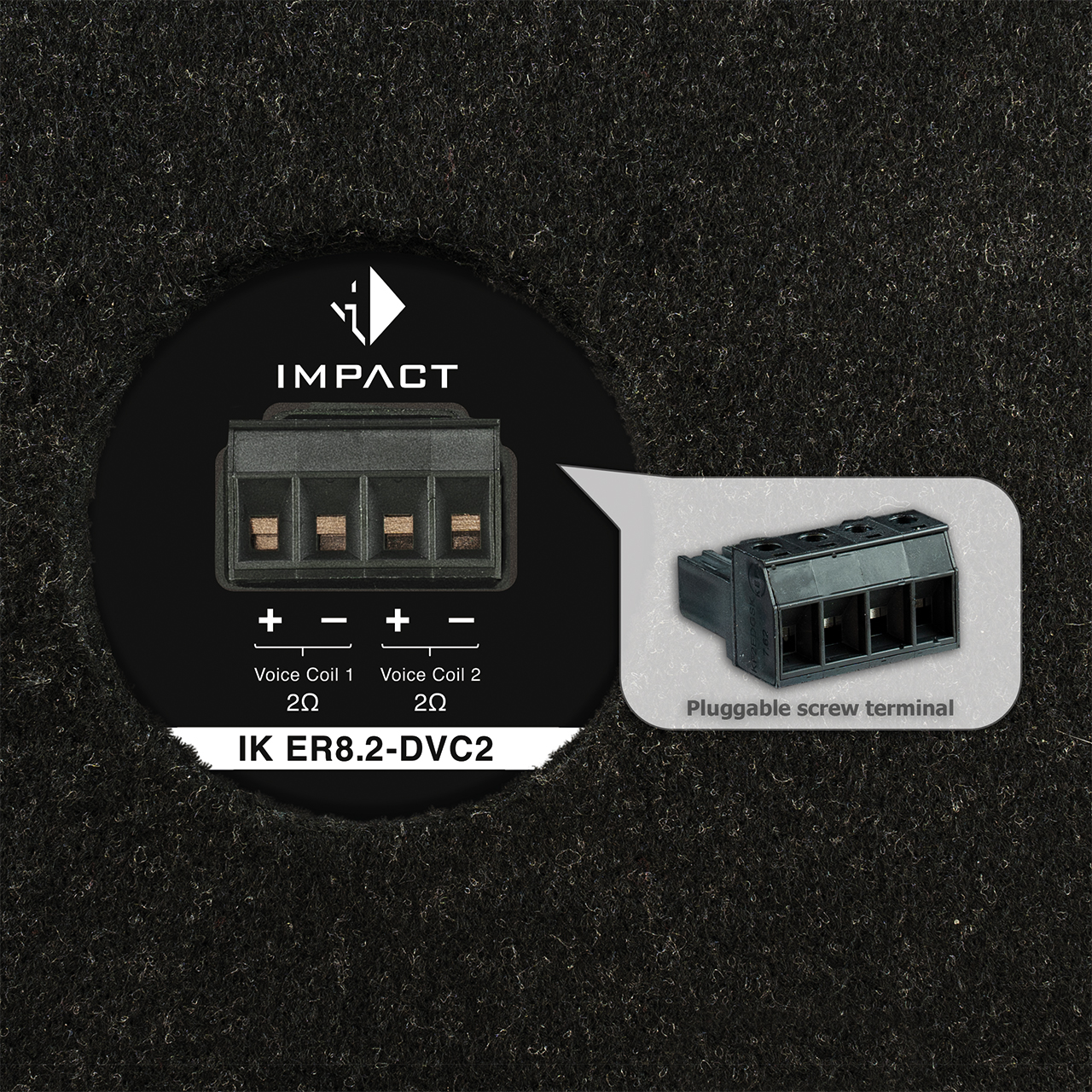

Thanks to the pluggable screw terminal, installing or removing the subwoofer is quick and secure. Additionally, the configurable voice coil impedance (2 x 2 Ohms, 1 x 4 Ohms, or 1 x 1 Ohm) allows flexible system integration with various amplifiers, catering to different configurations effortlessly.

Built for Durability
The subwoofer chassis are flush-mounted, ensuring a sleek, space-saving design while providing enhanced protection. The enclosure features a sturdy carpet surface with the embroidered HELIX logo, adding both style and resilience to the unit. For added security, the included mounting kit ensures reliable fixation within the spare wheel recess.
Power handling RMS P 600 Watts
Recommended amplifier power RMS 150 - 600 Watts
Impedance z 2 x 2 Ω / 1 x 4 Ω / 1 x 1 Ω
Max. linear excursion Xmax +/- 8.0 mm
Port tuning frequency Fb 41 Hz
Sensitivity
SPL
92 dB @ 2.83V / 1m
89 dB @ 1W / 1m

Dimensions (D x H) 580 x 160 mm /
22.8 x 6.3”
Integrated subwoofer chassis HELIX IK W8-SVC2
Recommended DSP settings ″Self-define″ highpass 35 Hz / Q = 1.0
EQ filter: 60 Hz / Q = 1.0 / -1 dB
