HELIX IK ER8.1-DVC2
EAN: 4057204335687
IK ER8.1-DVC2
1 x 8″ subwoofer
300W
2 x 2 / 1 x 4 / 1 x 1 Ohm
Läs Mera
1 st
2 990,00 kr
Beskrivning
Teknisk information
Bruksanvisningar
HELIX IK ER8.1
Compact, space-saving, and designed for deep bass performance: The HELIX IK ER8.1 is the perfect subwoofer for seamless integration into flat spare wheel recesses. Its exceptional shallow round enclosure makes it an ideal choice for a space-optimized installation without compromising on a proper low frequency reproduction.
Outstanding bass in minimal space
The sophisticated, vented construction of the IK ER8.1 ensures outstanding sound quality and superior bass dispersion, delivering rich, powerful low frequencies across the vehicle. Equipped with an 8” (200 mm) woofer featuring a sandwich paper cone, this subwoofer brings impressive deep bass to even the tightest spaces.
Flexible installation and configuration

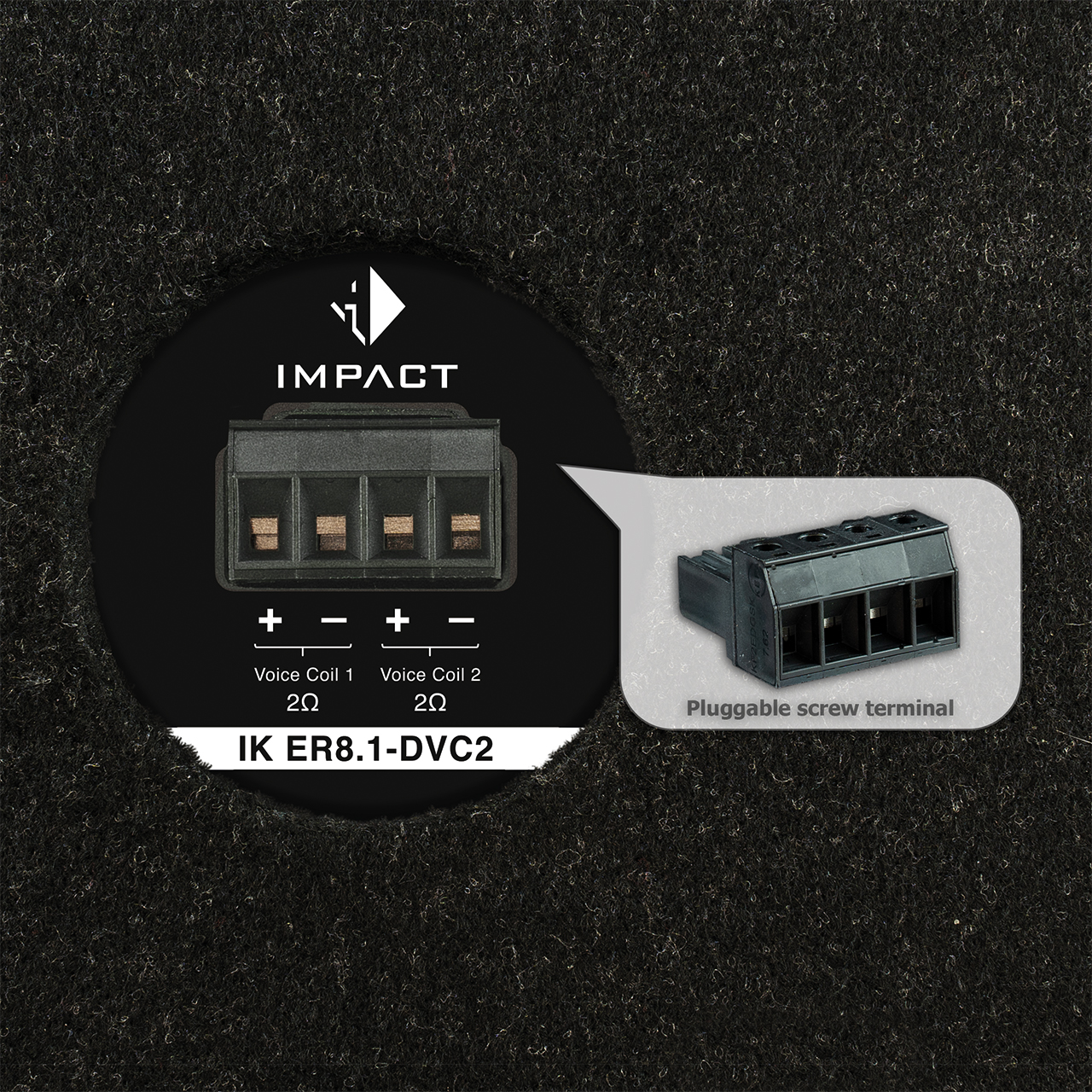

Thanks to the pluggable screw terminal, installing or removing the subwoofer is quick and secure. Additionally, with the choice between a 1 x 2 Ohms (SVC2) or 2 x 2 Ohms (DVC2) configuration, there is a perfect deep bass specialist for every amplifier setup to maximize power output.
Built for durability
The subwoofer chassis is flush-mounted, ensuring a sleek, space-saving design while providing enhanced protection. The enclosure features a sturdy carpet surface with the embroidered HELIX logo, adding both style and resilience to the unit. For added security, the included mounting kit ensures reliable fixation within the spare wheel recess.
Compact, space-saving, and designed for deep bass performance: The HELIX IK ER8.1 is the perfect subwoofer for seamless integration into flat spare wheel recesses. Its exceptional shallow round enclosure makes it an ideal choice for a space-optimized installation without compromising on a proper low frequency reproduction.
Outstanding bass in minimal space
The sophisticated, vented construction of the IK ER8.1 ensures outstanding sound quality and superior bass dispersion, delivering rich, powerful low frequencies across the vehicle. Equipped with an 8” (200 mm) woofer featuring a sandwich paper cone, this subwoofer brings impressive deep bass to even the tightest spaces.
Flexible installation and configuration
Thanks to the pluggable screw terminal, installing or removing the subwoofer is quick and secure. Additionally, with the choice between a 1 x 2 Ohms (SVC2) or 2 x 2 Ohms (DVC2) configuration, there is a perfect deep bass specialist for every amplifier setup to maximize power output.
Built for durability
The subwoofer chassis is flush-mounted, ensuring a sleek, space-saving design while providing enhanced protection. The enclosure features a sturdy carpet surface with the embroidered HELIX logo, adding both style and resilience to the unit. For added security, the included mounting kit ensures reliable fixation within the spare wheel recess.
Power handling RMS P 300 Watts
Recommended amplifier power RMS 150 - 300 Watts
Impedance z 2 x 2 Ω / 1 x 4 Ω / 1 x 1 Ω
Max. linear excursion Xmax +/- 6.0 mm
Port tuning frequency Fb 42 Hz
Sensitivity
SPL
88 dB @ 2.83V / 1m
85 dB @ 1W / 1m
Dimensions (D x H) 580 x 120 mm /
22.8 x 4.7”
Integrated subwoofer chassis HELIX IK S8-DVC2
Recommended DSP settings ″Self-define″ highpass 35 Hz / Q = 1.0
EQ filter: not required
Recommended amplifier power RMS 150 - 300 Watts
Impedance z 2 x 2 Ω / 1 x 4 Ω / 1 x 1 Ω
Max. linear excursion Xmax +/- 6.0 mm
Port tuning frequency Fb 42 Hz
Sensitivity
SPL
88 dB @ 2.83V / 1m
85 dB @ 1W / 1m
Dimensions (D x H) 580 x 120 mm /
22.8 x 4.7”
Integrated subwoofer chassis HELIX IK S8-DVC2
Recommended DSP settings ″Self-define″ highpass 35 Hz / Q = 1.0
EQ filter: not required
