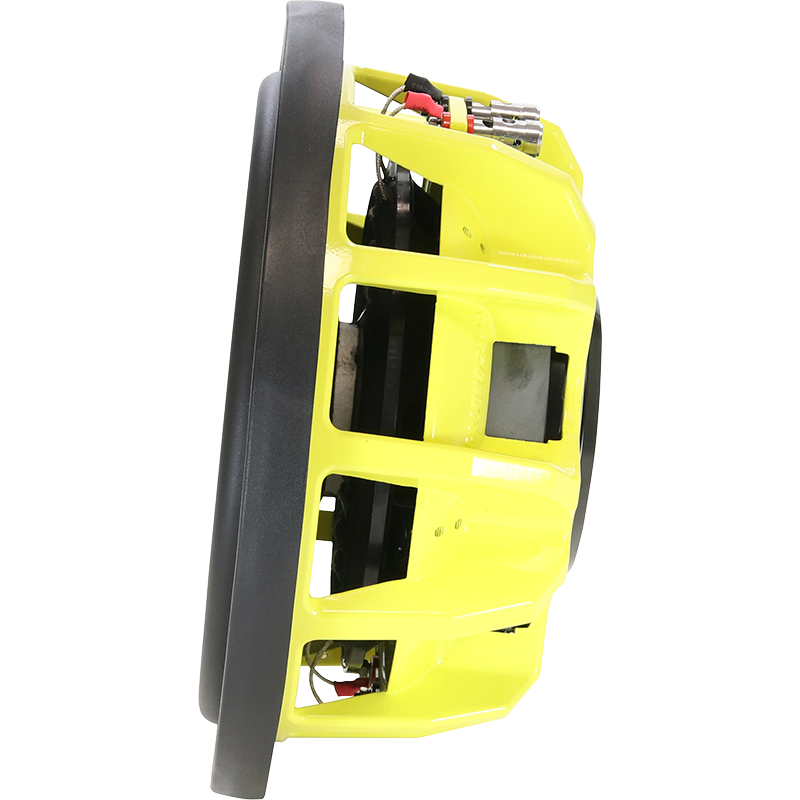

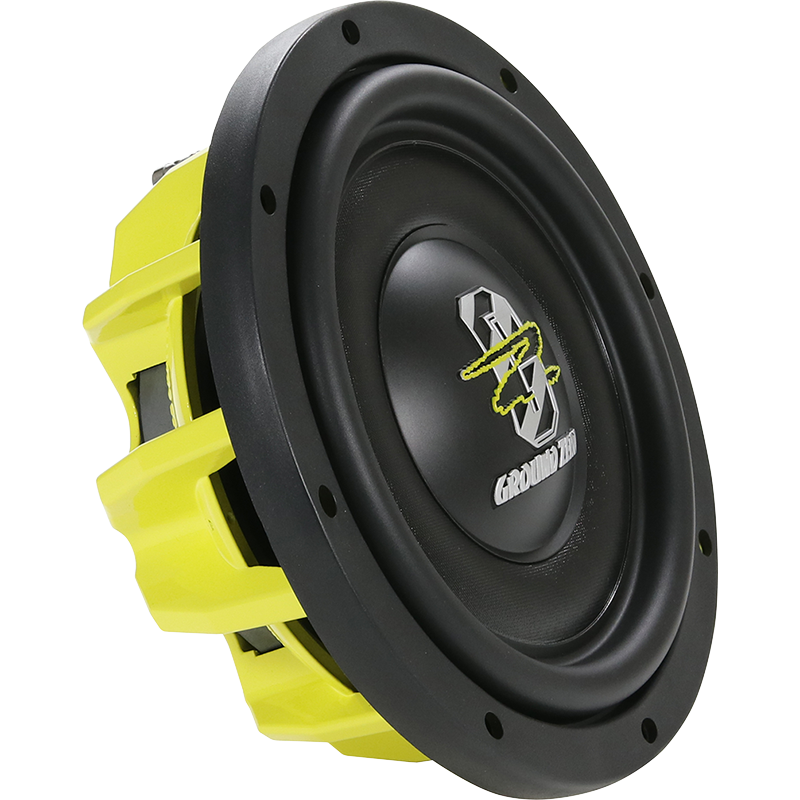

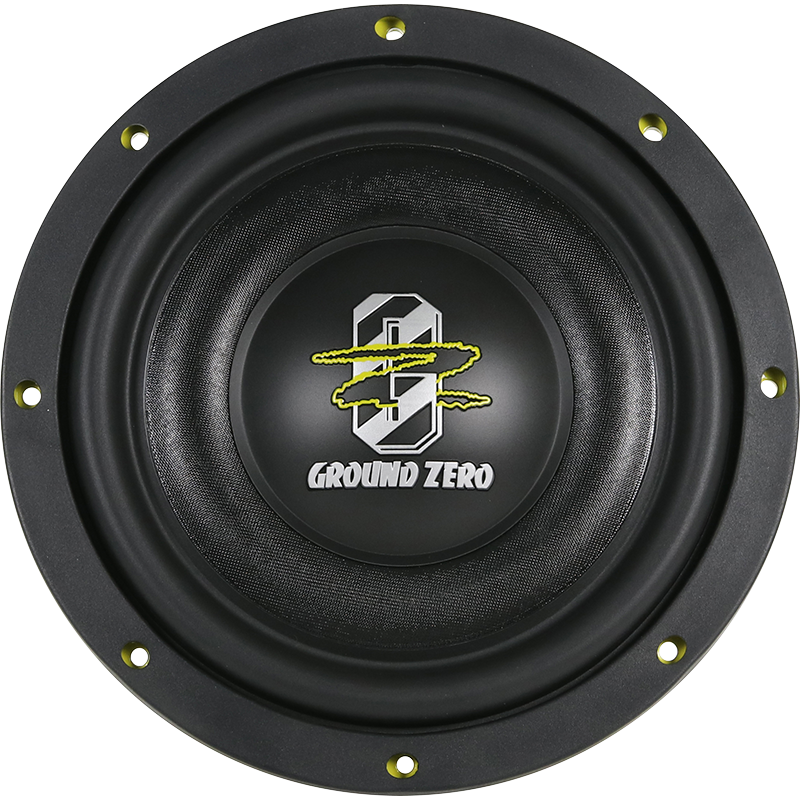

Ground Zero GZHW 10SPL-D2 FLAT

10″ high quality flat SPL subwoofer
Klippel® optimized
Sandwich paper cone
Durable U-shape rubber surround
Solid aluminum cast basket
63 mm / 2.5″ copper voice coil
4-layer copper voice coil
Push terminal

Enclosure recommendation:

Vented: 17 Liter netto / 0.60 cu.ft. net
Port 1 x 70 mm / 1 x 2.76”
port length* 300 mm / 11.81”
frequency 39 Hz


Sealed (minimum)
15 Liter netto / 0.53 cu.ft. net

NOTE! Works from 9 liters in a sealed case!
