GZ SQL Bundle 2x6,5 inc compo
GZ SQL Bundle 2x6,5 inc compo
4 x GZCK 165XSPL
4 x GZCT 25SQL
2 x GZCX 165/200.2SQL
S2-A150.2
Läs Mera
set
6 990,00 kr
Beskrivning
Teknisk information

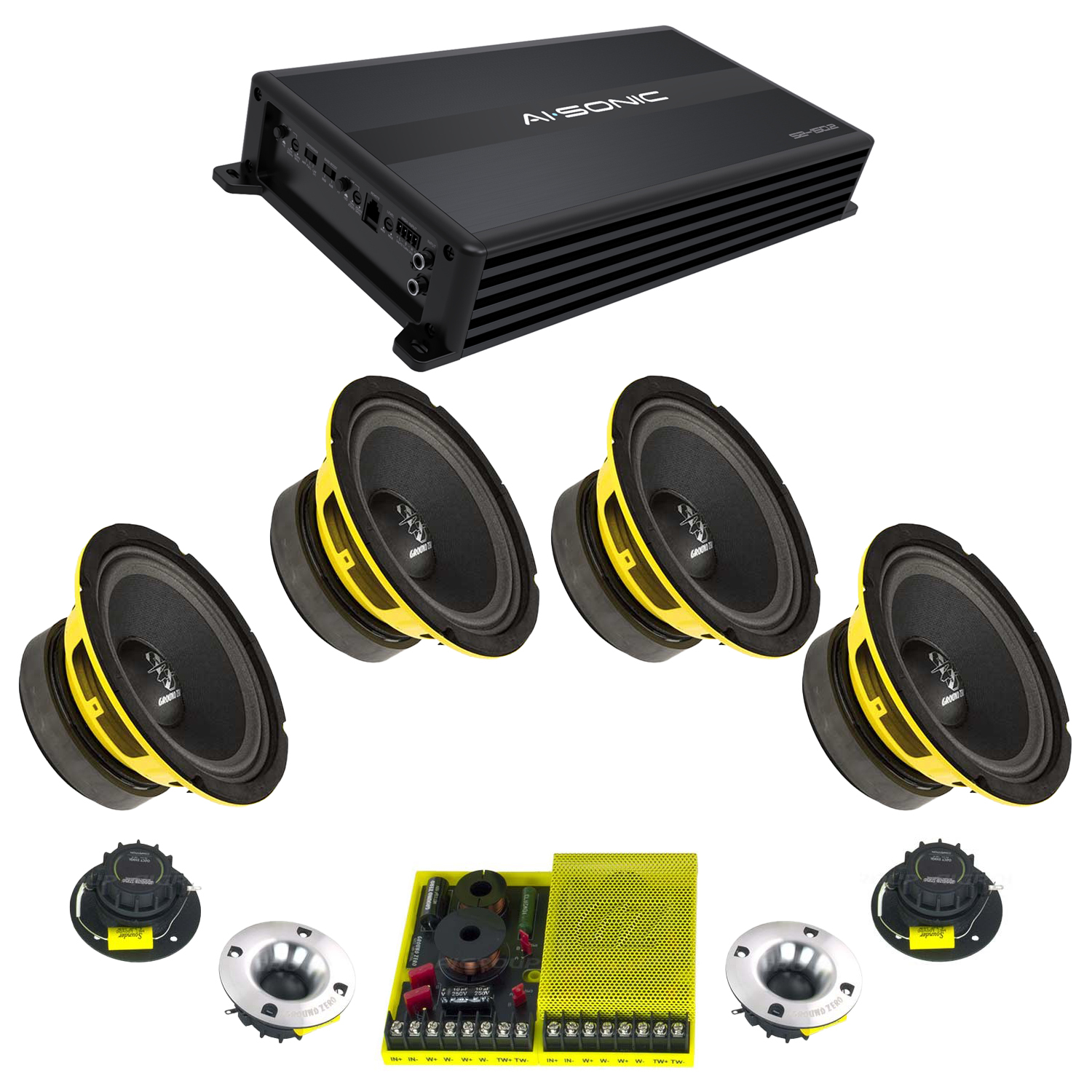

Ground Zero Competition series separate system with 4pcs of 6,5″ woofers, 4pcs of GZCT 25SQL tweeters, 2pcs of GZCX 165/200.2SQL passive crossovers and high quality Ai-Sonic S2-A150.2 Amplifier!
New GZCK 165XSPL woofer has high sensitivity, high power handling and great sound quality. One of a kind SPL-woofers that truly can play midbass tones with authority. GZCT 25SQL tweeter has also high sensitivity and power handling. And much better sound than bullet tweeters in same price category.
Crossover is all new GZCX 165/200.2SQL that is built of premium components and has flexibility to high output systems like no other.

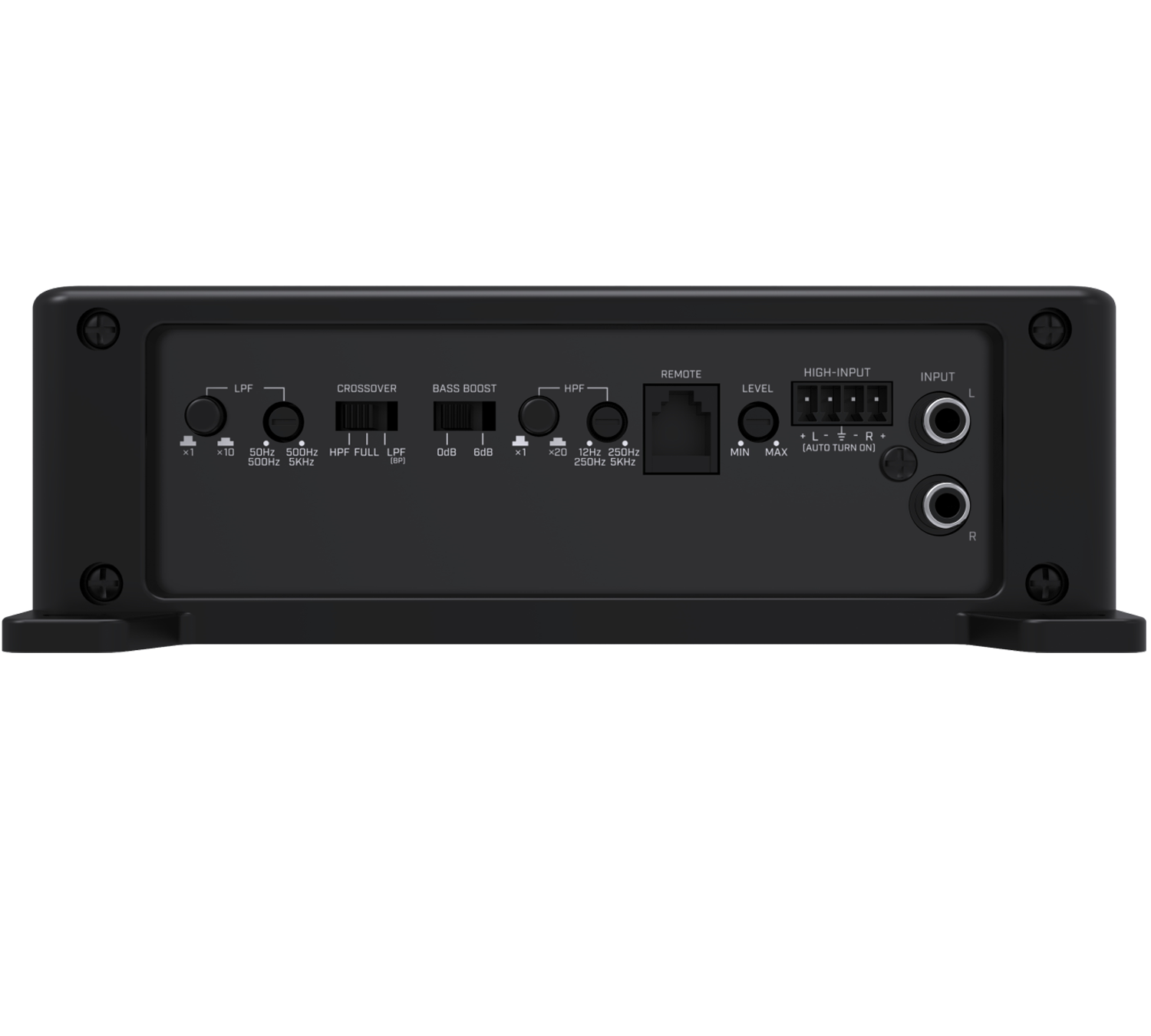

S2-A150.2:

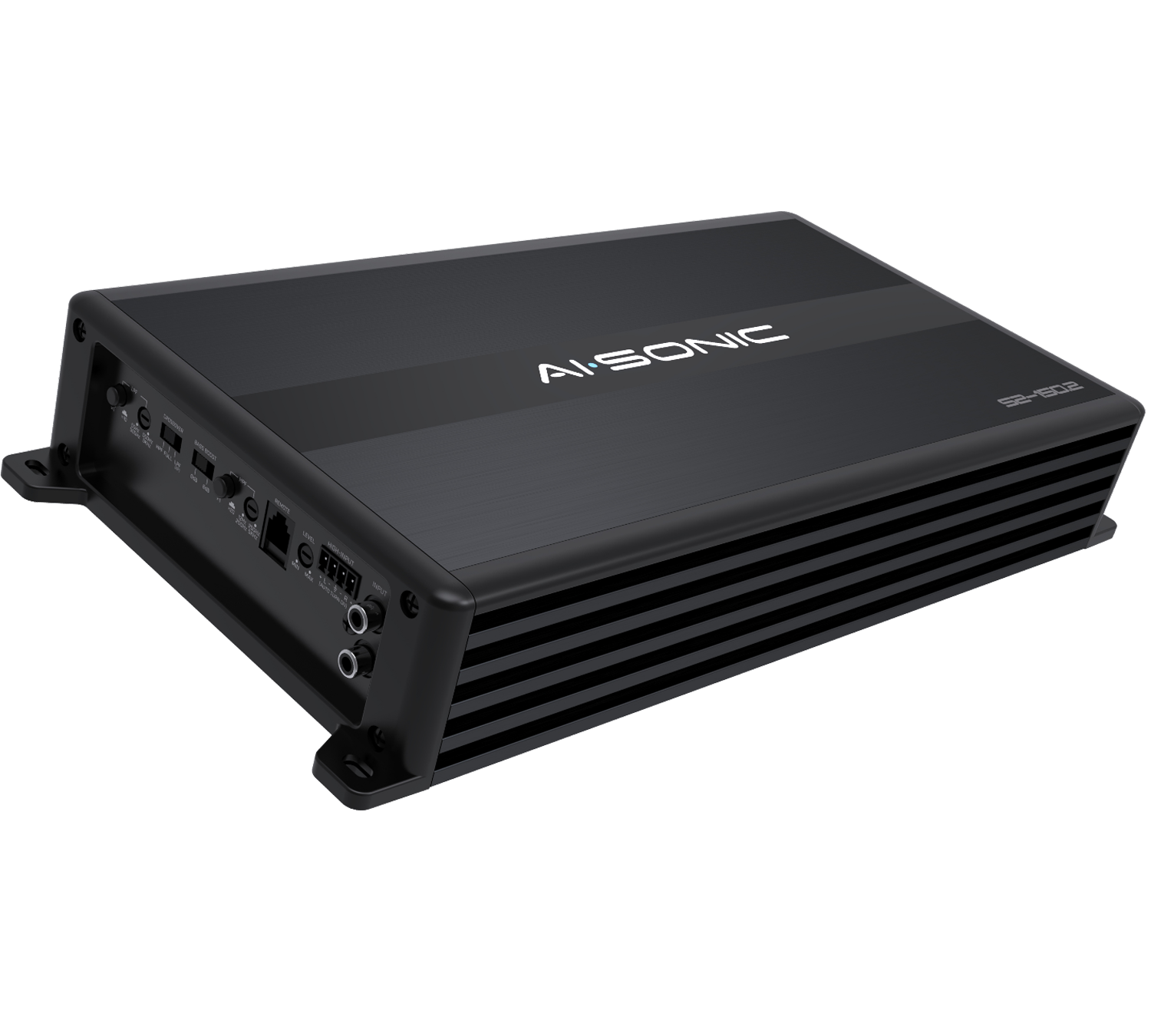

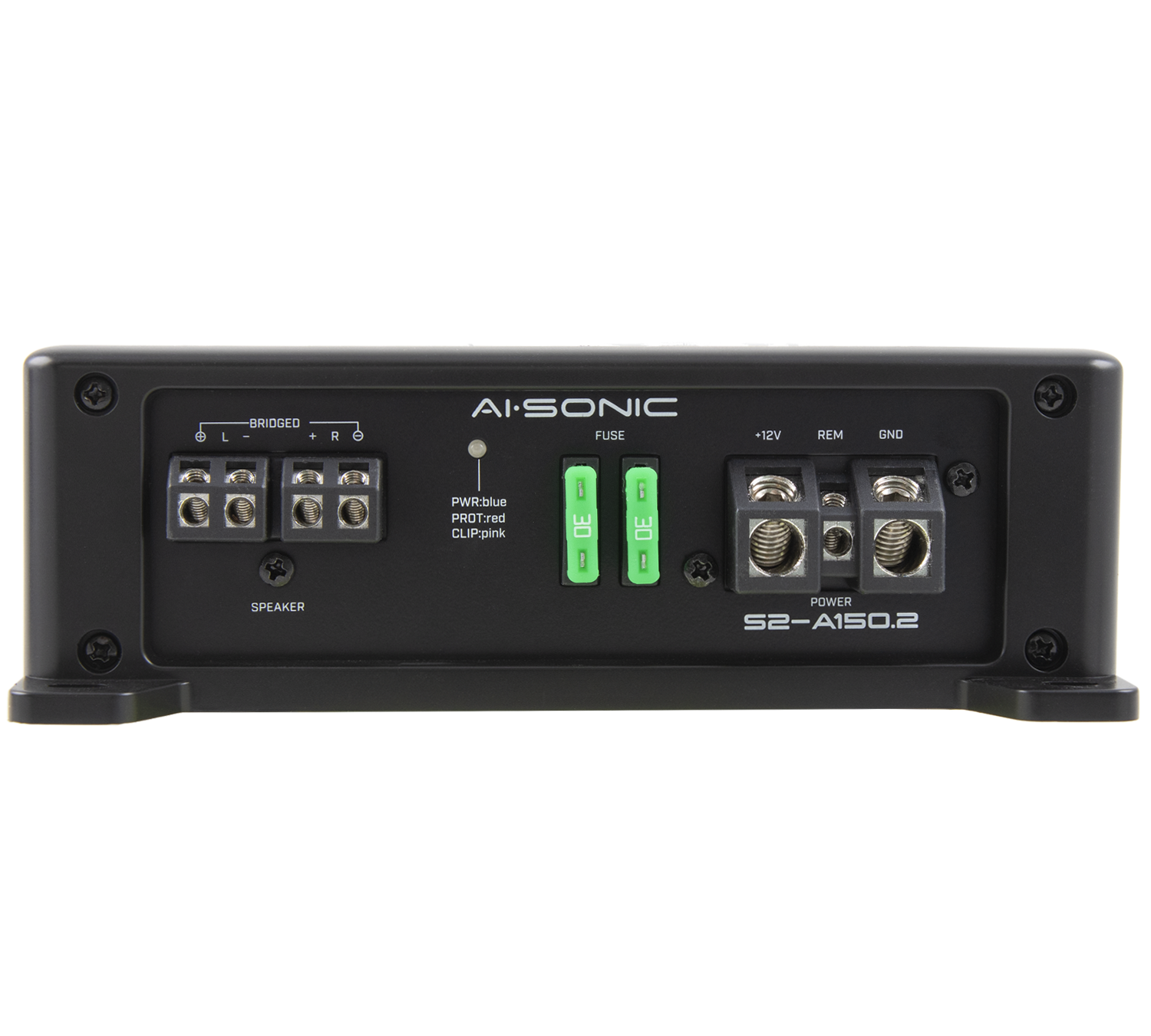

AI-Sonic S2-A150.2 is 2-channel AB class amplifier for users, who want to feel pure sound quality.
Amplifier gives more power as there are mentioned at the specs.
Finished dark cover, which profile is brushed black aluminium.
When amplifier is on. There is indicator light in AI-Sonic logo!
Includes a remote control, which has three different indicator-leds.
(protection, power and clipping)
Designed in Finland.
(Bass level control sold separately and it works only when LPF is turned on.)
New GZCK 165XSPL woofer has high sensitivity, high power handling and great sound quality. One of a kind SPL-woofers that truly can play midbass tones with authority. GZCT 25SQL tweeter has also high sensitivity and power handling. And much better sound than bullet tweeters in same price category.
Crossover is all new GZCX 165/200.2SQL that is built of premium components and has flexibility to high output systems like no other.
S2-A150.2:
AI-Sonic S2-A150.2 is 2-channel AB class amplifier for users, who want to feel pure sound quality.
Amplifier gives more power as there are mentioned at the specs.
Finished dark cover, which profile is brushed black aluminium.
When amplifier is on. There is indicator light in AI-Sonic logo!
Includes a remote control, which has three different indicator-leds.
(protection, power and clipping)
Designed in Finland.
(Bass level control sold separately and it works only when LPF is turned on.)
- 2-way passive separate system
- 4pcs of 6.5″ woofers ( GZCK 165XSPL )
- 4pcs of 1″ tweeters ( GZCT 25SQL )
- 2pcs of passive crossovers ( GZCX 165/200.2SQL )
- frequency response 50 - 20 000 Hz
- cutoff frequency 4500 Hz ( 12 dB/oct )
- sensitivity 94 dB
- power handling 160 W RMS / 300 W Peak
- woofer mounting depth 72 mm
- woofer mounting diameter 145 mm
S2-A150.2:
RMS POWER (2ohm) 12v 1%THD 2x225W
RMS POWER (4ohm) 12v 1%THD 2 x 150W
BRIDGED POWER(4ohm) 12v 1%THD 1 x450W
T.H.D 0,02% 4ohm, 0.04 % 2ohm
BANDWIDTH: 10Hz-40KHz
S/N RATIO (A-WEIGHTED): 105dB
CHANNEL SEPARATION: 45dB
INPUT SENSITIVITY :0.5-6V
LOW PASS x1: 50Hz- 500Hz x10: 500Hz-5KHz
HIGH PASS x1: 12Hz-250Hz x2Q: 250Hz-5KHz
BAND PASS(FRONT ): 12Hz- 5KHz
CROSSOVER SLOPE: 12dB/oct
BASS BOOST: 0/6dB(@45Hz)
POWER FUSE: 2 x 30A
HIGH-LEVEL VOLTAGE: 0.75-9V
Cable fitting size:
+12V = 20mm2
GND = 20mm2
REM = 6mm2
SPEAKER = 6mm2
Current Draw (Max): 52A
DIMENSIONS W: 183mm / (7.2 IN)
H: 60mm / (2.4 IN)
L: 374mm / ( 14.7IN)
- 4pcs of 6.5″ woofers ( GZCK 165XSPL )
- 4pcs of 1″ tweeters ( GZCT 25SQL )
- 2pcs of passive crossovers ( GZCX 165/200.2SQL )
- frequency response 50 - 20 000 Hz
- cutoff frequency 4500 Hz ( 12 dB/oct )
- sensitivity 94 dB
- power handling 160 W RMS / 300 W Peak
- woofer mounting depth 72 mm
- woofer mounting diameter 145 mm
S2-A150.2:
RMS POWER (2ohm) 12v 1%THD 2x225W
RMS POWER (4ohm) 12v 1%THD 2 x 150W
BRIDGED POWER(4ohm) 12v 1%THD 1 x450W
T.H.D 0,02% 4ohm, 0.04 % 2ohm
BANDWIDTH: 10Hz-40KHz
S/N RATIO (A-WEIGHTED): 105dB
CHANNEL SEPARATION: 45dB
INPUT SENSITIVITY :0.5-6V
LOW PASS x1: 50Hz- 500Hz x10: 500Hz-5KHz
HIGH PASS x1: 12Hz-250Hz x2Q: 250Hz-5KHz
BAND PASS(FRONT ): 12Hz- 5KHz
CROSSOVER SLOPE: 12dB/oct
BASS BOOST: 0/6dB(@45Hz)
POWER FUSE: 2 x 30A
HIGH-LEVEL VOLTAGE: 0.75-9V
Cable fitting size:
+12V = 20mm2
GND = 20mm2
REM = 6mm2
SPEAKER = 6mm2
Current Draw (Max): 52A
DIMENSIONS W: 183mm / (7.2 IN)
H: 60mm / (2.4 IN)
L: 374mm / ( 14.7IN)
