ACV 2-DIN installation kit Seat Alhambra/VW Amarok/Beetle/Caddy/Sharan/T6 LFB

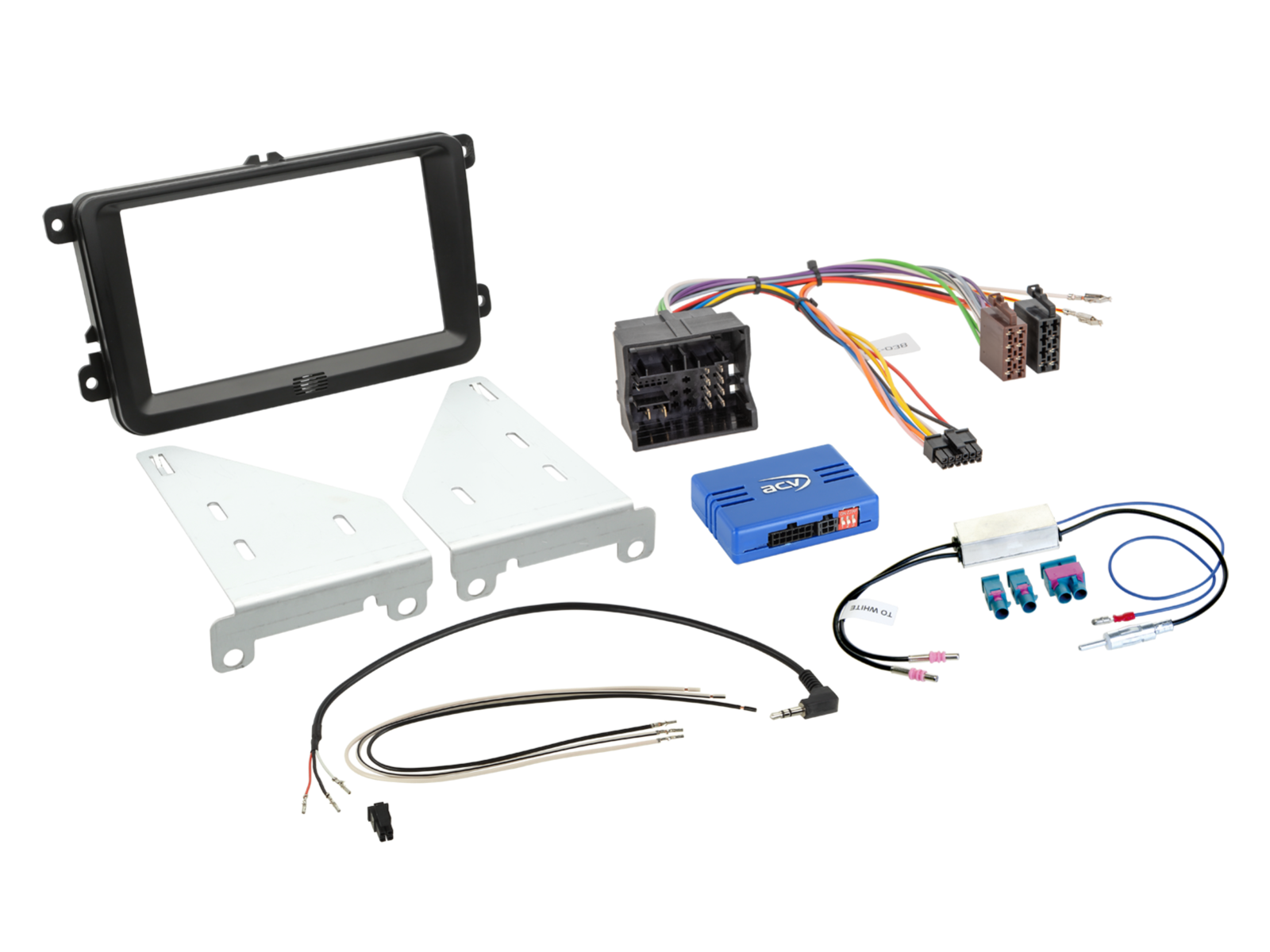

Radio cover 2-DIN with radio connection kit steering wheel controls Seat / VW

acv premium quality

Many car manufacturers install their own vehicle-specific radios that are visually adapted to the center console.

Installation kits contain all components for replacing an OEM device.

Depending on the vehicle′s equipment, all adapters and interfaces required to operate the retrofit device and restore vehicle functions are included in the scope of delivery.

Please note the installation recommendations for the individual components.

In some cases, not all vehicle functions are supported.
For example, Trailer Assist, E Call or other driving assistance systems.

Before installation, check the OEM device and the vehicle menu for various settings.

Depending on the vehicle equipment as well as the range of functions and software of the retrofit device, individual operating functions can be omitted or replaced by other functions.

Compare the plugs of the adapter shown with those in your vehicle and make sure that they fit visually and technically.

Please also check whether one of the specified original factory radios was installed in your vehicle.

Before final assembly, check vehicle functions, vehicle settings and steering wheel controls for function.

Compatibility:
Seat
Seat Alhambra II (7N) 06/2016 - 08/2019

VW
VW Amarok (2H) 09/2016 - 07/2020*
VW Beetle (16) 06/2016 - 03/2018
VW Caddy IV (DU) 06/2015 - 09/2020
VW Sharan II (7N) 07/2015 - 10/2021
VW T6 (7HC) 07/2015 - 08/2019**

Colour: black

Radio display cut-out: 173 mm x 98.5 mm

Technical details:
CAN Bus

Connector: 52 Pin VAG Quadlock Connector Item: 42cx38
Connector: steering wheel controls Item: 42arc100
Connection: OEM Antenna Fakra Z(m)(Set) +12V DIN(m)

Check dip switch position for retrofit device

Check the supply voltage OEM antenna before installation with OEM device:
Vehicles with +12V supply voltage OEM antenna

Vehicles with 8.5V supply voltage OEM antenna:
Antenna adapter Fakra(m)(double)DIN(m) 8,5V Article: 1524-29

blue: +12V antenna remote

Vehicle settings not supported
E-Call not supported

Vehicles with E-Call:
E-Call Maintenance MAN/Seat/Skoda/VW 52 Pin Quadlock Item: 1424-28

Vehicles with reversing camera:
Rear View Camera Adapter OEM VW Miscellaneous Vehicles MIB-PQ Item: 771324-1037

Diagnostic LED:
Blue Flashing CAN Bus Search
blue constant CAN bus active
red +12V ignition current active

Functions and signals:
Re-import vehicles or vehicles with different software may be incompatible in functions.

pink: +12V ignition terminal 15 1.5A max.
orange: +12V lighting terminal 58 0.1A max.
white: +12V reversing signal 1.5A max.
yellow/green yellow/red: speed signal

steering wheel controls

*Vehicles with OEM device including CD drive
**Vehicles without Composition Audio MIB Entry OEM device with front AUX/SD/USB
**Vehicles with Composition Audio MIB Entry OEM Device with Front AUX/SD/USB Item: 42A-1324-001
