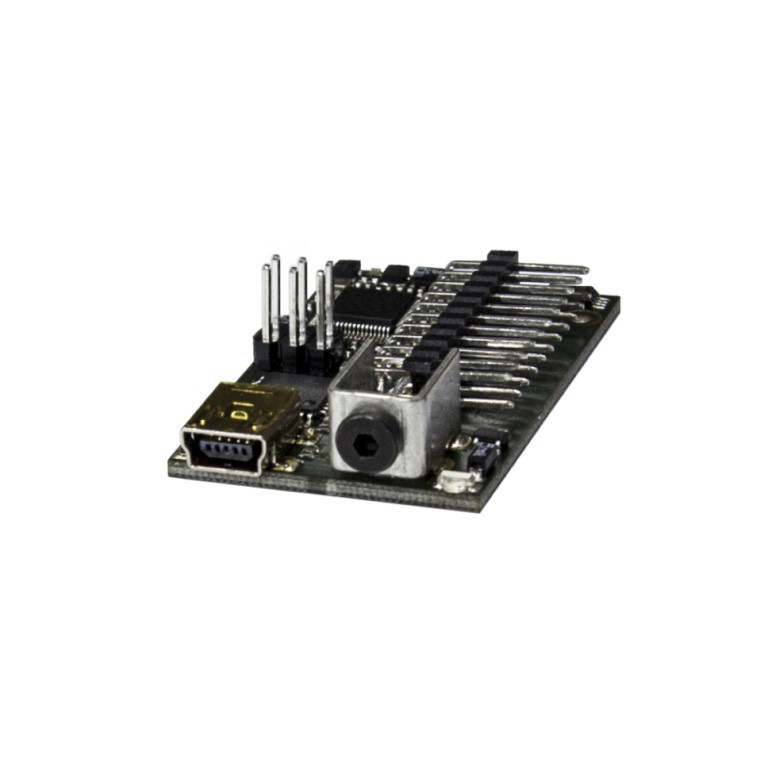

Helix HD-USB Module DSP ULTRA

Features:
USB Interface for Windows, macOS, iOS and Android devices
Lossless HD-audio transmission up to 192 kHz / 32 Bit
Direct digital signal transmission to DSP for lossless audio processing
Asynchronous USB connection with own clock generators for highest jitter immunity
Automatic signal detection
Device specific side panel included in delivery


Note: The HD-AUDIO USB-INTERFACE has two operating modes.
Full Speed Mode (default): Highest compatibility with all Android, iOS, macOS and Windows devices. Supports sample rates up to 96 kHz / 32 Bit. No driver installation necessary.
High Speed Mode: Compatible with most of all Android ( Version 6), iOS, macOS and Windows devices. Supports sample rates up to 192 kHz / 32 Bit. An additional driver installation for Windows devices is necessary to use sampling rates higher than 96 kHz / 32 Bit.

Note: No connection wires included. A MiniUSB wire is needed for most configurations. For Android devices an additional MicroUSB OTG cable is required. For Apple devices an additional Camera Connection kit or a Lightning to USB cable is required.

Attention: The HD-AUDIO USB-INTERFACE does not support charging.

Technical data:
Input sampling rate: 32 kHz to 192 kHz / 16 Bit, 24 Bit or 32 Bit
Input format: PCM
Supported device operating systems: Windows, macOS, iOS, Android
Additional features: Asynchronous USB connection with own clock generators for
highest jitter immunity.
