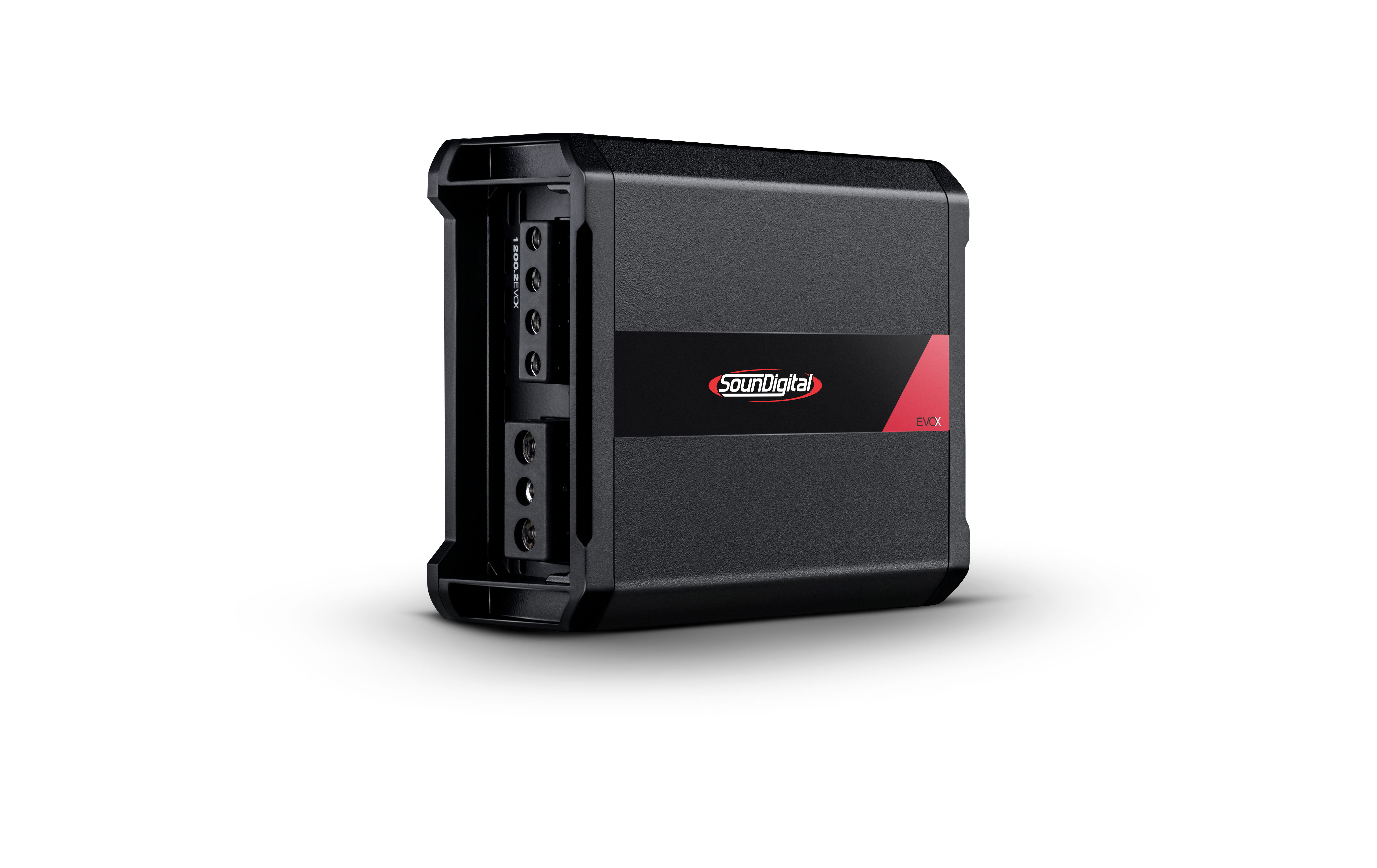

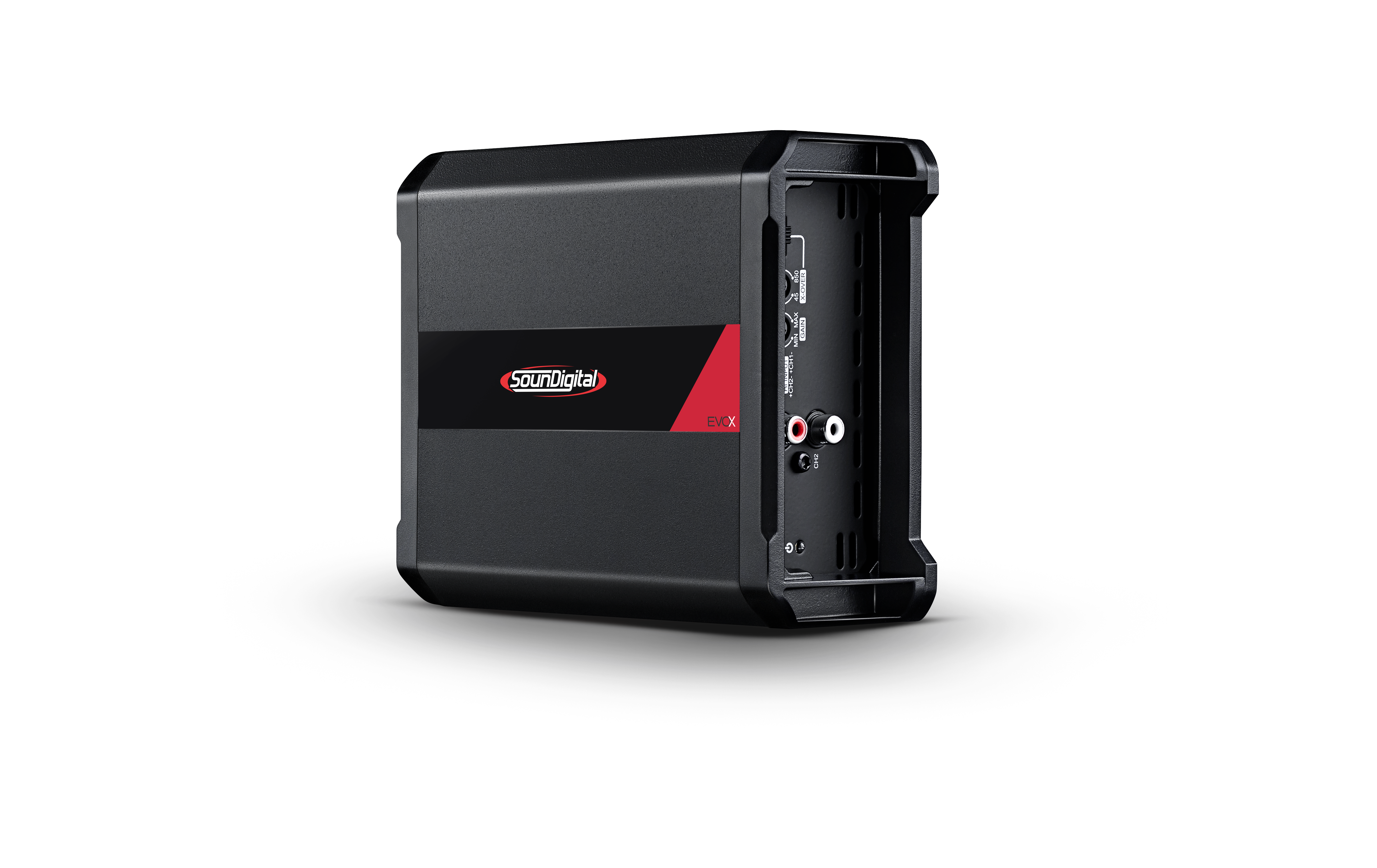

SLUTSTEG OCH TILLBEHÖR Slutsteg 2-kanals Soundigital 1200.2 EVOX 2 ohm

Soundigital 1200.2 EVOX 2 ohm

EAN: 7898644522476
SD1200.2-2 EVOX

2-channel amplifier
2 Ohm model
2 x 660W or 1 x 1330W
Better circuit board
Better cooling than before

Läs Mera
4 990,00 kr
Vikt: 1.30 kg
I lager
Frågor? Kontakta ossinfo(at)audioimport.fi
Beskrivning
Teknisk information
The EVO X Line brings the latest technology in a compact design with the highest quality components. From a pioneering technology, SounDigital brought to car audio amplifiers something that had not been explored yet. The thermal coupling through RTGP system.

The exclusive RTGP system (Thermal Recovery for power generation) assures SounDigital products both greater thermal efficiency and robustness with higher stability.
Power @ 12.6V @ 4Ω: 2 X 261 WRMS
Power @ 12.6V @ 2Ω: 2 X 396 WRMS
Power @ 12.6V @ 1Ω: 2 X 600 WRMS

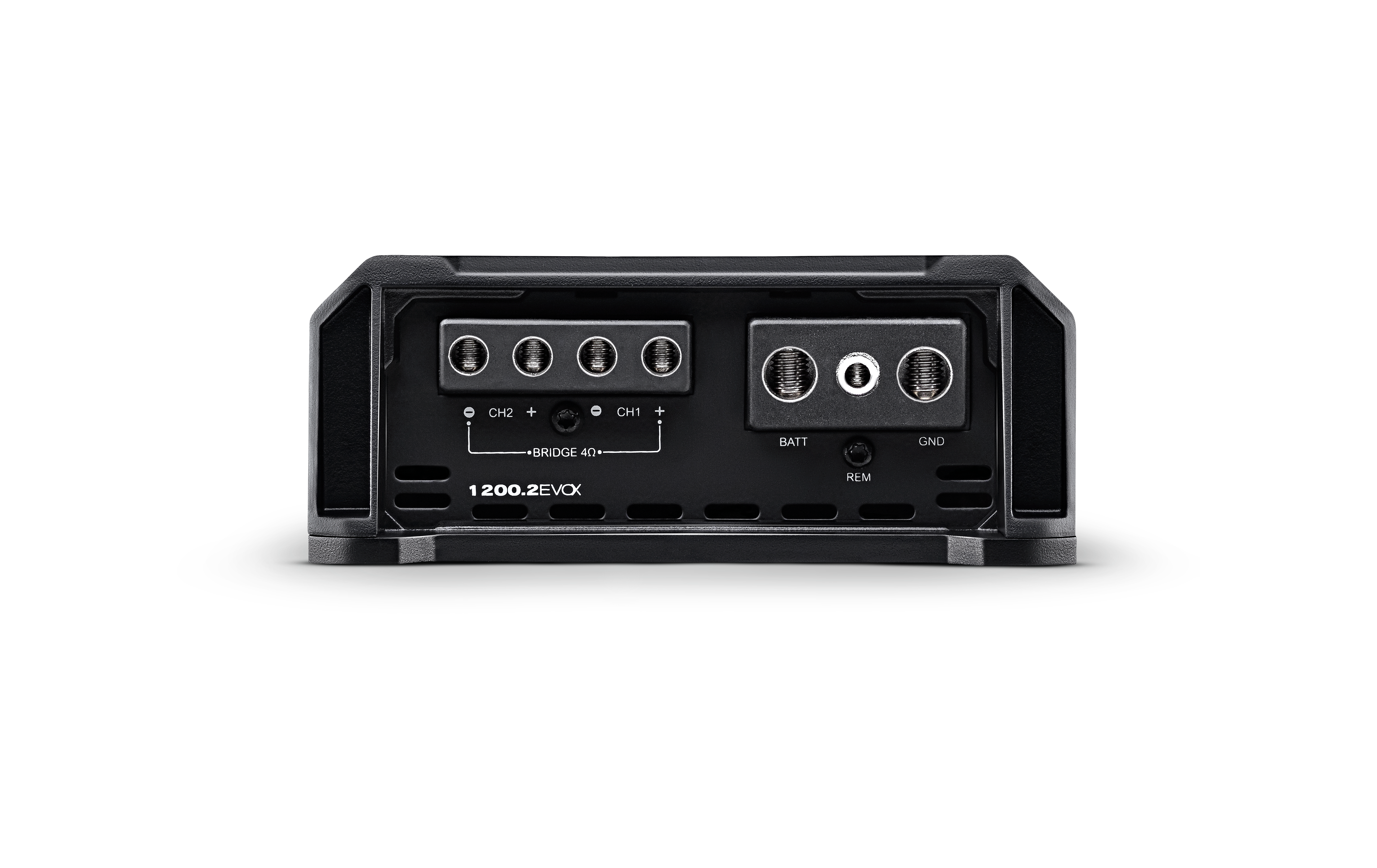

Bridge Power @ 12.6V @ 4Ω: 1 X 792 WRMS
Bridge Power @ 12.6V @ 2Ω: 1 X 1200 WRMS
Power @ 14.4V @ 4Ω: 2 X 291 WRMS
Power @ 14.4V @ 2Ω: 2 X 442 WRMS
Power @ 14.4V @ 1Ω: 2 X 669 WRMS
Bridge Power @ 14.4V @ 4Ω: 1 X 883 WRMS
Bridge Power @ 14.4V @ 2Ω: 1 X 1338 WRMS
Operating Voltage: 8V – 16V
Current Draw (Music): 57 A
Current Draw (Max): 115 A
Recommended Fuse (Music): 60 A
Total Efficiency: 83%
Damping Factor: 200
Frequency Response (-3dB): 5Hz – 22kHz
SNR: 91dB

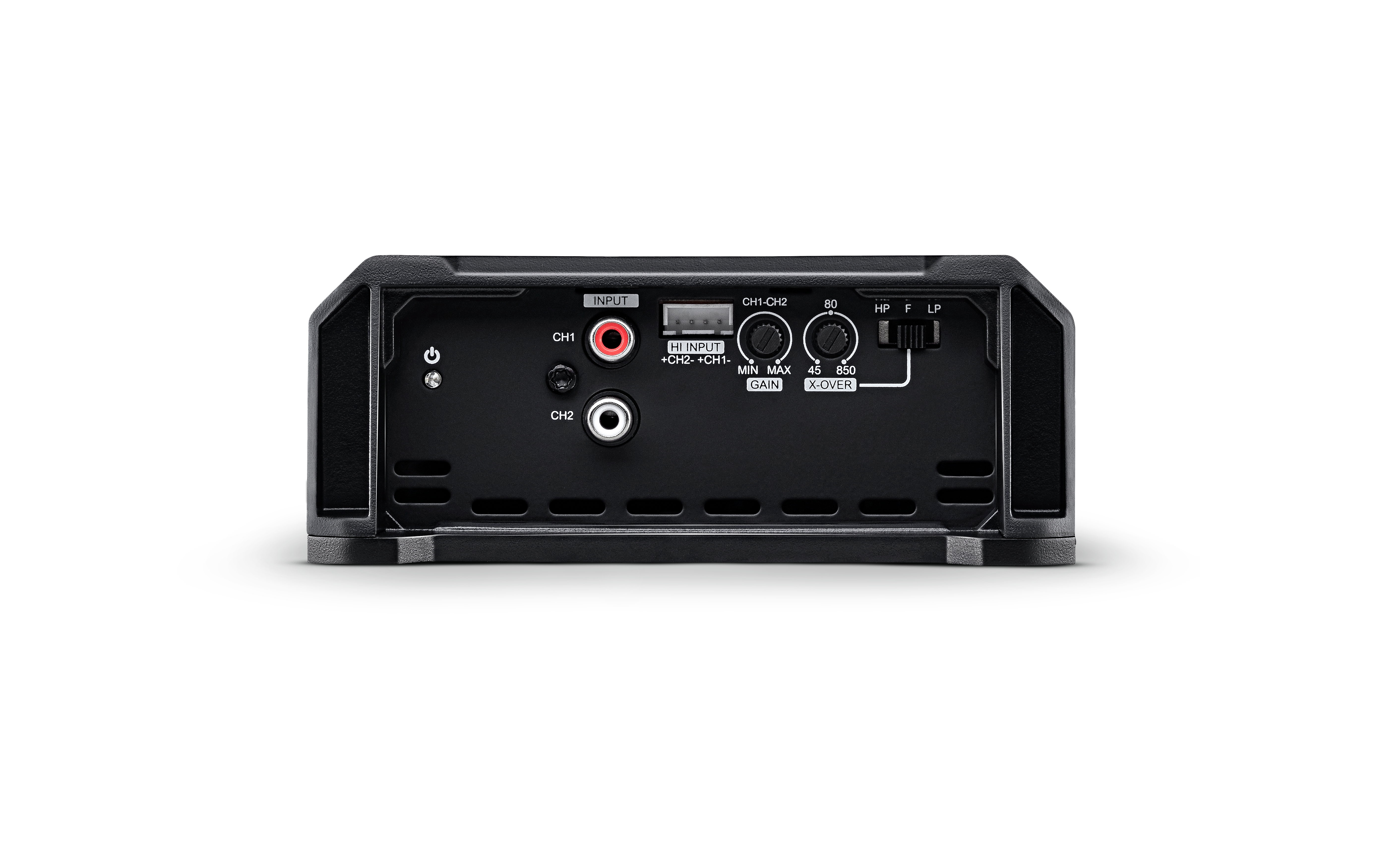

Crossover HPF: 45Hz – 850Hz
Crossover LPF: 45Hz – 850Hz
THD + N (10% Rated Power): 0.1%
Product Dimensions: 7.1 x 5.4 x 2.2 in
Product Dimensions: 18.1 x 13.6 x 5.5 cm

Älä kytke vahvistinta alle nimelliskuorman!

Do not run your amp under rated impedance!.
