AMPIRE Full HD screen 18,5″
EAN: 4260052636190
OHV185-HD
18,5″
Full HD screen
1920x1080P
Hdmi input
Läs Mera
4 990,00 kr
Beskrivning
Teknisk information

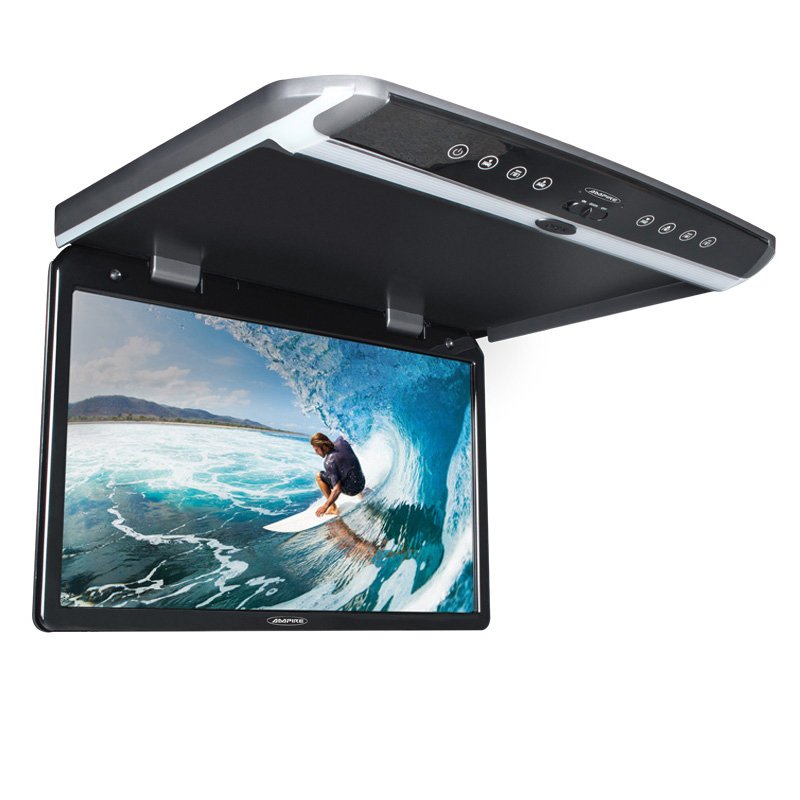

The OHV185-HD monitor from AMPIRE is an ultra-flat HD monitor with a height of just 30mm for vans and buses. It has an HDMI and an RCA video input. You can also play various video, audio and image formats via the USB interface.
All connections are not located on the housing, but are led out as a cable harness on the bottom of the device. This enables professional and long-lasting installation with invisible cabling.
The new AMPIRE displays are optimized for high definition (HD) display, so you can experience applications, television, films and video games in superior image quality and razor-sharp resolution - for the ultimate entertainment while driving. The new matt display surface largely prevents annoying light reflections.
All connections are not located on the housing, but are led out as a cable harness on the bottom of the device. This enables professional and long-lasting installation with invisible cabling.
The new AMPIRE displays are optimized for high definition (HD) display, so you can experience applications, television, films and video games in superior image quality and razor-sharp resolution - for the ultimate entertainment while driving. The new matt display surface largely prevents annoying light reflections.
EQUIPMENT
- Integrated lighting via 8 LEDs (can be switched off)
- Integrated blue ambient lighting (can be switched off)
- Control buttons with blue night lighting
- Infrared remote control
VIDEO
- Inputs: HDMI, AV (cinch), USB (all connections on the back of the device on the cable harness)
- AV- Video output via RCA, but only if the AV video input is selected (not for HDMI and USB)
AUDIO
- Audio output in stereo via RCA. We recommend connecting this output to the AUDIO AUX of your car radio.
- Infrared transmitter for optional wireless headphones (item number: HP301) with two adjustable infrared channels: A (2.8MHz + 2.3MHz.) or B (3.8MHz + 3.2MHz.) -
With the integrated FM transmitter you can transmit the sound as Play an FM radio station on the car radio. The following FM frequencies can be set: 87.7, 87.9, 88.0, 88.1, 88.2, 88.3, 88.4, 88.5 and 88.6 MHz. We recommend using the FM transmitter for sound transmission only as an emergency solution. Because the limited sound quality of FM is not high quality.
USB INPUT
- Video: MPEG1/2/4, RM, RMVB, MOV, DIVX, MJPEG
- Audio: WMA, MP3, M4A, AAC
- Images: BMP, JPEG, GIF, PNG, TIFF
- supports USB 2.0 sticks
LCD - DISPLAY
- Screen diagonal: 47cm (18.5″)
- New AUO/Innolux High Definition LCD digital panel
- LED backlight
- Resolution: 1920 x 3 (RGB) x 1080 pixels
- Brightness: 250 nits
- Contrast: 600:1
- horizontal viewing angle : 180°
- vertical viewing angle: 170°
- 262,144 / 16,777,216 colors (18-bit / 24-bit)
- Video standard: PAL/NTSC
- Aspect format switching 16:9 and 4:3
- Our monitors are subject to ISO 9241-307, Pixel Defect Class II
INSTALLATION NOTE
When installing the monitor, please note that the included mounting plate must be installed. If the mounting plate is missing, the monitor housing could warp and other problems could arise.
OTHER DATA
- Operating voltage: 11-14 volts DC
- Maximum current consumption: 1.5A
- Quiescent current with ignition on: 0.066A
- Quiescent current with ignition off: 0.00A
- Operating temperature: -10°C to +70°C
- Dimensions of monitor closed: 482x365x30mm
- Dimensions of monitor open: 482x365x298mm
- Opening angle of the monitor: 180°
- Weight: 5.4kg
- 2.25 meter connection cable
