Helix AAC.3 HP
EAN: 4057204352004
AAC.3 HP
Helix Aktiv Controlled Highlevel lågnivåomvandlare
Läs Mera
1 st
990,00 kr
Beskrivning
Teknisk information

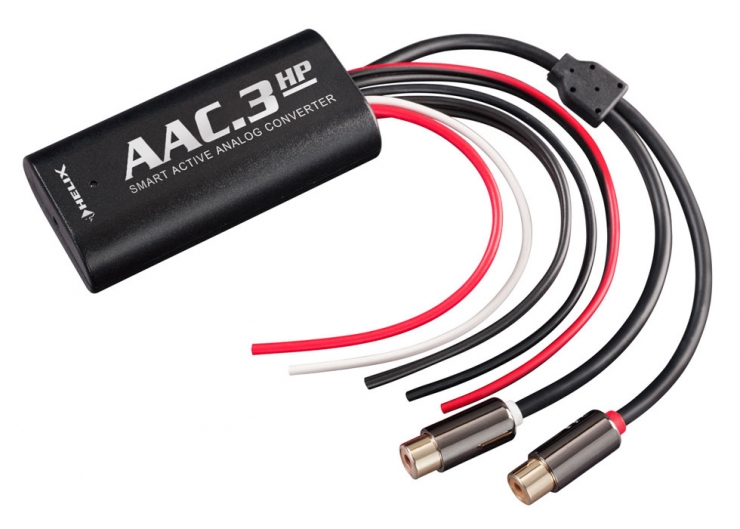

Signal converter for generating a stereo preamplifier signal from the speaker signal of the car radio or factory installed amplifier – a perfect match for upgrading factory sound systems“ADEP.3 circuit” to bypass radio diagnostic systems“Double Activation Circuit” – generates a +12 V remote signal in two different ways to turn on connected amplifiers
Excellent sound quality thanks to high resolution frequency response (18 Hz - 80 kHz)Made in Germany
Excellent sound quality thanks to high resolution frequency response (18 Hz - 80 kHz)Made in Germany
Max. speaker input level25 Volts (= 155 Watts / 4 Ohms)
Input impedance13 Ohms
Max. output level4.0 Volts
Frequency response18 Hz - 80,000 Hz
Max. current for remote output200 mA
Operating voltage7 - 18 Volts
Dimensions (H x W x D)77 x 37 x 20 mm /
3.03 x 1.46 x 0.79″.
Input impedance13 Ohms
Max. output level4.0 Volts
Frequency response18 Hz - 80,000 Hz
Max. current for remote output200 mA
Operating voltage7 - 18 Volts
Dimensions (H x W x D)77 x 37 x 20 mm /
3.03 x 1.46 x 0.79″.
