Helix Connect CWK POR3.W-225PC - Porsche
EAN: 4057204355128
CWK POR3.W-225PC
Helix COMPOSE Connect wire Porsche
Length: 0.225 m
Läs Mera
1 st
179,00 kr
Beskrivning
Teknisk information
HELIX CWK POR3.W-225PC

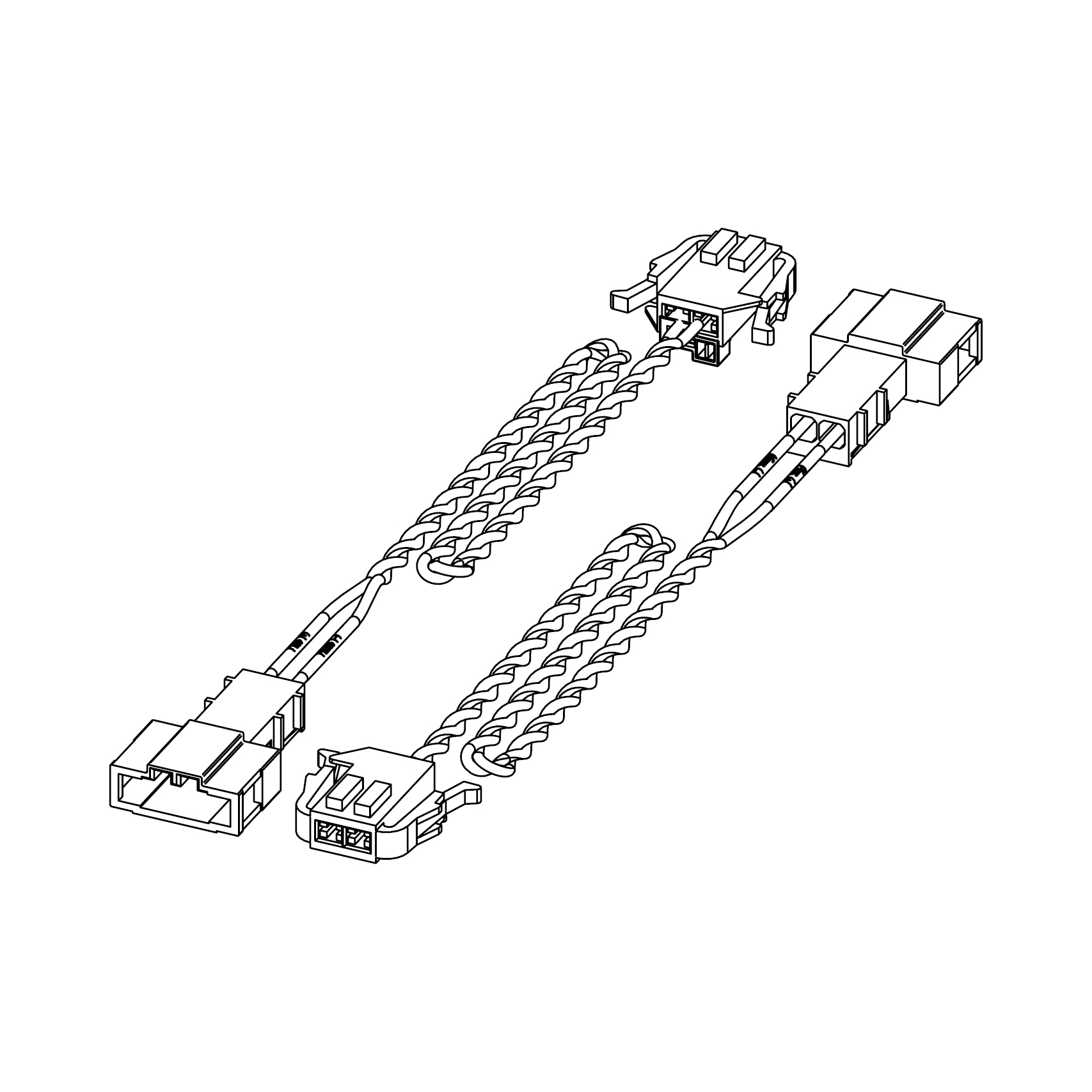

This WireKit is used to connect a HELIX COMPOSE speaker with ProConnect terminal to the original wiring harness in the most comfortable way. With manufacturing according to the high standards of the automotive industry, these adaptor cables meet all requirements for the harsh environmental conditions that installers are facing in vehicles every day.
Note: When replacing a car′s original speaker with a HELIX COMPOSE speaker, it is essential to ensure that the high- and lowpass filters in the preconnected DSP or DSP amplifier are correctly set in an active configuration. Alternatively, a suitable external crossover must be used to prevent damage to the speaker.
Features
Cable for connecting COMPOSE speakers with ProConnect terminal to the vehicles original speaker wiring harness
Connectors according to automotive standards for safe, reverse polarity protected connection
This WireKit is used to connect a HELIX COMPOSE speaker with ProConnect terminal to the original wiring harness in the most comfortable way. With manufacturing according to the high standards of the automotive industry, these adaptor cables meet all requirements for the harsh environmental conditions that installers are facing in vehicles every day.
Note: When replacing a car′s original speaker with a HELIX COMPOSE speaker, it is essential to ensure that the high- and lowpass filters in the preconnected DSP or DSP amplifier are correctly set in an active configuration. Alternatively, a suitable external crossover must be used to prevent damage to the speaker.
Features
Cable for connecting COMPOSE speakers with ProConnect terminal to the vehicles original speaker wiring harness
Connectors according to automotive standards for safe, reverse polarity protected connection
Technical data
Cable harness length 0.225 Meters / 0.7 feet
Connections 1 x Porsche-specific plug
1 x COMPOSE ProConnect plug
Compatibility
Speakers:
Ci7 W130-S3
Ci7 W165FM-S3
Ci7 W200FM-S3
Ci3 W130-S3
Ci3 W165FM-S3
Ci3 W165FM-S2
Ci3 W200FM-S3
Ci3 W200FM-S2
Vehicles:
Porsche 911 (991), 09/2011–12/2015 original sound system: Standard Sound System installation position: front subwoofer.
Porsche 911 (991 MKII), 12/2015–12/2019 original sound system: Standard Sound System installation position: front subwoofer.
Porsche 911 (992), 01/2020 onwards original sound system: Standard Sound System installation position: front.
Porsche 911 (992), 01/2020 onwards original sound system: Standard Sound System installation position: front subwoofer.
Porsche Boxster (981), 04/2012–01/2016 original sound system: Standard Sound System installation position: front subwoofer.
Porsche Cayenne (9YA/ 536), 08/2017 onwards original sound system: Standard Sound System installation position: front.
Porsche Cayenne (9YA/ 536), 08/2017 onwards original sound system: Standard Sound System installation position: front subwoofer.
Porsche Cayman (981C), 01/2013–04/2016 original sound system: Standard Sound System installation position: front subwoofer.
Porsche Cayman (982 C / 718 C), 04/2016 onwards original sound system: Standard Sound System installation position: front.
Porsche Cayman (982 C / 718 C), 04/2016 onwards original sound system: Standard Sound System installation position: front subwoofer.
Porsche Macan (95B FL), 05/2017 onwards original sound system: Standard Sound System installation position: front.
Porsche Macan (95B FL), 05/2017 onwards original sound system: Standard Sound System installation position: front subwoofer.
Porsche Panamera (971 FL), 08/2020 onwards original sound system: Standard Sound System installation position: front.
Porsche Panamera (971 FL), 08/2020 onwards original sound system: Standard Sound System installation position: front subwoofer.
Porsche Taycan, 12/2019 onwards original sound system: Standard Sound System installation position: front.
Porsche Taycan, 12/2019 onwards original sound system: Standard Sound System installation position: front subwoofer.
Cable harness length 0.225 Meters / 0.7 feet
Connections 1 x Porsche-specific plug
1 x COMPOSE ProConnect plug
Compatibility
Speakers:
Ci7 W130-S3
Ci7 W165FM-S3
Ci7 W200FM-S3
Ci3 W130-S3
Ci3 W165FM-S3
Ci3 W165FM-S2
Ci3 W200FM-S3
Ci3 W200FM-S2
Vehicles:
Porsche 911 (991), 09/2011–12/2015 original sound system: Standard Sound System installation position: front subwoofer.
Porsche 911 (991 MKII), 12/2015–12/2019 original sound system: Standard Sound System installation position: front subwoofer.
Porsche 911 (992), 01/2020 onwards original sound system: Standard Sound System installation position: front.
Porsche 911 (992), 01/2020 onwards original sound system: Standard Sound System installation position: front subwoofer.
Porsche Boxster (981), 04/2012–01/2016 original sound system: Standard Sound System installation position: front subwoofer.
Porsche Cayenne (9YA/ 536), 08/2017 onwards original sound system: Standard Sound System installation position: front.
Porsche Cayenne (9YA/ 536), 08/2017 onwards original sound system: Standard Sound System installation position: front subwoofer.
Porsche Cayman (981C), 01/2013–04/2016 original sound system: Standard Sound System installation position: front subwoofer.
Porsche Cayman (982 C / 718 C), 04/2016 onwards original sound system: Standard Sound System installation position: front.
Porsche Cayman (982 C / 718 C), 04/2016 onwards original sound system: Standard Sound System installation position: front subwoofer.
Porsche Macan (95B FL), 05/2017 onwards original sound system: Standard Sound System installation position: front.
Porsche Macan (95B FL), 05/2017 onwards original sound system: Standard Sound System installation position: front subwoofer.
Porsche Panamera (971 FL), 08/2020 onwards original sound system: Standard Sound System installation position: front.
Porsche Panamera (971 FL), 08/2020 onwards original sound system: Standard Sound System installation position: front subwoofer.
Porsche Taycan, 12/2019 onwards original sound system: Standard Sound System installation position: front.
Porsche Taycan, 12/2019 onwards original sound system: Standard Sound System installation position: front subwoofer.
