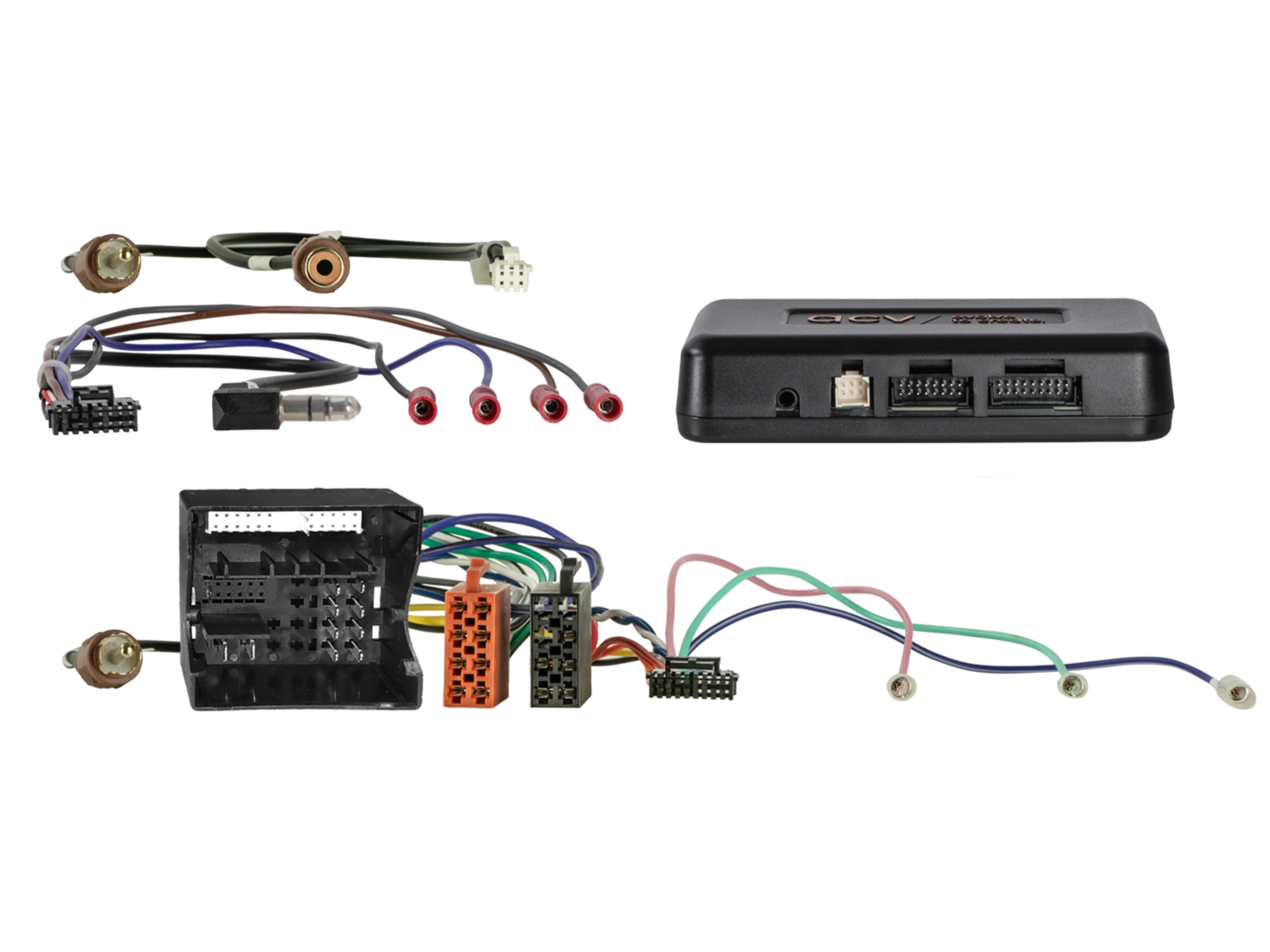

ACV 43xvw04 i-dapter VW Crafter II (SY/SZ) 2017 - 2025 - 52Pin Quadlock Multilead
EAN: 4026724677478
43xvw04
i-dapter
VW Crafter II (SY/SZ) 2017 - 2025
MAN TGE / Seat / Skoda / VW
Seat Arona / Ateca / Ibiza / Leon
Skoda Fabia III / Rapid
VW Caddy / Crafter II / Golf VII / Golf Sportsvan / Grand California / Passat / Polo V / Polo VI / T6.1 / Taigo / Touran
Läs Mera
1 st
1 899,90 kr
Beskrivning
i-dapter MAN TGE / Seat / Skoda / VW
The i-dapter retains the visual representation of the vehicle′s functions, such as parking sensors, air conditioning and seat heating, when replacing the original radio.
Vehicle-specific settings are supported and are displayed on the retrofit device.
The steering wheel controls function of the vehicle is also supported.
Depending on the vehicle equipment as well as the range of functions and software of the retrofit device, individual operating functions can be omitted or replaced by other functions.
Make sure that the original factory radios and plugs of the adapter shown by us match the equipment of the vehicle.
Note that in some cases, not all features are supported.
For example, Trailer Assist, E Call or other driving assistance and comfort systems.
Before installation, check the vehicle menu for various settings.
Check the function of the settings and the vehicle system before final assembly.
Compatibility:
MAN
MAN TGE 2017 - 2025*/******
Seat
Seat Arona (KJ) 11/2017 - 06/2021*/**
Seat Ateca (5FP) 08/2016 - 08/2020*/**
Seat Ateca (5FP) 08/2020 -2025*/**
Seat Ibiza (6P) 07/2015 - 04/2017*/**/***
Seat Ibiza (KJ) 07/2017 - 03/2021*/**/***
Seat Leon (5F) 11/2012 - 12/2016*/***/****
Seat Leon (5F) 11/2016 - 01/2020*/***/****
Skoda
Skoda Fabia III (5J) 11/2014 - 08/2018
Skoda Fabia III (5J) 08/2018 - 04/2022
Skoda Rapid (NH) 04/2015 - 05/2017
Skoda Rapid (NH) 05/2017 - 02/2019
VW
VW Caddy (SB) 11/2020 - 06/2026*
VW Crafter II (SY/SZ) 03/2017 - 2025*/****
VW Golf VII (AU) 11/2012 - 12/2016
VW Golf VII (AU) 03/2017 - 05/2020*/*******
VW Golf Sportsvan (AUV) 03/2014 - 10/2017*/*******
VW Golf Sportsvan (AUV) 10/2017 - 06/2020*/*******
VW Grand California (SY/SZ) 03/2019 - 06/2024*/****
VW Passat (B8) 10/2014 - 05/2019*
VW Polo V (6R) 04/2014 - 07/2017*/*******
VW Polo VI (AW) 11/2017 - 05/2021*/*******
VW T6.1 (7HC) 11/2019 - 04/2024*
VW Taigo (CS) 10/2021 - 2025
VW Touran (5T) 09/2015 - 2025*/****
Technical details:
Connector: 52 Pin Quadlock VAG Connector
Connection: OEM steering wheel controls 3.5mm jack / loose cable
Connection: OEM rear view camera RCA(m) ochre
Vehicles with MIB-II platform
Enable and configure rear camera input in the retrofit device menu
Connection i-dapter:
purple/white: +12V reversing signal
RCA(m) ochre: Rear view camera input Retrofit device
Visualization of i-adapter settings retrofit device rear camera input
Visualization OPS Retrofit Device Rear Camera Input
Visualization of climatronics retrofit device rear view camera input
Camera image or i-dapter settings and visualization not available:
Connection of an additional ground contact RCA outer conductor to the camera connection and device connection
Vehicles with steering wheel controls settings i-dapter:
steering wheel controls Track before press and hold
Alternative with article: 43x-remote
Vehicles without steering wheel controls required accessories:
i-dapter Accessories Remote Control Item: 43x-remote
Depending on the OEM vehicle equipment and software:
Not all car settings are supported
Not all vehicle functions are supported
Not all vehicle information is visualized
Driver assistance systems are not supported
Vehicles with parking assistance and front PDC after starting the vehicle, the front PDC is displayed
Exit the display via vehicle PDC button
+12V reversing signal is switched off from 3 km/h
Vehicles with E-Call:
E-Call Maintenance MAN/Seat/Skoda/VW 52 Pin Quadlock Item: 1424-28
Vehicles with / without OEM sound system
Vehicles without MOST OEM sound system
Not for vehicles with:
with OEM MOST sound system
with radio preparation
without any pre-installation ex works steering wheel controls / loudspeaker / radio
Dip switch settings for the retrofit device manufacturer (see BDA)
Functions and signals:
Re-import vehicles or vehicles with different software may be incompatible in functions.
red: +12V ignition terminal 15
orange: +12V lighting terminal 58
purple/white: +12V reversing signal
pink: speed signal
green: ground GND handbrake signal
Power handling outputs: 250 mA max.
Current requirement greater than 250 mA:
1 relay coil resistance 75 ohm min.
2 relays coil resistance 150 ohm min.
steering wheel controls
Visualization Climatronics
Visualization optical PDC
CAR Menu Vehicle Settings Supported
*MIB II OEM Platform
**5″ OEM touchscreen color monitor
6.5″ OEM Touchscreen Color Monitor
8″ Media Plus OEM Device / Composition Media OEM Device
8″ Composition Media OEM Device
8″ Media Advanced OEM Device
Composition Media OEM Device
Optional:
E-Call Maintenance MAN/Seat/Skoda/VW 52 Pin Quadlock Item: 1424-28
