ACV 621190-37-3 2-DIN Kit Mercedes Vito 2014-2024 ISO SWC/antenna passiv

Note:

CAN Bus

connector: ISO Mercedes
connector: OEM SWC 3,5mm Jack / loose wire
connector: OEM antenna Fakra(m) DIN(m)

check dip switches for retrofit HU

vehicles with +12V continuous current cut-off funktion clamp 30.
connect +12V continuous current clamp 30 batterie fused

vehicles without SWC functions:
code vehicle to Audio 15 OEM HU for SWC functions if possible

vehicles with open dash check CAN bus connection and ISO plug assignment before installation:
incorrect connection damages the interface

ISO plug assignment not compatible:
Pin 7: +12V ignition current terminal 15
Pin 6: +12V lighting terminal 58
CAN Bus connection CAN Bus distributor / climate control system

diagnostic LED:
blue flashing CAN Bus search
blue constant CAN Bus active
red +12V ignition current active

Vehicle application:

Mercedes Vito (W447) 10/2014 - 02/2019
Mercedes Vito (W447) 05/2019 - 01/2024

Colour: black

Mounting cutout HU display: 173mm x 98,5mm

Following signals are provided:

Reimported vehicles or vehicles with different software may be incompatible in functions.

pink: +12V ignition clamp 15 1,5A max.
orange: +12V illumination clamp 58 0,1A max.
white: +12V reverse gear signal 1,5A max.
yellow/green yellow/red: speed pulse signal

SWC

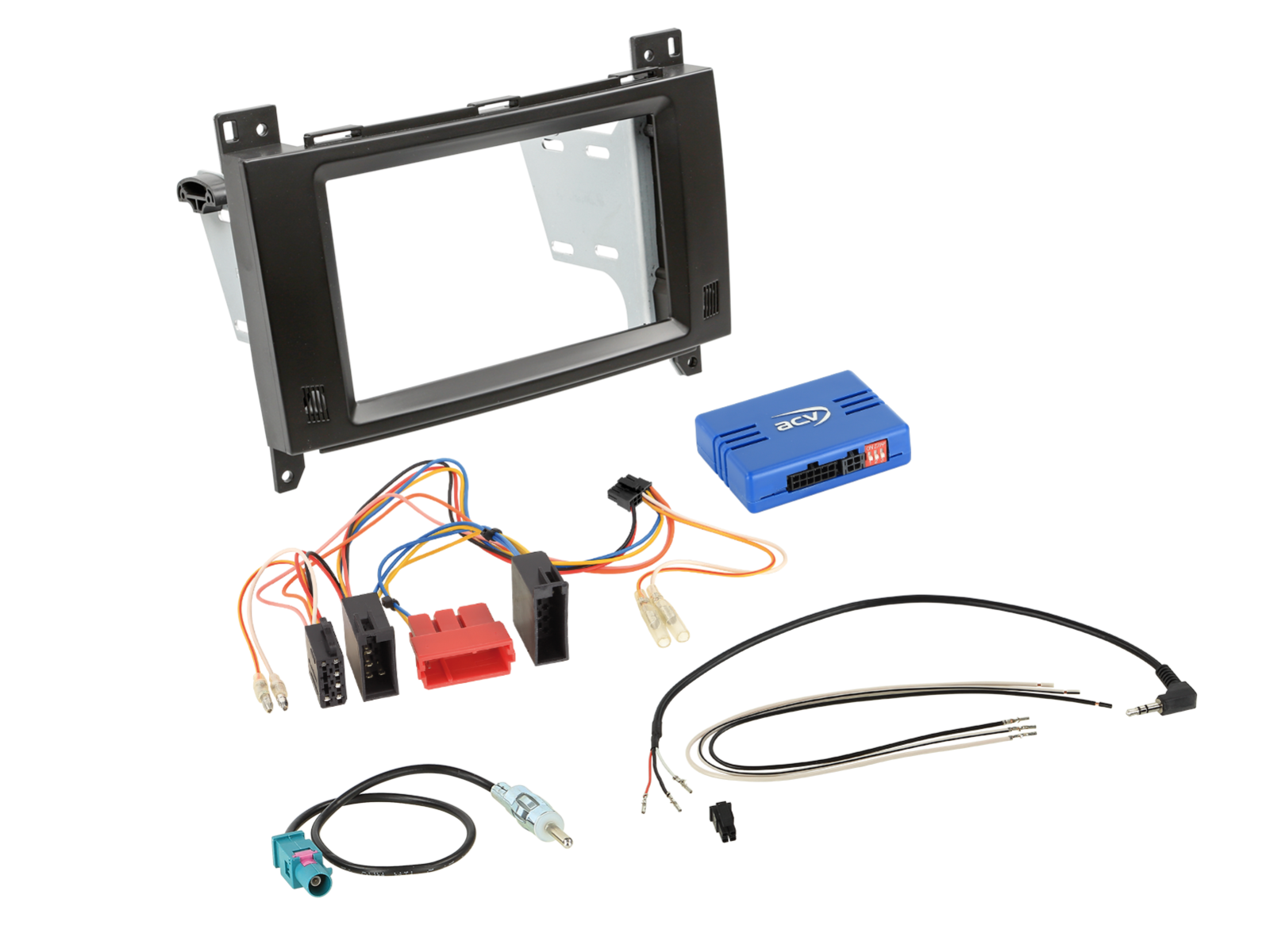

Scope of delivery:

2-DIN facia plate Mercedes different vehicles black item: 381190-37-1
SWC Mercedes different vehicles ISO/10 Pin ISO/Mini ISO bulk item: 42a-1190-001-0
SWC lead 42a/42cx401 Multilead different HU item: 42arc100
Antenna adapter Fakra(mDIN(m) passive bulk item: 1524-01-0
