ACV 621190-27-3 2-DIN kit Mercedes Sprinter(W906)/VW Crafter I SWC/antenna
EAN: 4026724673951
621190-27-3
2-DIN kit
Mercedes Sprinter(W906)/VW Crafter
2-din facia plate
Steering wheel adapter
Antenna adapter
Läs Mera
1 st
1 459,90 kr
Beskrivning
Teknisk information
2-DIN kit Mercedes Sprinter(W906)/VW Crafter
This kit allows you to use your car′s original steering wheel controls with your new car stereo. An antenna adapter and facia plate suitable for your vehicle is also included.
This kit allows you to use your car′s original steering wheel controls with your new car stereo. An antenna adapter and facia plate suitable for your vehicle is also included.
Note:
CAN Bus
connector: 40 Pin Quadlock Mercedes
connector: OEM SWC 3,5mm Jack / loose wire
connector: OEM antenna Fakra(m)(2x) DIN(m)
vehicles Mercedes with 2-DIN Audio 20 OEM HU
vehicles Mercedes with 2-DIN Audio 50 APS Comand NTG2 / NTG2.5 OEM Sat Nav
vehicles Mercedes without open dash
vehicles Mercedes without 1-DIN OEM HU
vehicles with Audio 50 APS Comand NTG2 / NTG2.5 OEM Sat Nav:
clock adjustment not supported vehicles code to Audio 20 OEM HU if possible
vehicles VW with RCD3002 OEM HU
vehicles VW wiith RNS 4001 / RNS 5001 OEM Sat Nav
vehicles VW without constant power switch off
dip switch settings for the retrofit device manufacturer (look into the manual)
Vehicle application:
Mercedes
Mercedes Sprinter (W906) 04/2006 - 08/2013
Mercedes Sprinter (W906) 08/2013 - 05/2018
VW
VW Crafter I (2EC/2EK/2F) 03/2006 - 07/2011
VW Crafter I (2EC/2EK/2F) 07/2011 - 11/2016
Colour: black
Mounting cutout HU display: 172mm x 98,5mm
Following signals are provided:
Reimported vehicles or vehicles with different software may be incompatible in functions.
red: +12V ignition clamp 15
orange: +12V illumination clamp 58
purple/white: +12V reverse gear signal
pink: speed pulse signal
green: GND park brake signal
load capacity outputs: 250 mA max.
current requirement more than 250 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.
SWC

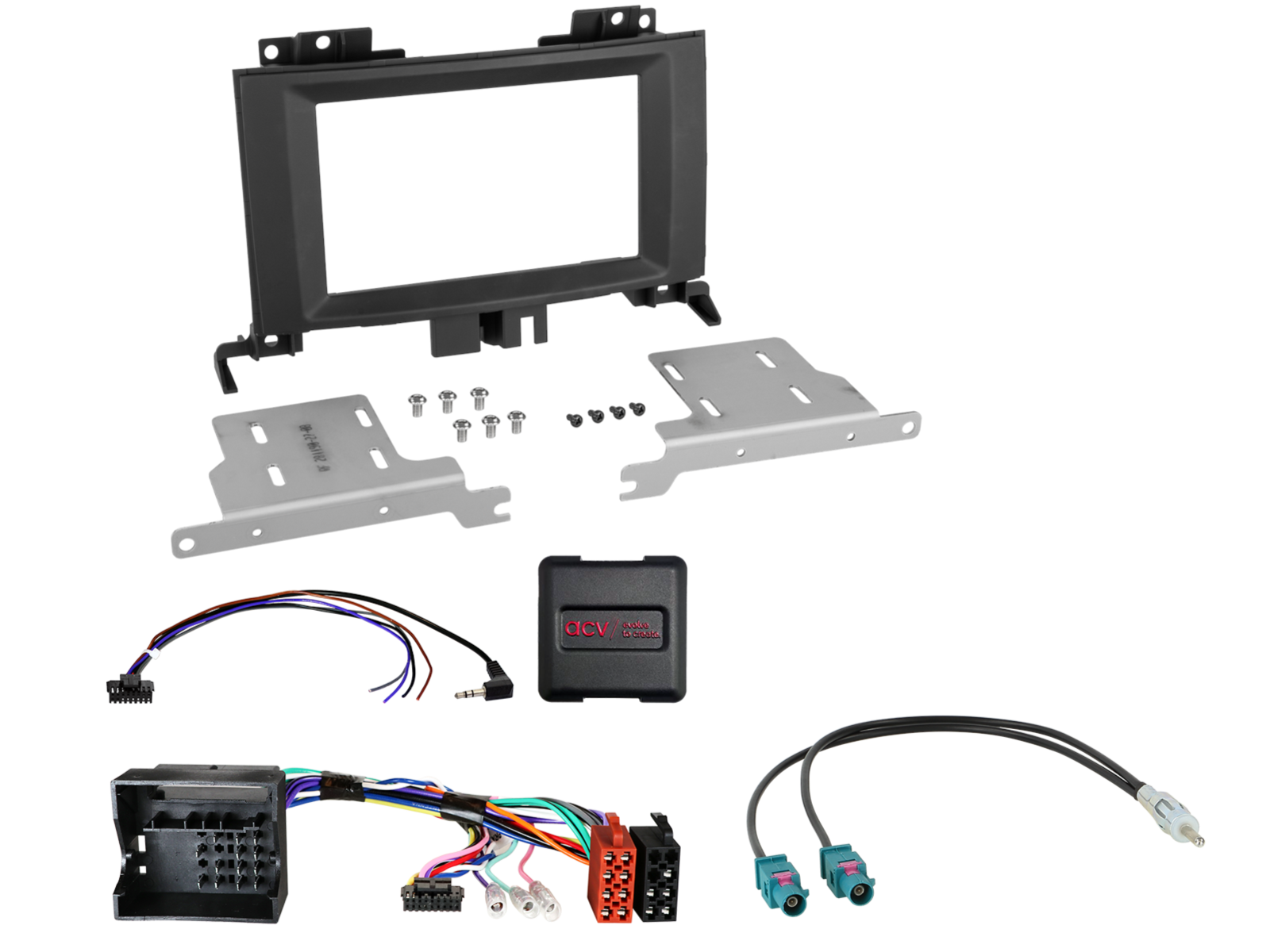

Scope of delivery:
2-DIN facia plate Mercedes Sprinter(W906)/VW Crafter item: 381190-27-3
SWC Mercedes vehicles/Smart 40Pin Quadlock Multilead bulk item: 42xmc001-0
Antenna adapter Fakra(m)(2x)DIN(m) bulk item: 1524-19-0
