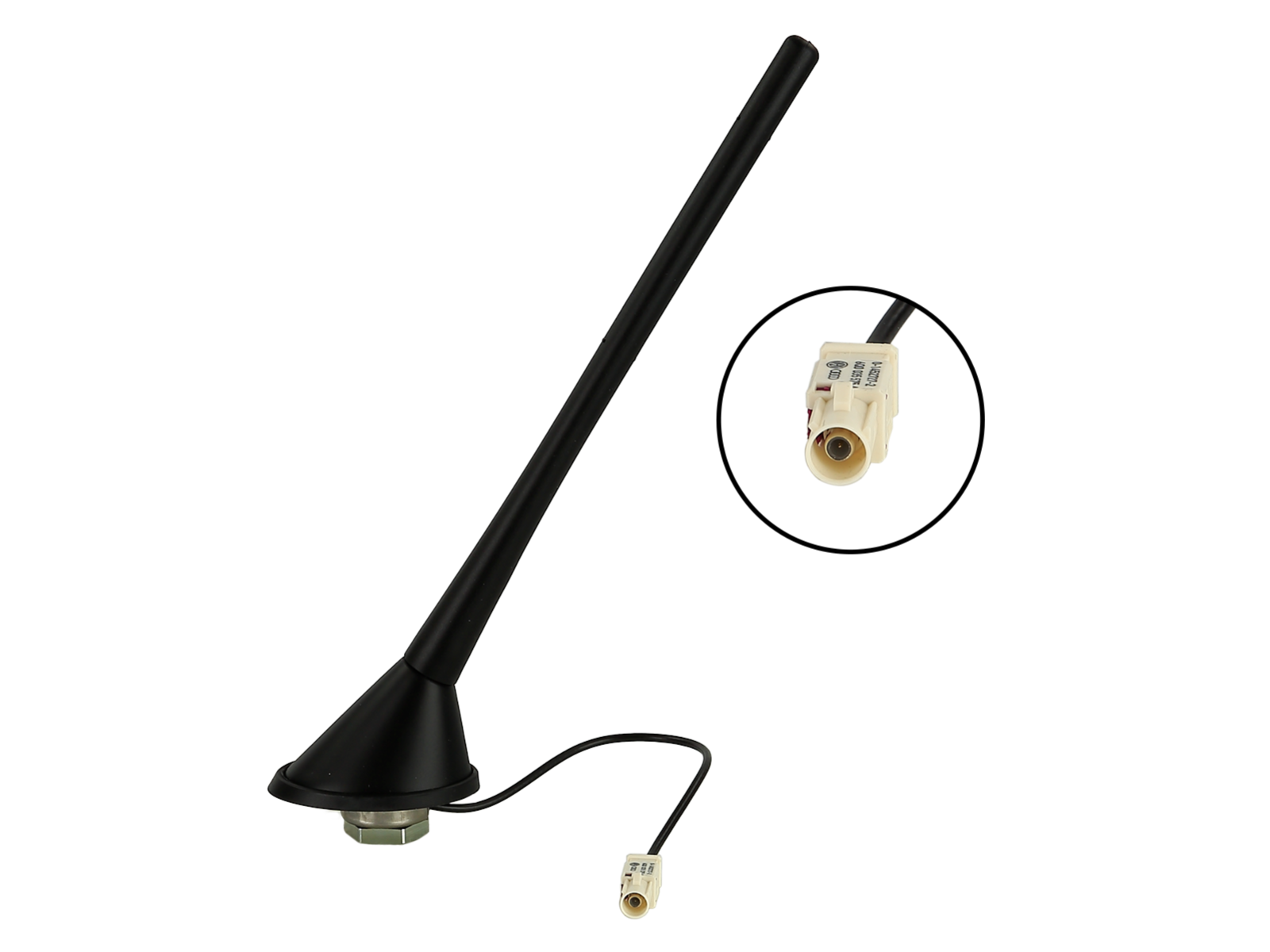

ACV 15-7677865 Roof antenna AM/FM 60° inclination DAB ready passive

Reception Mode:
AM/FM
DAB+

Installation:
installation point: roof rear
drill hole round: 19 mm
drill hole square: 15 mm x 15 mm
rod length: 410 mm
rod inclination: 60°
rod type: smooth
thread: M5

Dimensions:
total high: 250 mm
antenna socket: L = 60 mm / B = 43 mm

Connections:
AM/FM: Fakra B(m) white RG174 / L=180 mm

Frequency range:
AM: 150 kHz - 1710 kHz
FM: 87,5 MHz - 108 MHz

VSWR:
FM: 3:1
