ACV Antennspröt, M5/M6

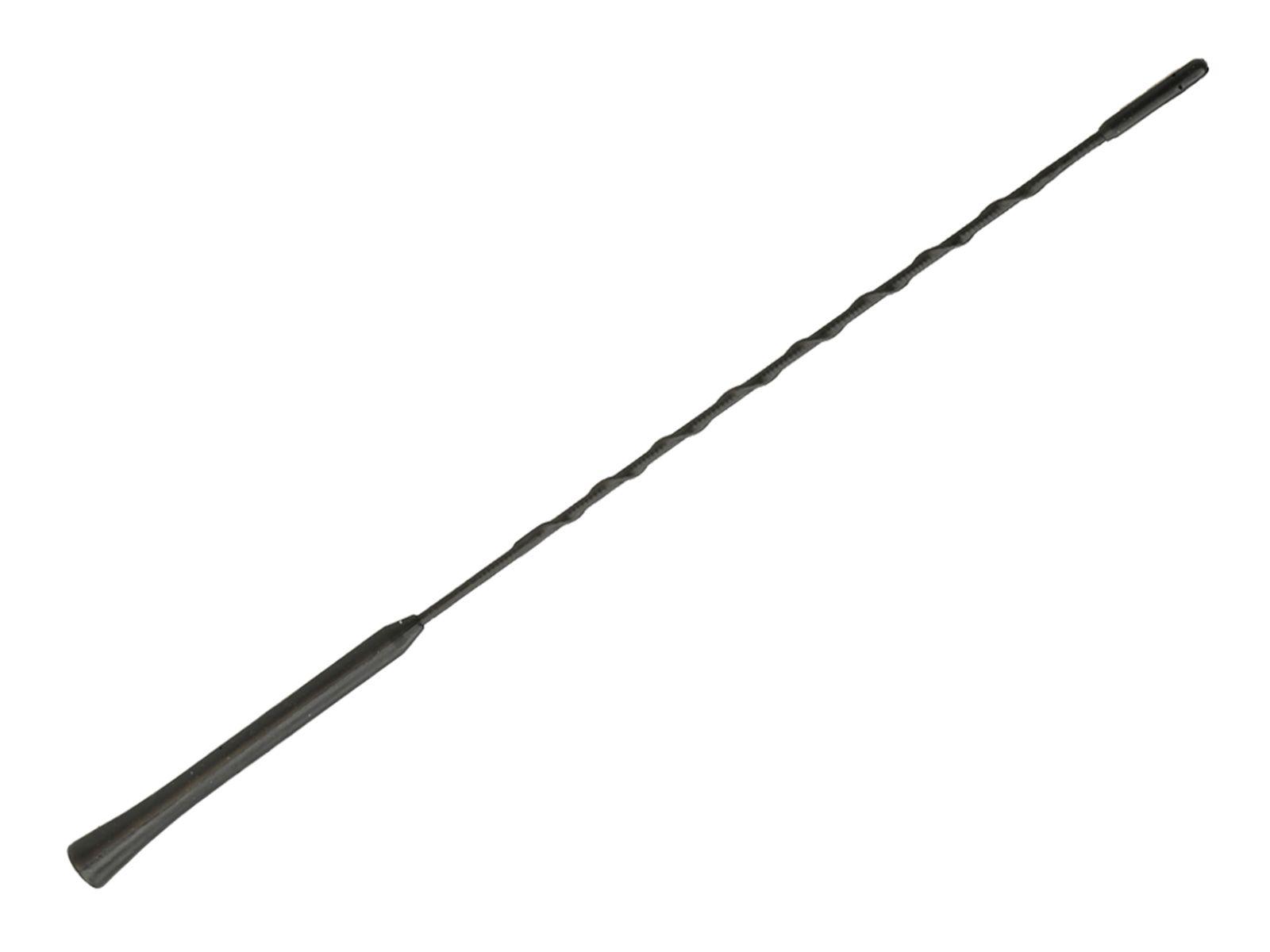

Antenna rod

acv PRO OEM quality

Type: 16V

The acv PRO antenna range made of high-quality materials and components combined with excellent durability through careful assembly achieves maximum reception even under the most difficult conditions.

In order to optimise the reception of antenna systems, care must be taken to ensure an optimal ground connection of the antenna base or the ground band:

Remove existing paint at the contact points with workshop equipment and protect against corrosion with suitable contact paste and also treat the antenna rod thread and the antenna foot thread for contact optimization.

Technical details:
In case of reception problems:

Check antenna cables and antenna dapters for continuity

Check the vehicle for faults caused by retrofit LED lighting
Check the vehicle for faults caused by retrofit voltage converters / power supplies / USB charging adapters
Check the vehicle for interference from retrofit digital power amplifiers

Types of reception:
AM/FM

Dimensions:
Length: 41 cm
Thread: 6 mm inside
Adapter: M6M5 / M6M6 external

Replacement rod for the following antennas:

Roof antenna AM/FM 56° rod inclination 12V external/phantom Article: 152000-31
Roof antenna AM/FM 56° rod inclination DIN(m) 12V external Article: 152000-32
Roof antenna AM/FM 56° rod inclination DIN(m) passive Article: 152000-34
Roof antenna AM/FM 72° rod inclination DIN(m) 12V external Article: 152000-33
Roof antenna AM/FM 72° rod inclination DIN(m) passive Article: 152000-35
Roof antenna AM/FM DAB+ 56° rod inclination DIN(m) 12V external Article: 152000-46
Roof antenna AM/FM DAB+ 72° rod inclination DIN(m) 12V external Article: 152000-47
