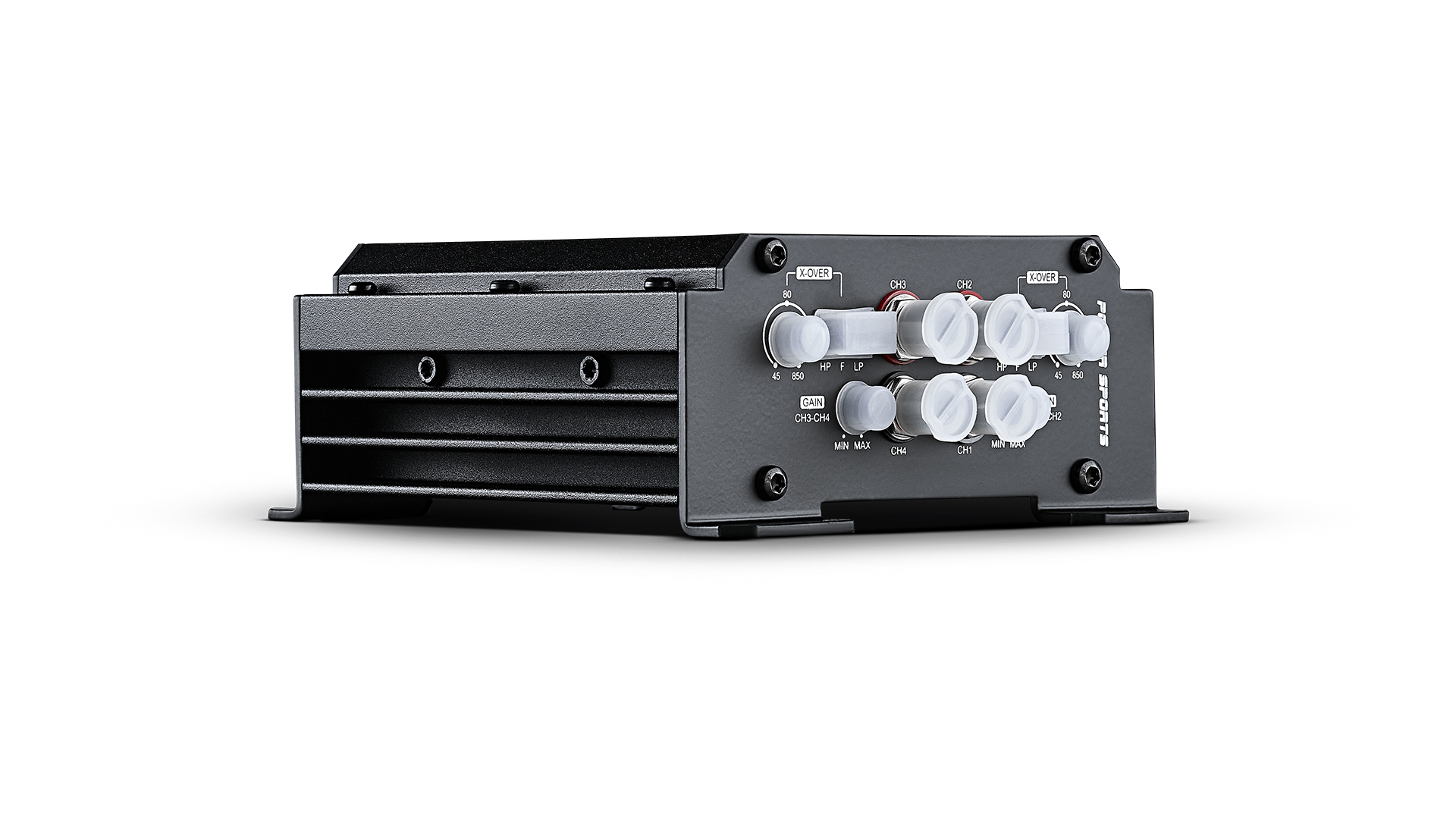

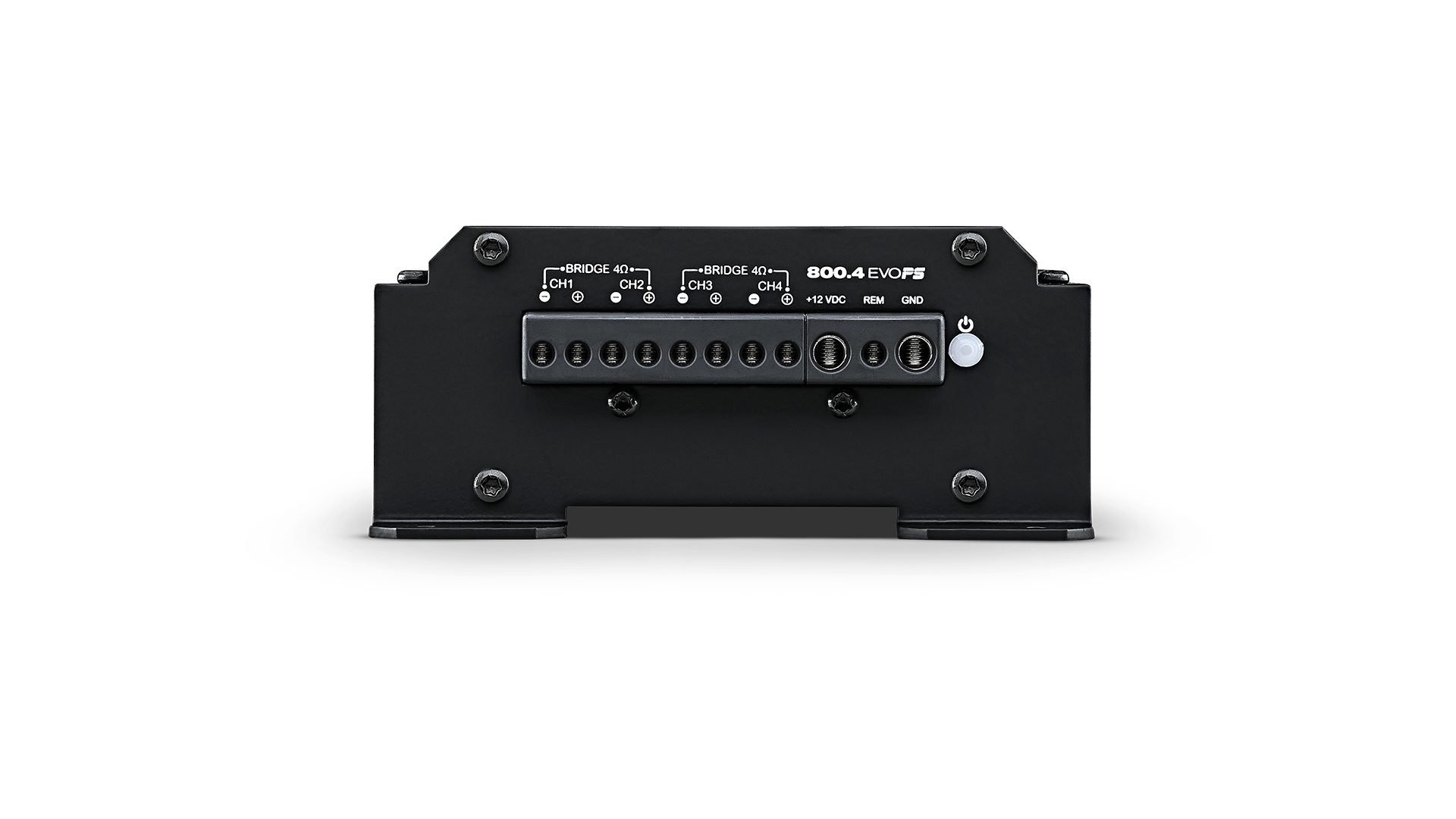

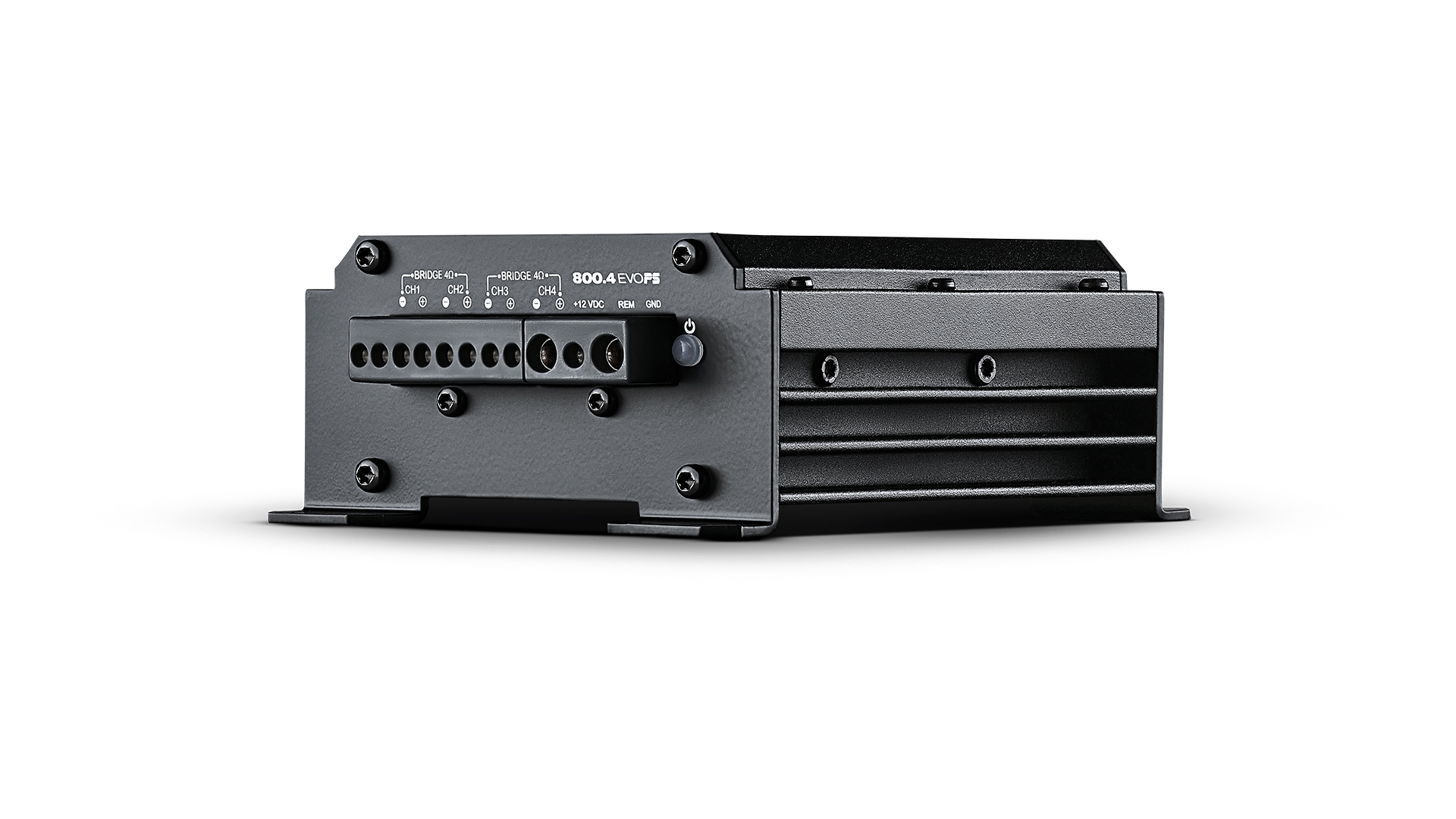

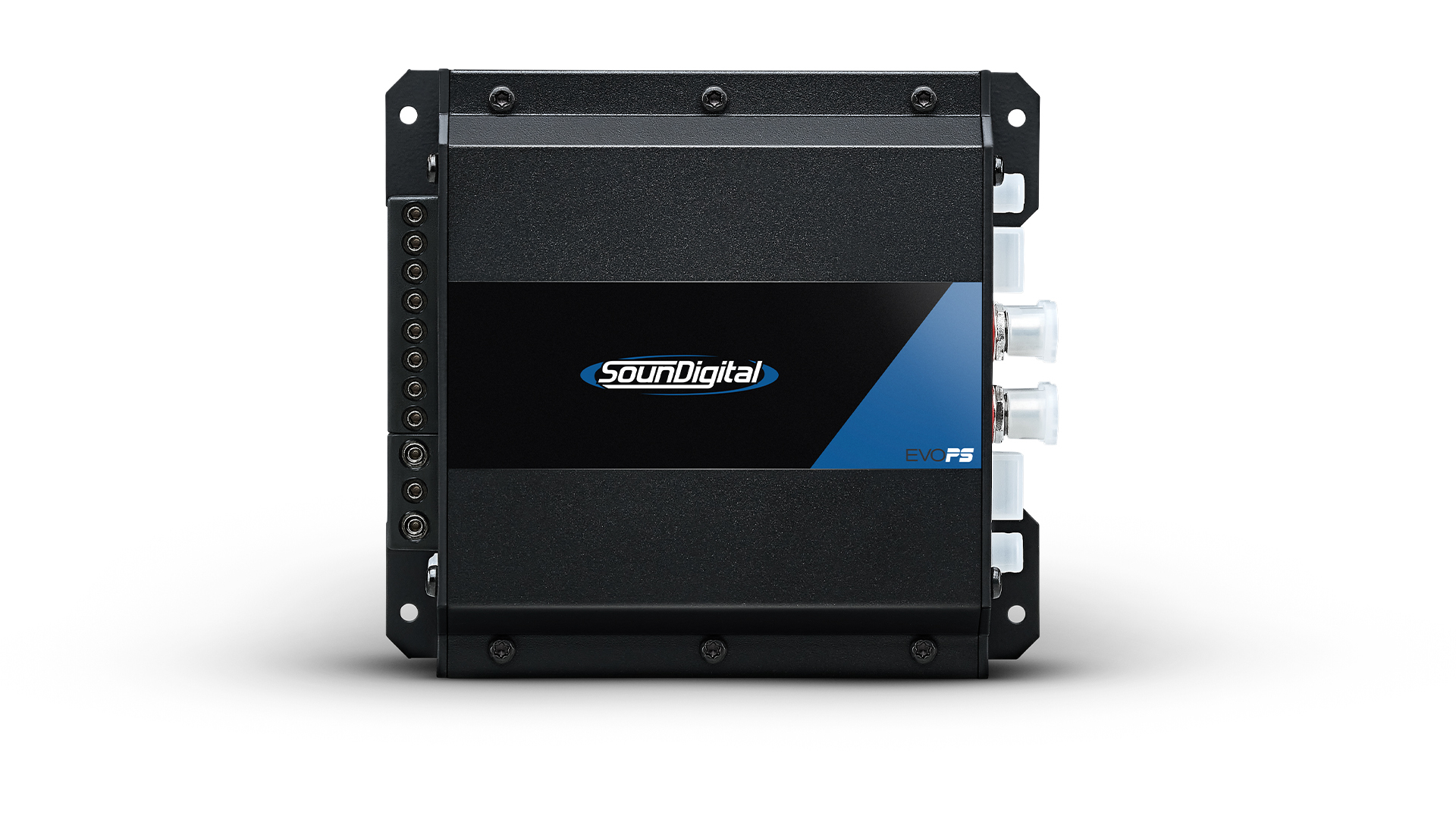

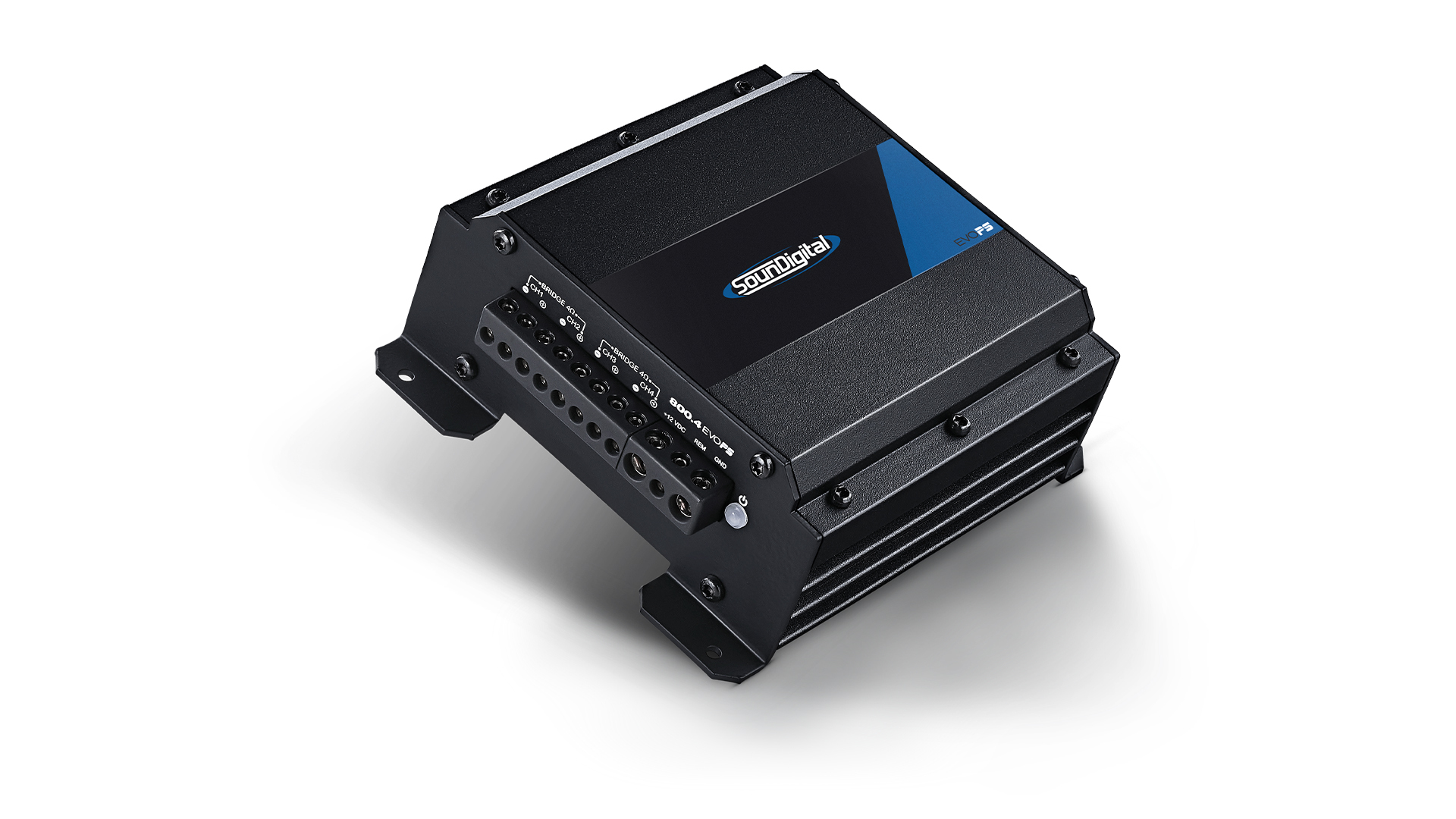

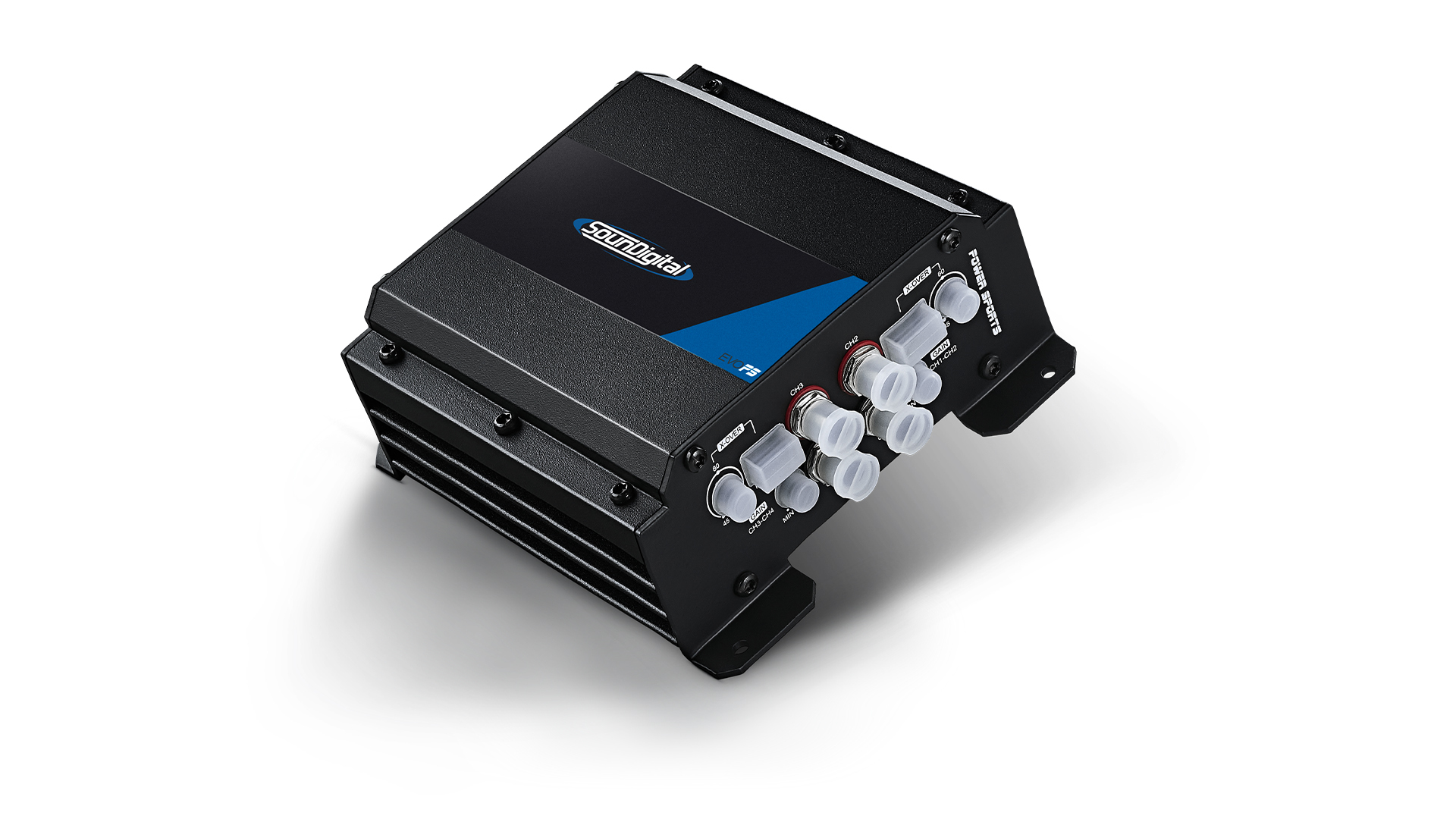

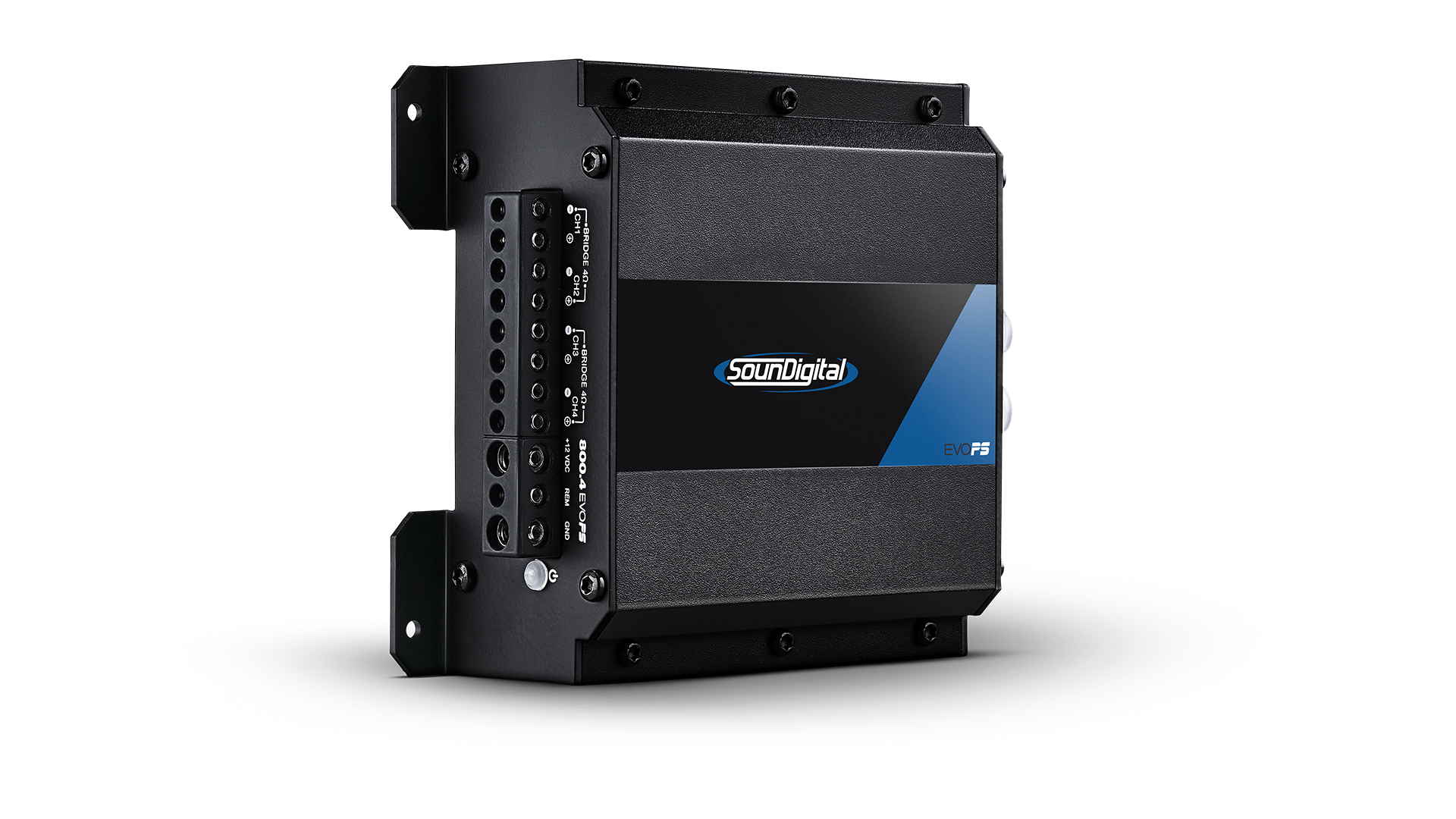

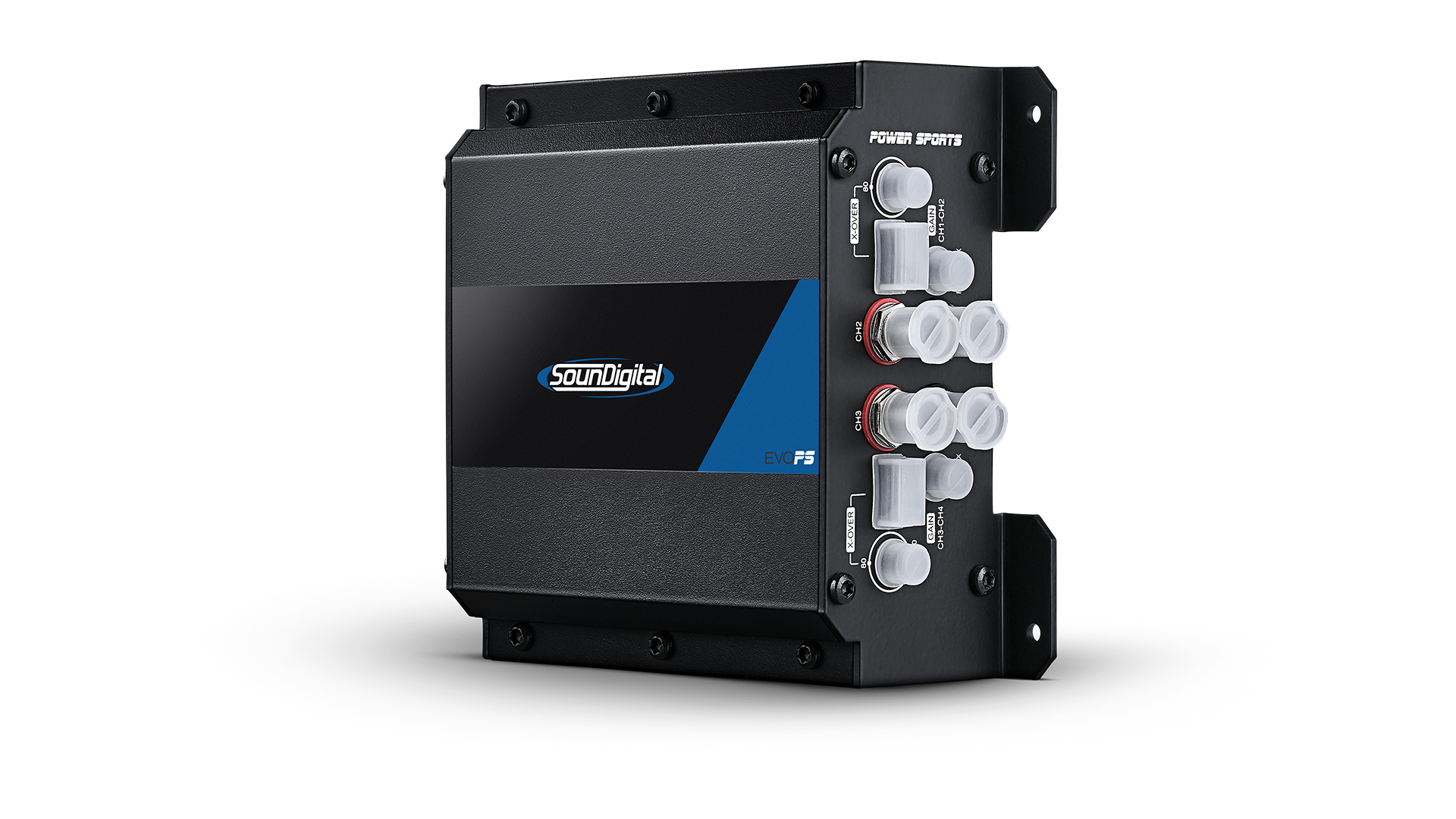

SounDigital SD800.4-4 EVOPS 4 ohm
EAN: 7898644524104
SD800.4-4 EVOPS
4-channel amplifier
4 x 200W or 2 x 400W
IP64 rating
Splash waterproof
4 Ohm model
Läs Mera
1 st
IP64 Rating
4 990,00 kr
Beskrivning
Teknisk information
For use in Power Sports projects, the 800.4 EVOPS is a compact, modern design amplifier that delivers 800W RSM of power distributed over 4 channels.
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for projects in water, clay and other Power Sports settings.
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for projects in water, clay and other Power Sports settings.
800.4 EVOPS – 4 OHMS
Power @ 1Ω: N/A
Power @ 2Ω: 4 X 200W RMS
Power @ 4Ω: 4 X 132W RMS
Bridge Power @ 2Ω: N/A
Bridge Power @ 4Ω: 2 X 400W RMS
Operating Voltage:
8V – 16V
Current Draw (Music):
35A
Current Draw (Max):
70A
Recommended Fuse (Music):
40A
Total Efficiency:
79%
Damping Factor:
200
Frequency Response (-3dB):
5Hz – 22kHz
SNR:
91dB
Crossover
LPF / HPF: 45Hz – 850Hz
Width:
5.1 in / 13 cm
Length:
5.7 in / 14,4 cm
Height:
2.2 in / 5,6 cm
Weight:
0,89 Kg
Power @ 1Ω: N/A
Power @ 2Ω: 4 X 200W RMS
Power @ 4Ω: 4 X 132W RMS
Bridge Power @ 2Ω: N/A
Bridge Power @ 4Ω: 2 X 400W RMS
Operating Voltage:
8V – 16V
Current Draw (Music):
35A
Current Draw (Max):
70A
Recommended Fuse (Music):
40A
Total Efficiency:
79%
Damping Factor:
200
Frequency Response (-3dB):
5Hz – 22kHz
SNR:
91dB
Crossover
LPF / HPF: 45Hz – 850Hz
Width:
5.1 in / 13 cm
Length:
5.7 in / 14,4 cm
Height:
2.2 in / 5,6 cm
Weight:
0,89 Kg
