GROUND ZERO GZCM 6.5N-PROX
EAN: 4037072024975
GZCM 6.5N-PROX
6,5″
Midrange speaker
400W
Neodymium motor
Läs Mera
2 250,00 kr
Beskrivning
Teknisk information
Bruksanvisningar
400 Watts max

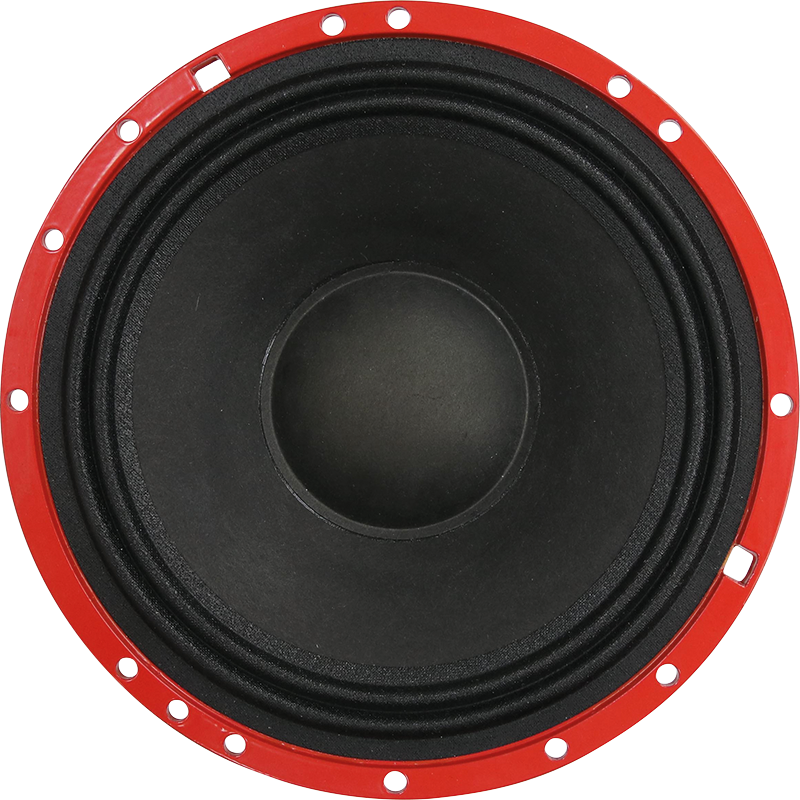

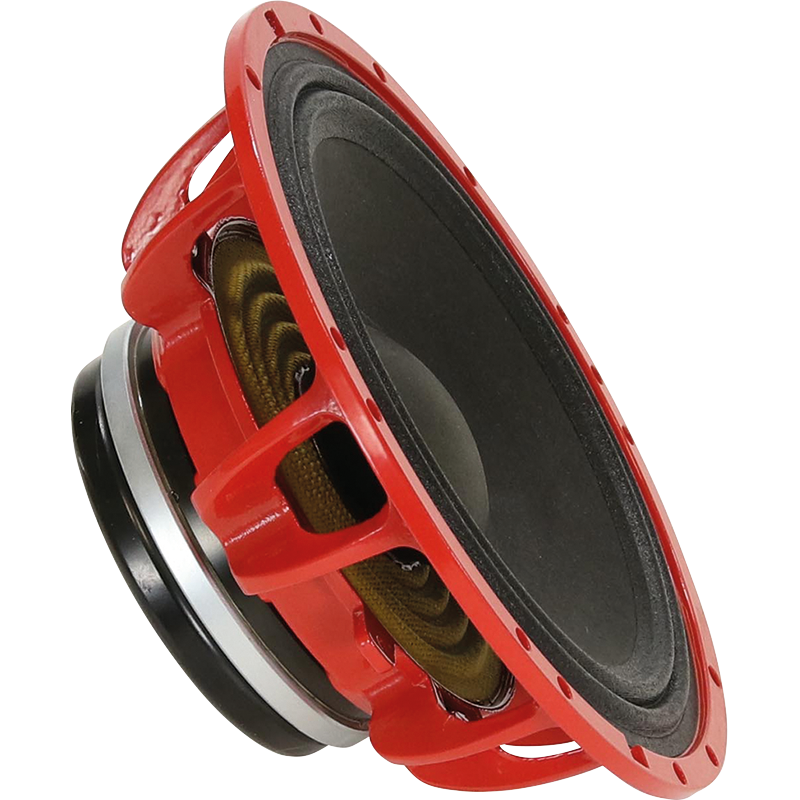

165 mm / 6.5″ high end SPL midrange speaker with neodymium motor and aluminum cast basket
6.5″ high power midrange speaker with neodymium motor
38 mm / 1.5″ CCA voice coil
Fiber reinforced paper cone
Neodymium motor
Aluminum cast housing
Aluminum phase plug
water repellend cone

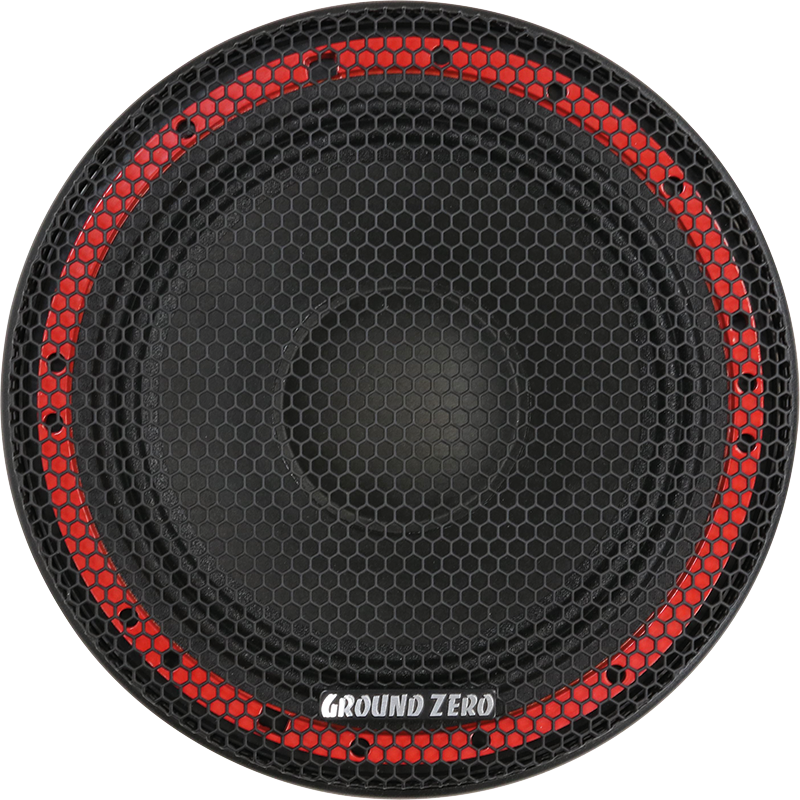

Incl. protection grill
Push terminal
1 piece / package
165 mm / 6.5″ high end SPL midrange speaker with neodymium motor and aluminum cast basket
6.5″ high power midrange speaker with neodymium motor
38 mm / 1.5″ CCA voice coil
Fiber reinforced paper cone
Neodymium motor
Aluminum cast housing
Aluminum phase plug
water repellend cone
Incl. protection grill
Push terminal
1 piece / package
Speaker diameter 165 mm / 6.5”
Impedance 4 Ohm
frequency response 180 Hz – 12 kHz
power handling (RMS) 200 Watt / Watts
power handling (max) 400 Watt / Watts
sensitivity 96 dB
resonance frequency 143 Hz
Vas 2.8 L / 0.10 cu.ft. 1
Qms 3.96
Qes 0.40
Qts 0.36
BL 9.2 N/A
Re 3.4 Ohm / ohms
Le 0.12 mH
Mms 10.7 g
Cms 0.12 mm/N
Xmax (p2p) 10 mm / 0.39“
voice coil 38 mm / 1.5”
magnet 90 mm / 3.54” Neodym
outer diameter 165 mm / 6.5”
mounting cutout 147 mm / 5.79”
mounting depth 63 mm / 2.48”
Impedance 4 Ohm
frequency response 180 Hz – 12 kHz
power handling (RMS) 200 Watt / Watts
power handling (max) 400 Watt / Watts
sensitivity 96 dB
resonance frequency 143 Hz
Vas 2.8 L / 0.10 cu.ft. 1
Qms 3.96
Qes 0.40
Qts 0.36
BL 9.2 N/A
Re 3.4 Ohm / ohms
Le 0.12 mH
Mms 10.7 g
Cms 0.12 mm/N
Xmax (p2p) 10 mm / 0.39“
voice coil 38 mm / 1.5”
magnet 90 mm / 3.54” Neodym
outer diameter 165 mm / 6.5”
mounting cutout 147 mm / 5.79”
mounting depth 63 mm / 2.48”
