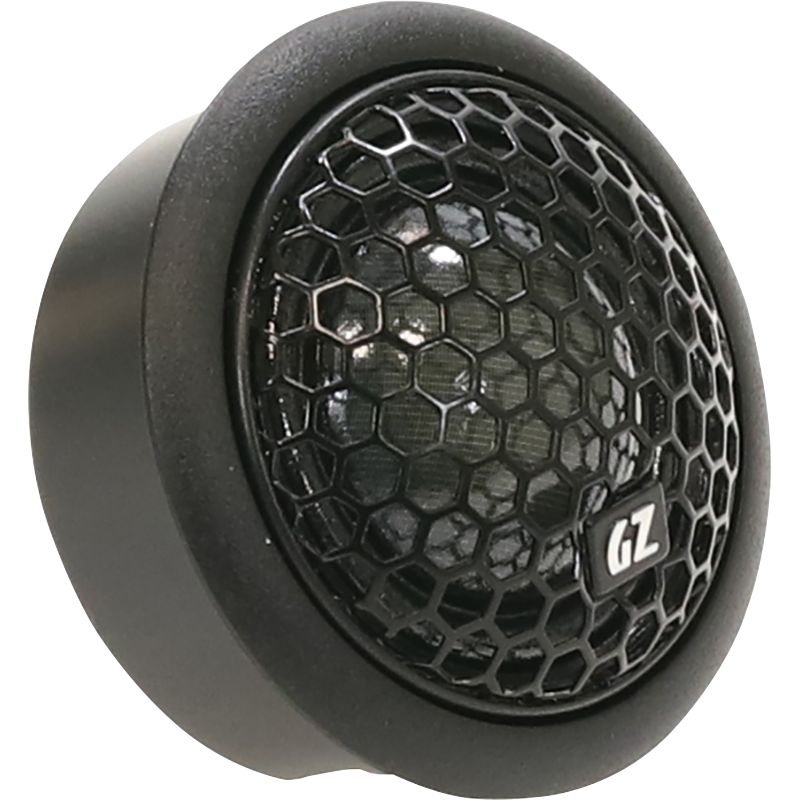

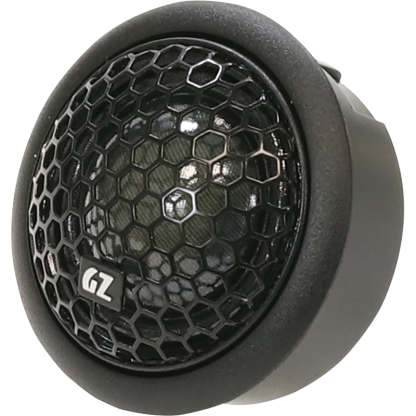

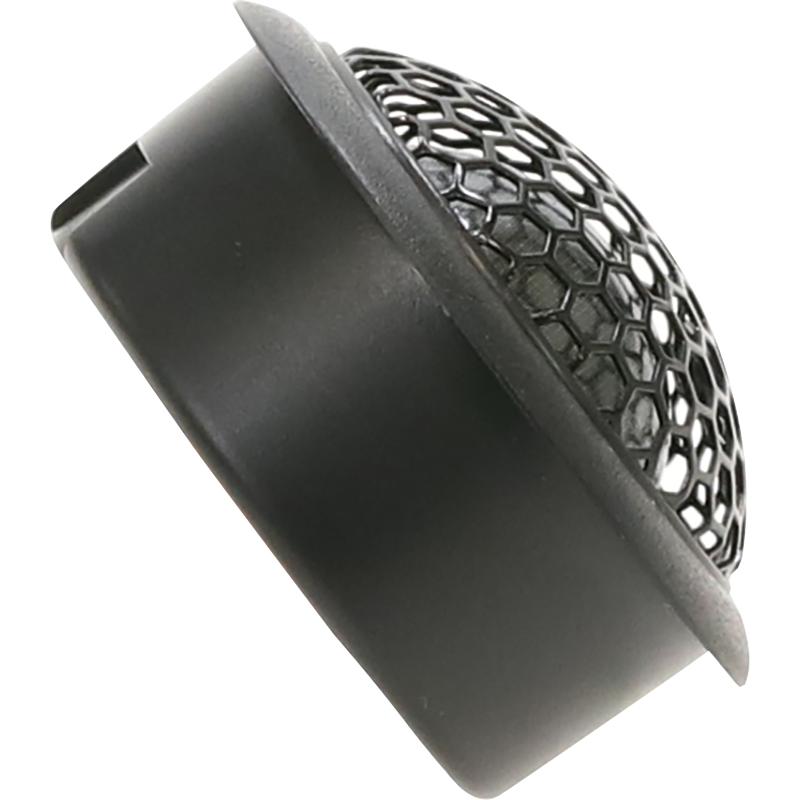

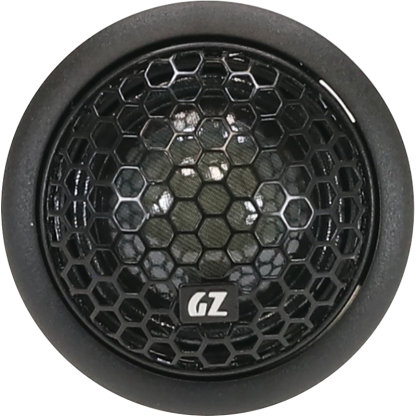

Ground Zero GZUT 28SQ
EAN: 4037072022452
GZUT 28SQ
28 mm / 1.10″
SQ silk dome tweeter
130W
4 Ohm
Läs Mera
par
1 590,00 kr
Beskrivning
Teknisk information
1.1″ sound quality silk dome tweeter
28 mm / 1.1″ silk dome tweeter
Flush mount housing
Coated silk dome
Gold plated connectors
Neodymium motor
Connection wires
1 pair / package
28 mm / 1.1″ silk dome tweeter
Flush mount housing
Coated silk dome
Gold plated connectors
Neodymium motor
Connection wires
1 pair / package
Model
Silk dome tweeter
Diameter
28 mm / 1.10″
Power Handling (RMS/max.)
80 / 130 Watts
Impedance
4 Ohms
Efficiency
90 dB
Frequency Response
2500 Hz – 25 kHz
Empfohlener Hochpass-Filter
3000 Hz @ 12 dB/oct
Voice Coil
28 mm / 1.1″
Membran Layout
Coated silk dome
Mounting Ø
48 mm / 1.89″
Mounting Depth
18 mm / 0.71″
Resonance Frequency (Fs)
1300 Hz
(Installation tip: The wire with a white stripe is the plus cable).
Silk dome tweeter
Diameter
28 mm / 1.10″
Power Handling (RMS/max.)
80 / 130 Watts
Impedance
4 Ohms
Efficiency
90 dB
Frequency Response
2500 Hz – 25 kHz
Empfohlener Hochpass-Filter
3000 Hz @ 12 dB/oct
Voice Coil
28 mm / 1.1″
Membran Layout
Coated silk dome
Mounting Ø
48 mm / 1.89″
Mounting Depth
18 mm / 0.71″
Resonance Frequency (Fs)
1300 Hz
(Installation tip: The wire with a white stripe is the plus cable).
