Sweet AI audiopack
Sweet AI audiopack
S2-C6.2
GZUB 8BR
S2-A100.4
Läs Mera
set
6 490,00 kr
Beskrivning
Teknisk information

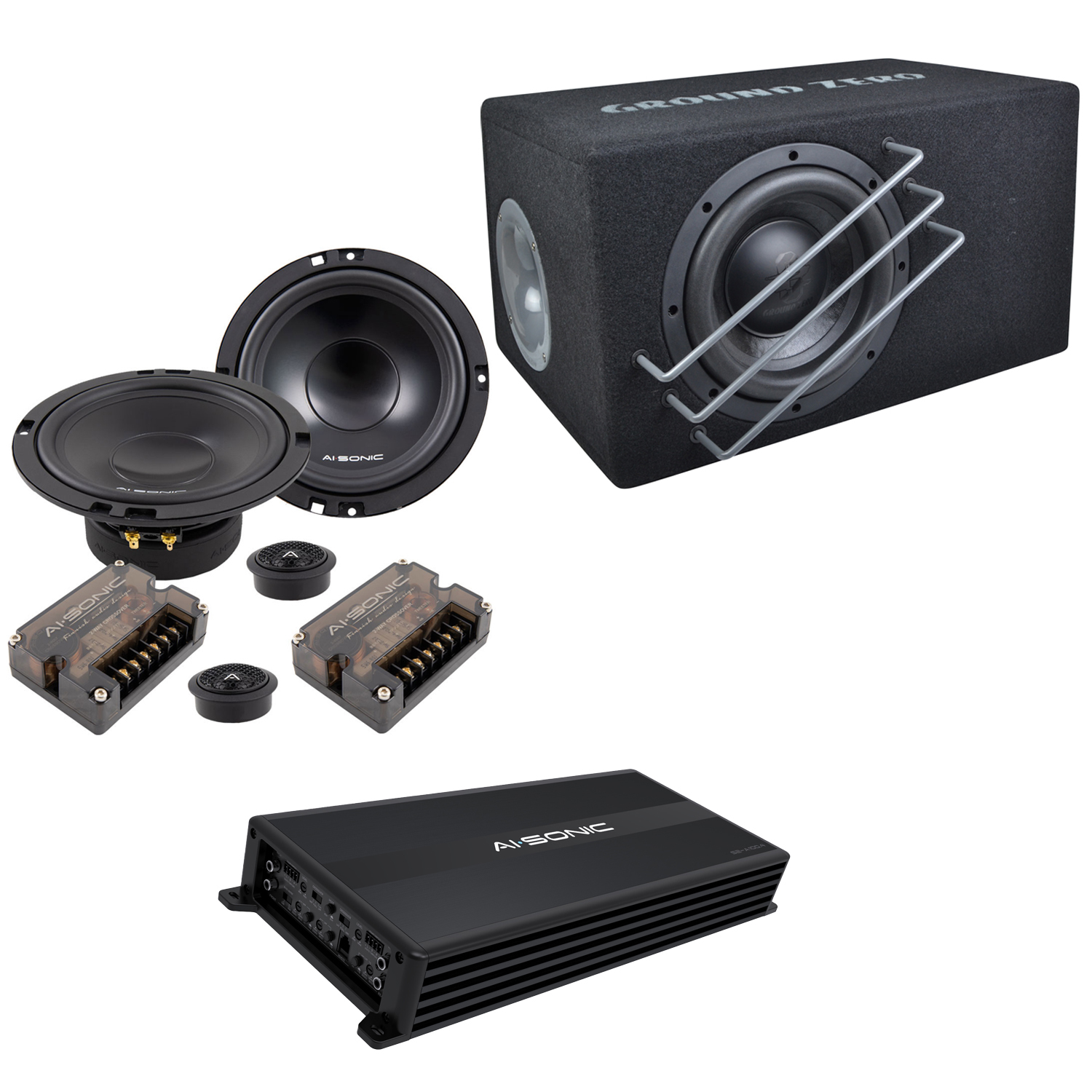

Sweet AI audiopack includes Ai-Sonic S2-C6.2 speaker set, Ground Zero GZUB 8BR subwoofer and Ai-Sonic S2-A100.4 amplifier.

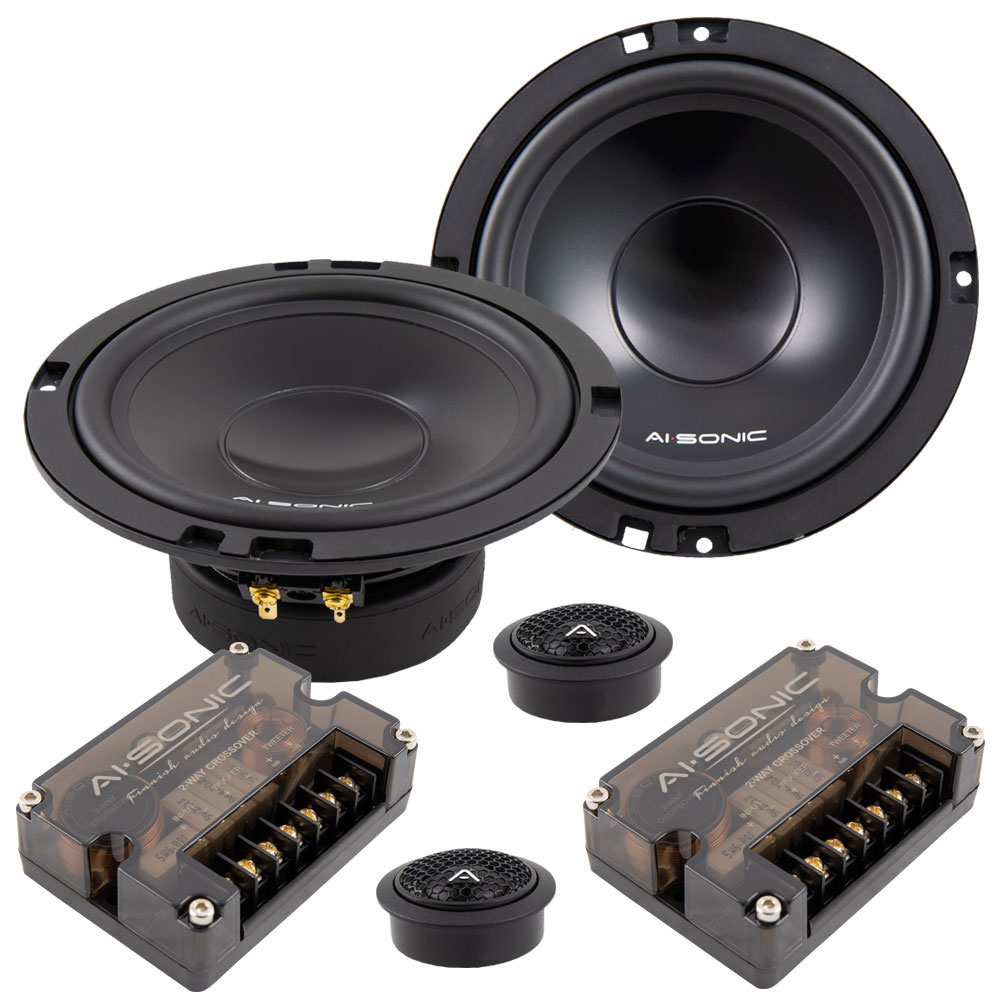

S2-C6.2:
- 6.5″ 2-Way Component Speaker System
- Black sandblasted Stainless Steel Basket
- Black Aluminium Cone Rubber edge
- 1.0 inch ASV Voice Coil
- 12.6 Oz Magnet Structure
- 25mm Silk Dome Neodymium tweeter

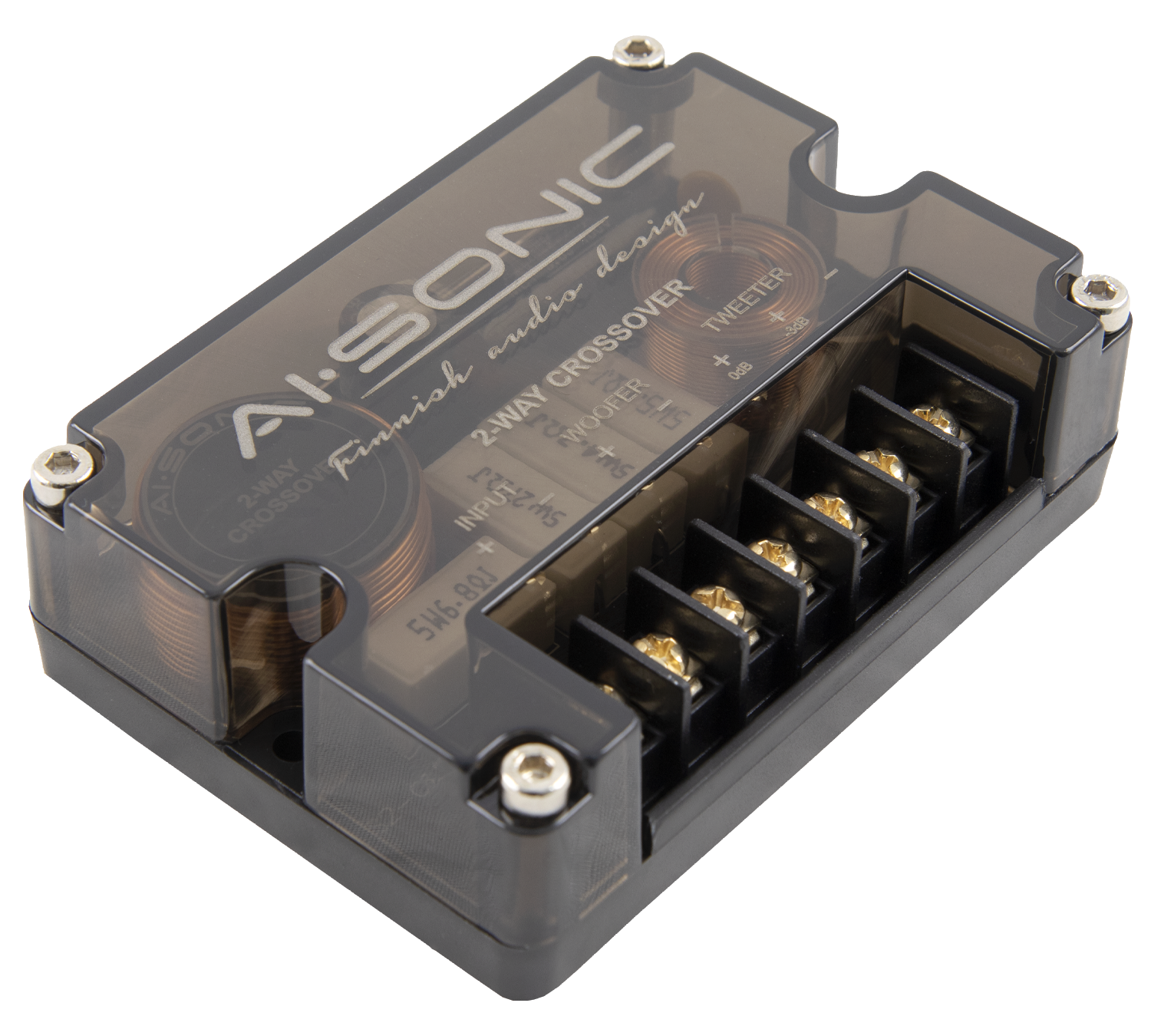

- 2-way passive crossover
- Includes grills for midwoofers

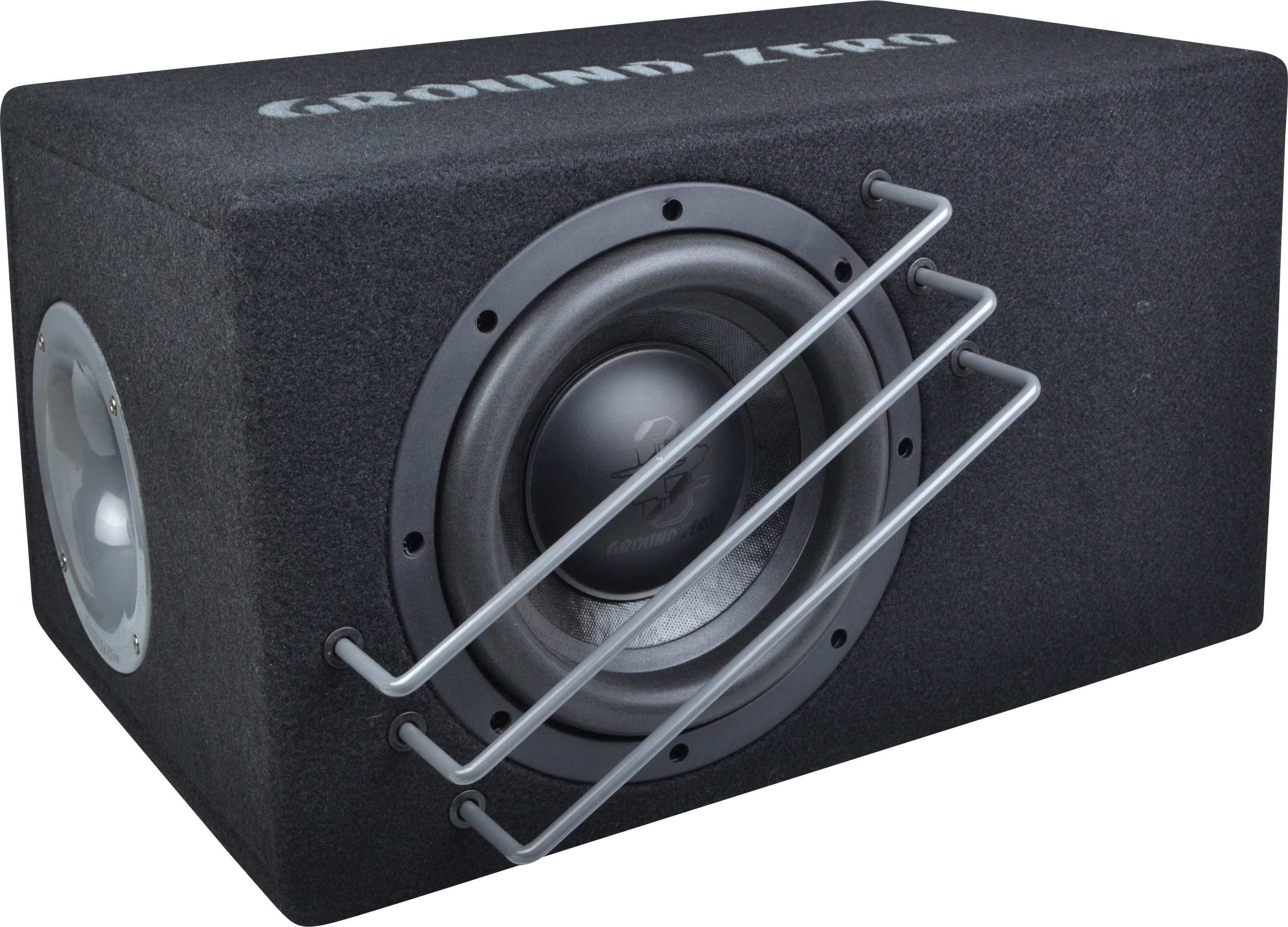

GZUB 8BR:
Passive vented enclosure including 8″ GZUW 8SQ-D2 subwoofer.

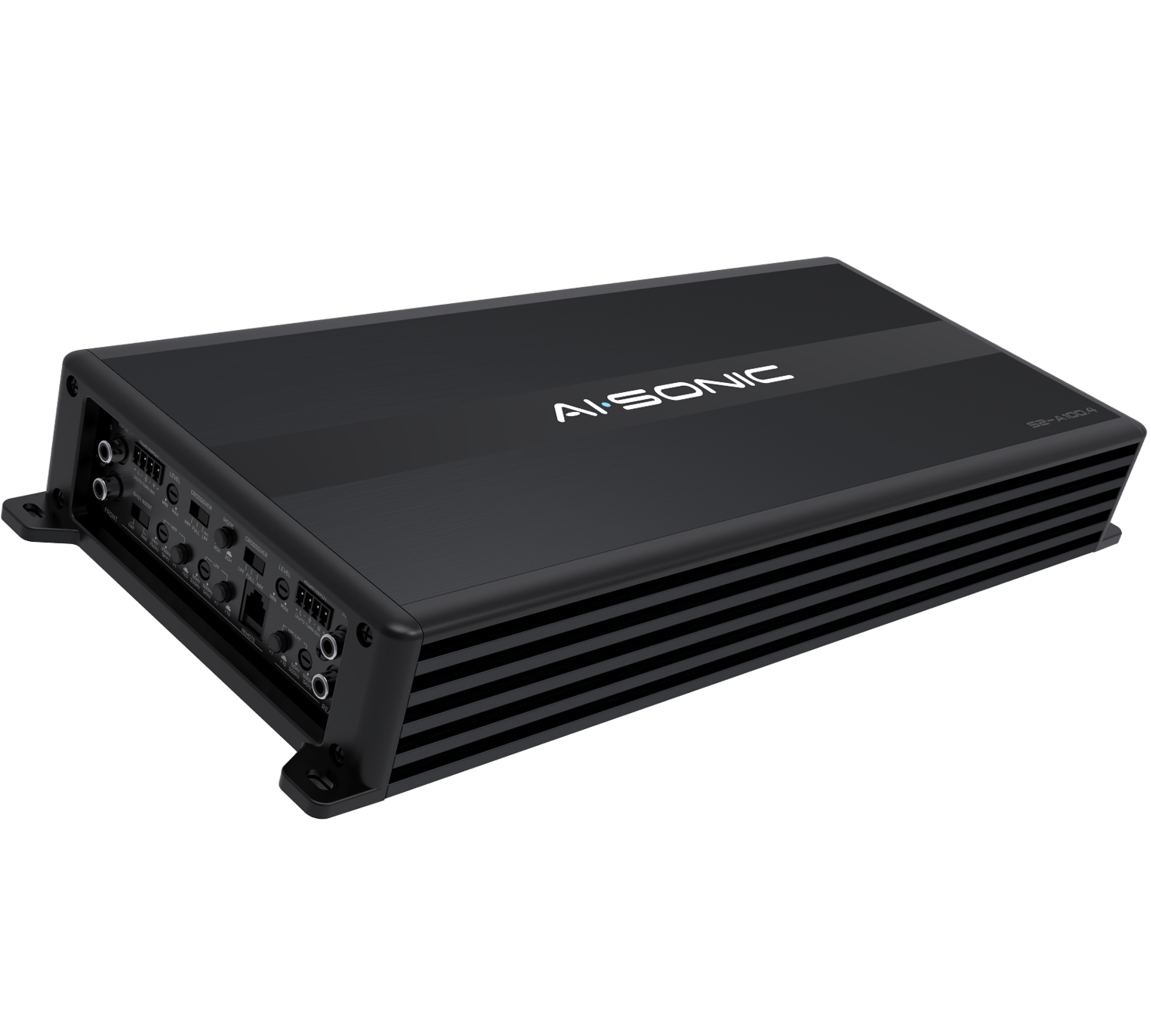

S2-A100.4:
AI-Sonic S2-A100.4 is 4-channel AB class amplifier for users, who want to feel pure sound quality.
Amplifier gives more power as there are mentioned at the specs.
Finished dark cover, which profile is brushed black aluminium.
When amplifier is on. There is indicator light in AI-Sonic logo!
Includes a remote control, which has three different indicator-leds.
(protection, power and clipping)
Designed in Finland.
S2-C6.2:
- 6.5″ 2-Way Component Speaker System
- Black sandblasted Stainless Steel Basket
- Black Aluminium Cone Rubber edge
- 1.0 inch ASV Voice Coil
- 12.6 Oz Magnet Structure
- 25mm Silk Dome Neodymium tweeter
- 2-way passive crossover
- Includes grills for midwoofers
GZUB 8BR:
Passive vented enclosure including 8″ GZUW 8SQ-D2 subwoofer.
S2-A100.4:
AI-Sonic S2-A100.4 is 4-channel AB class amplifier for users, who want to feel pure sound quality.
Amplifier gives more power as there are mentioned at the specs.
Finished dark cover, which profile is brushed black aluminium.
When amplifier is on. There is indicator light in AI-Sonic logo!
Includes a remote control, which has three different indicator-leds.
(protection, power and clipping)
Designed in Finland.
S2-C6.2:

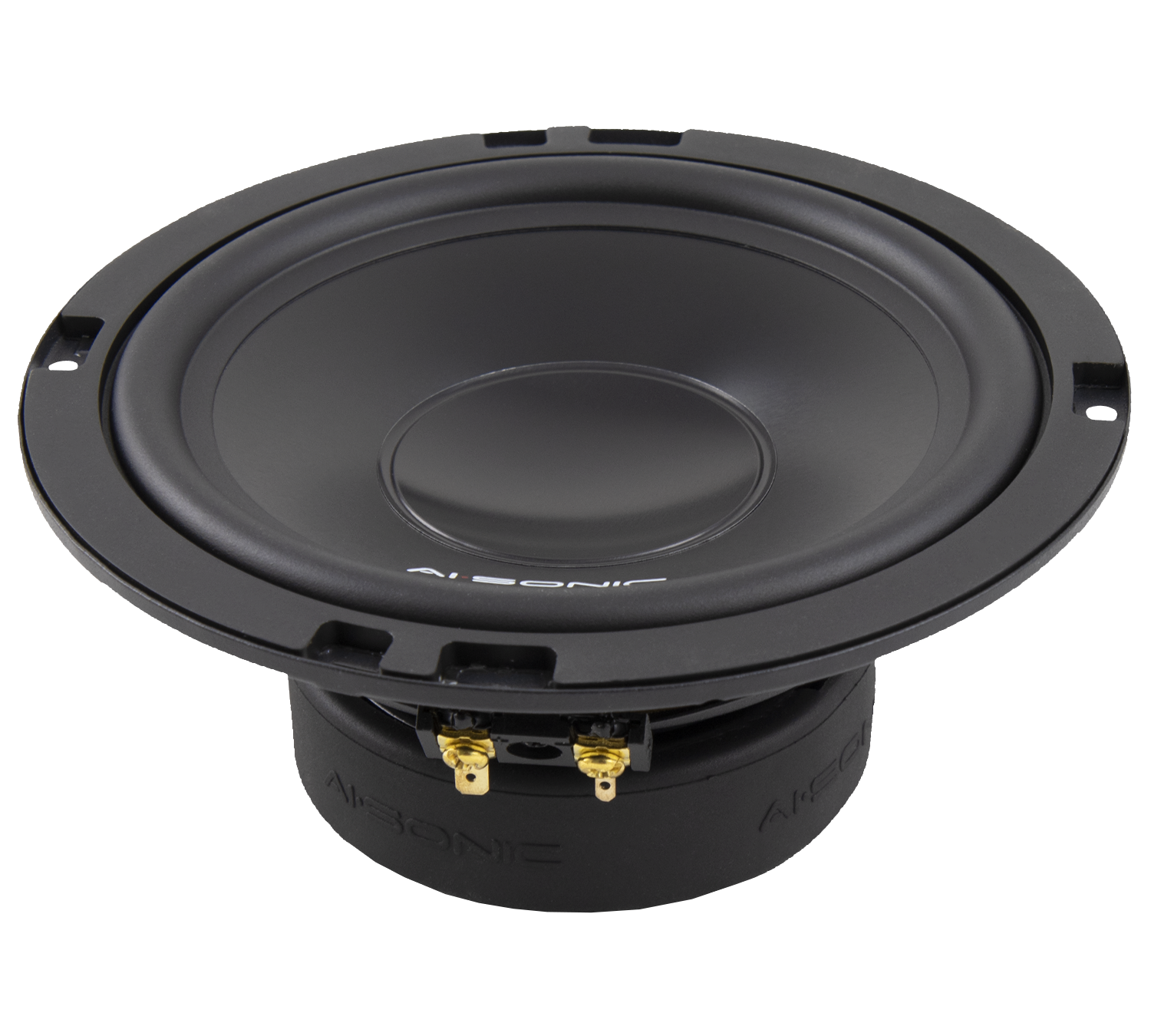

S2-W6:
FS = 64 Hz
Efficiency (SPL) = 88 dB
Qts = 0,85
Vas = 9,75 L
Impedance = 4 Ohm
Frequency response = 40 Hz - 4,5 kHz
Power recommendation = 40-150W
Power RMS = 90W
Outer diameter: 165 mm
Mounting diameter: 141 mm
Mounting depth: 62 mm

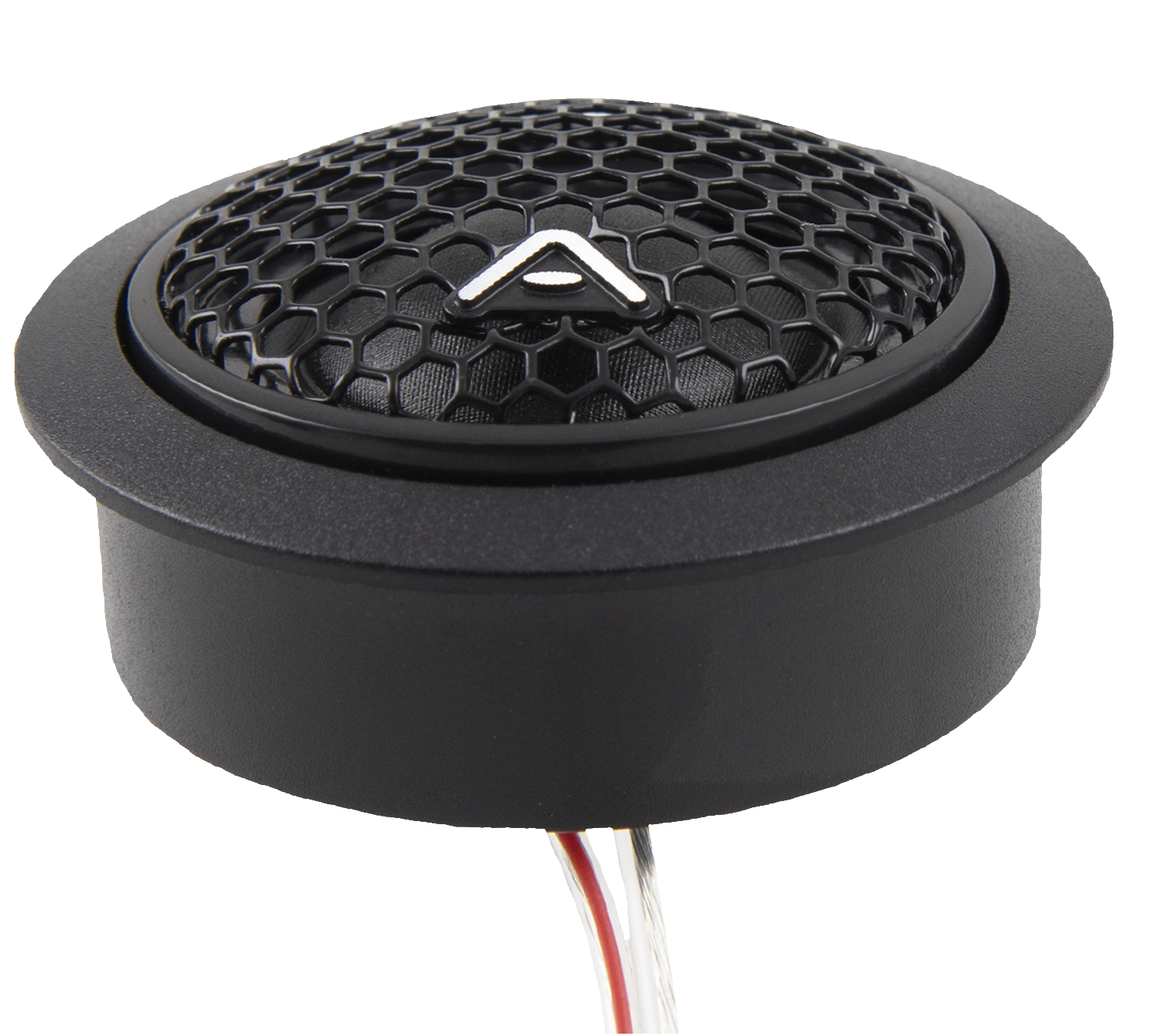

S2-T25:
FS = 1500 Hz
Efficiency (SPL) = 93 dB
Qts = n/a
Vas = n/a
Impedance = 4 Ohm
Frequency response = 3,8 - 25 kHz
Power recommendation = 20-100W
Power RMS = 50W
Outer diameter: 56 mm
Mounting diameter: 49 mm
Mounting depth: 15 mm.
GZUB 8BR:
8″ vented SQ loaded enclosure
Subwoofer GZUW 8SQ-D2
Resonance-free aluminum cast basket
2″ copper voice coil
High quality vented enclosure
Airflow optimized ventilation tube
Solid enclosure from MDF
GZ Push terminal
Power handling 300 Watts RMS
Impedance 2x2 Ohm
Xmax 20mm (p2p)
New volume 20.5 Liter
Tuning frequenzy 40 Hz
Roll-off frequenzy 33 Hz
Ventilation port 1x7cm
Port length 34cm
Dimensions (w x h x d) 430 x 250 x 318mm
Backwall angle 78°.
S2-A100.4:
RMS POWER (2ohm) 12v 1%THD 4 x 165W
RMS POWER (4ohm) 12v 1%THD 4 x 110W
BRIDGED POWER (4ohm) 12v 1%THD 2x330W
T.H.D 0,02% 4ohm, 0.04 % 2ohm
BANDWIDTH: 10Hz-40KHz
S/N RATIO(A-WEIGHTED): 105dB
INPUT SENSITIVITY: 0.5-6V
LOW PASS: x1: 50Hz-500Hz x10: 500Hz-5KHz
HIGH PASS: x1: 12Hz-250Hz (FRONT)
x2Q: 250Hz-5KHz (FRONT)
x1: 50Hz-500Hz(REAR)
x10: 500Hz-5KHz(REAR)
SUBSONIC: 12Hz -5KHz
CROSSOVER SLOPE: 12dB/oct
BASS BOOST: 0/6dB(@45Hz)
MODE: 2CH/4CH
POWER FUSE: 2x40A
HIGH-LEVEL VOLTAGE: 0.75-9V
Cable fitting size:
+12V = 20mm2
GND = 20mm2
REM = 6mm2
SPEAKER = 6mm2
Current Draw (Max): 75A
DIMENSIONS: W: 183mm / (7.2IN)
H: 60mm / (2.4IN)
L: 444mm / (17.5 IN)
S2-W6:
FS = 64 Hz
Efficiency (SPL) = 88 dB
Qts = 0,85
Vas = 9,75 L
Impedance = 4 Ohm
Frequency response = 40 Hz - 4,5 kHz
Power recommendation = 40-150W
Power RMS = 90W
Outer diameter: 165 mm
Mounting diameter: 141 mm
Mounting depth: 62 mm
S2-T25:
FS = 1500 Hz
Efficiency (SPL) = 93 dB
Qts = n/a
Vas = n/a
Impedance = 4 Ohm
Frequency response = 3,8 - 25 kHz
Power recommendation = 20-100W
Power RMS = 50W
Outer diameter: 56 mm
Mounting diameter: 49 mm
Mounting depth: 15 mm.
GZUB 8BR:
8″ vented SQ loaded enclosure
Subwoofer GZUW 8SQ-D2
Resonance-free aluminum cast basket
2″ copper voice coil
High quality vented enclosure
Airflow optimized ventilation tube
Solid enclosure from MDF
GZ Push terminal
Power handling 300 Watts RMS
Impedance 2x2 Ohm
Xmax 20mm (p2p)
New volume 20.5 Liter
Tuning frequenzy 40 Hz
Roll-off frequenzy 33 Hz
Ventilation port 1x7cm
Port length 34cm
Dimensions (w x h x d) 430 x 250 x 318mm
Backwall angle 78°.
S2-A100.4:
RMS POWER (2ohm) 12v 1%THD 4 x 165W
RMS POWER (4ohm) 12v 1%THD 4 x 110W
BRIDGED POWER (4ohm) 12v 1%THD 2x330W
T.H.D 0,02% 4ohm, 0.04 % 2ohm
BANDWIDTH: 10Hz-40KHz
S/N RATIO(A-WEIGHTED): 105dB
INPUT SENSITIVITY: 0.5-6V
LOW PASS: x1: 50Hz-500Hz x10: 500Hz-5KHz
HIGH PASS: x1: 12Hz-250Hz (FRONT)
x2Q: 250Hz-5KHz (FRONT)
x1: 50Hz-500Hz(REAR)
x10: 500Hz-5KHz(REAR)
SUBSONIC: 12Hz -5KHz
CROSSOVER SLOPE: 12dB/oct
BASS BOOST: 0/6dB(@45Hz)
MODE: 2CH/4CH
POWER FUSE: 2x40A
HIGH-LEVEL VOLTAGE: 0.75-9V
Cable fitting size:
+12V = 20mm2
GND = 20mm2
REM = 6mm2
SPEAKER = 6mm2
Current Draw (Max): 75A
DIMENSIONS: W: 183mm / (7.2IN)
H: 60mm / (2.4IN)
L: 444mm / (17.5 IN)
