AI audiopack
AI audiopack
S1-CX6.2
GZIB 20BR
S2-A60.4
Läs Mera
set
3 990,00 kr
Beskrivning
Teknisk information

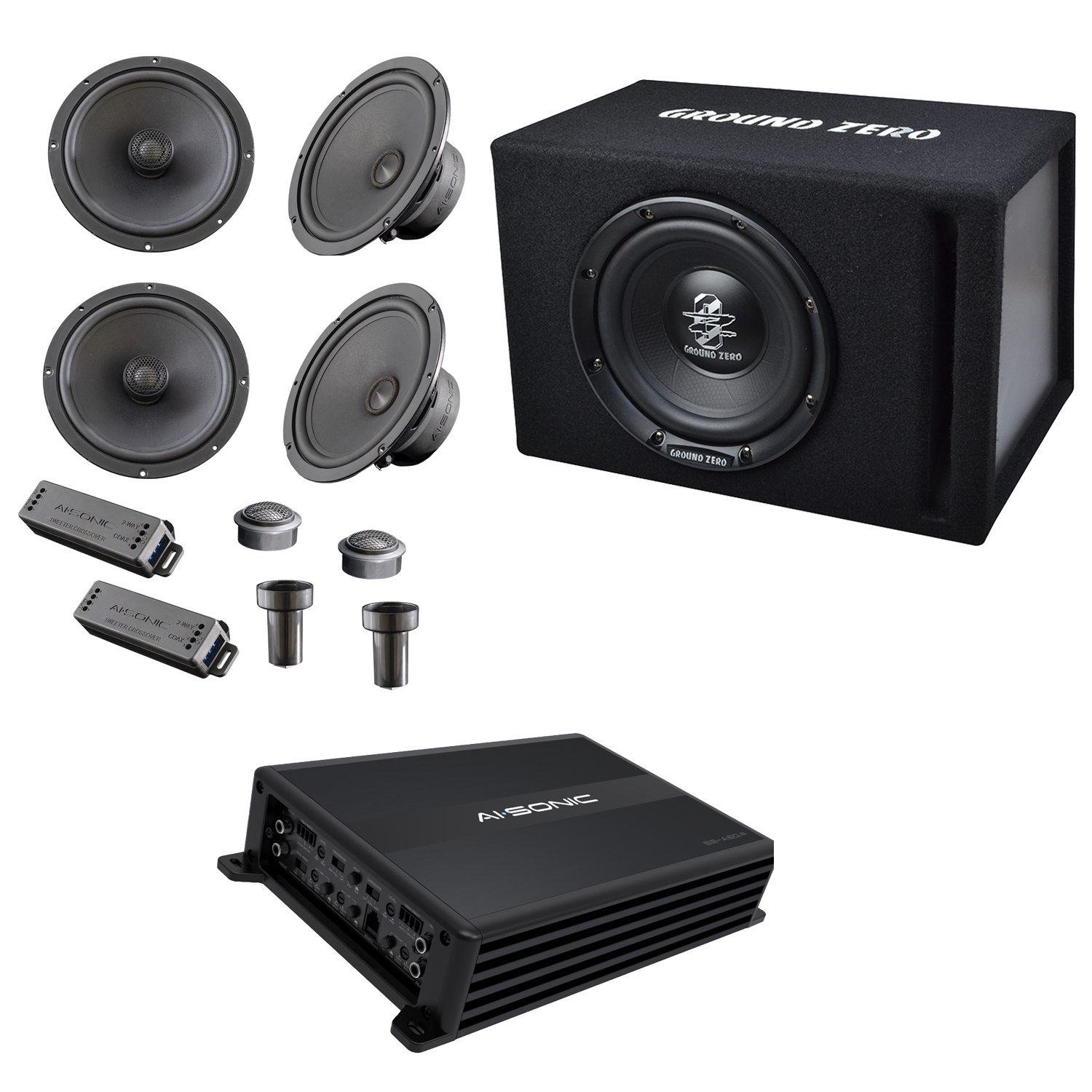

AI audiopack includes AI-SONIC S1-CX6.2 speaker system, GZIB 20BR subwoofer and S2-A60.4 amplifier.
S1-CX6.2:

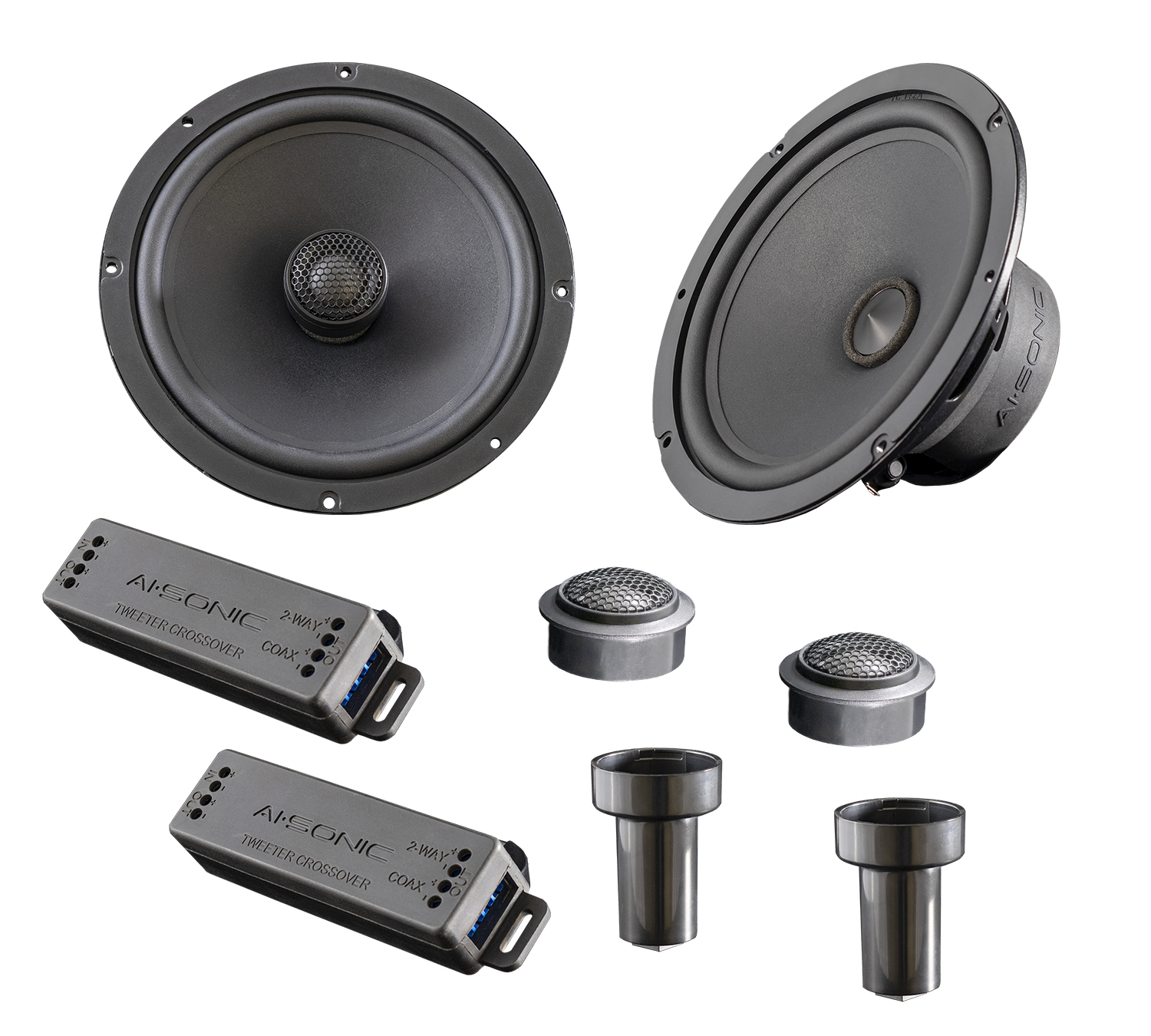

AI-Sonic S1-Series 6,5″ 2-way component speaker system with coaxial option.
You can easily remove the ″phase plug″ and install tweeter instead to make this speaker coaxial!
Sandplasted stainless steel basket.
1″ ASV voice coil.
20mm Silk dome neodymium tweeter.
2-way passive crossover with rubber housing.
GZIB 20BR:

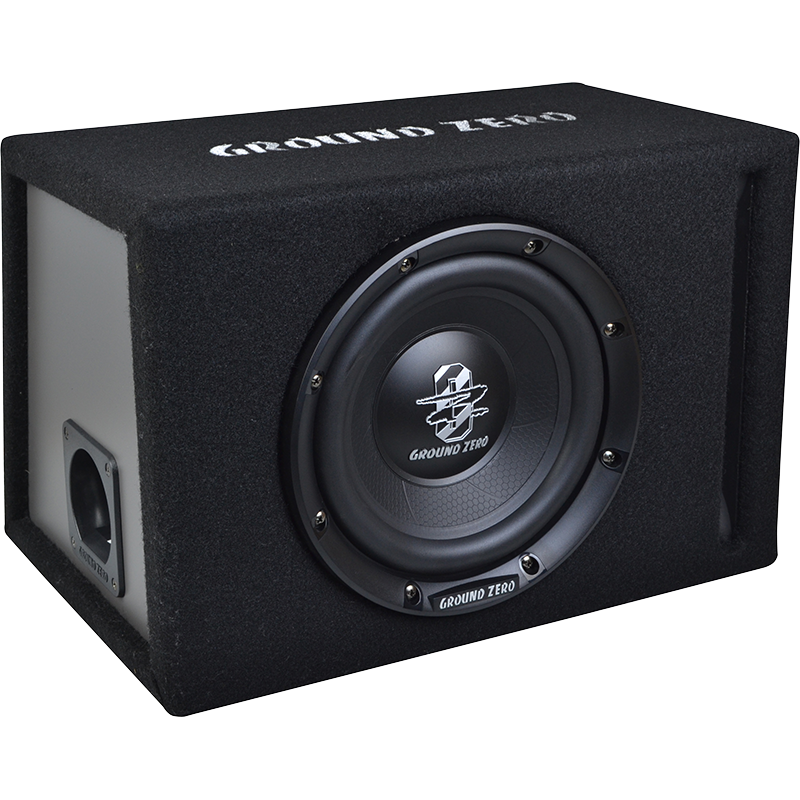

Passive vented enclosure including 8″ IRIDIUM subwoofer with EFP front bass channel and angled rear wall
8″ vented subwoofer loaded enclosure
Subwoofer GZIW 20
Front vented
Wooden enclosure
Push terminal
S2-A60.4:

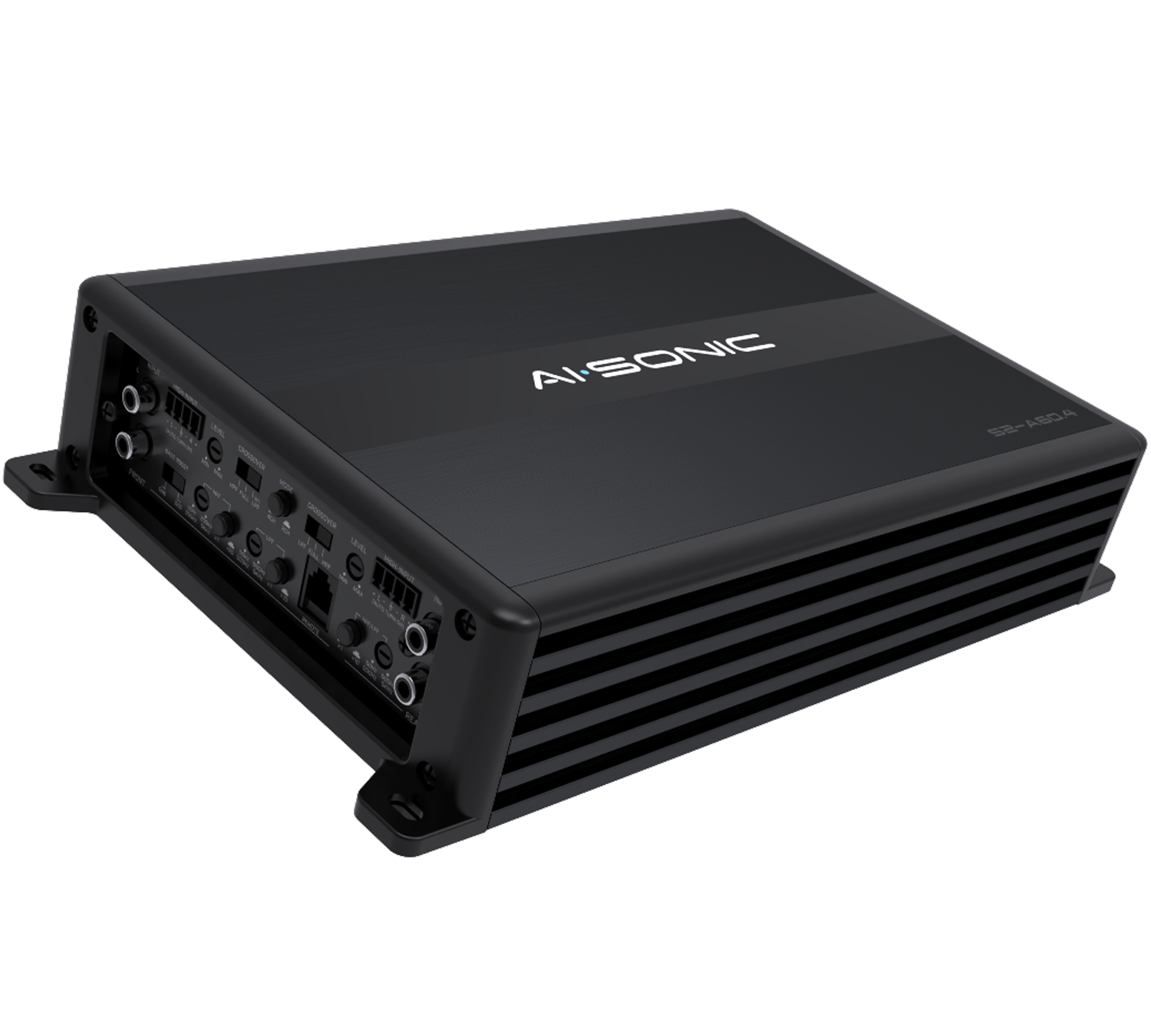

AI-Sonic S2-A60.4 is 4-channel AB class amplifier for users, who want to feel pure sound quality.
Amplifier gives more power as there are mentioned at the specs.
Finished dark cover, which profile is brushed black aluminium.
When amplifier is on. There is indicator light in AI-Sonic logo!
Includes a remote control, which has three different indicator-leds.
(protection, power and clipping)
Designed in Finland.
S1-CX6.2:
AI-Sonic S1-Series 6,5″ 2-way component speaker system with coaxial option.
You can easily remove the ″phase plug″ and install tweeter instead to make this speaker coaxial!
Sandplasted stainless steel basket.
1″ ASV voice coil.
20mm Silk dome neodymium tweeter.
2-way passive crossover with rubber housing.
GZIB 20BR:
Passive vented enclosure including 8″ IRIDIUM subwoofer with EFP front bass channel and angled rear wall
8″ vented subwoofer loaded enclosure
Subwoofer GZIW 20
Front vented
Wooden enclosure
Push terminal
S2-A60.4:
AI-Sonic S2-A60.4 is 4-channel AB class amplifier for users, who want to feel pure sound quality.
Amplifier gives more power as there are mentioned at the specs.
Finished dark cover, which profile is brushed black aluminium.
When amplifier is on. There is indicator light in AI-Sonic logo!
Includes a remote control, which has three different indicator-leds.
(protection, power and clipping)
Designed in Finland.
S1-CX6.2:
- 1″ ASV voice coil.
- 20mm Silk dome neodymium tweeter.
- 2-way passive crossover with rubber housing.
- Impedance 4 Ohm
- Tweeter crossover 12dB / oct
- Midbass crossover 6dB / oct
- Crossover cutoff 4900Hz
- Power recommendation 25-130W
- Sensitivity 89dB
- Woofer outer diameter 165mm
- Woofer mounting diameter 142,7mm
- Woofer mounting depth with rubber 63mm
- Tweeter outer diameter 36mm
- Tweeter mounting 33mm
- Tweeter mounting depth 8,7mm.
GZIB 20BR:
Model
Subwoofer Box
Diameter
20 cm / 8″
Power Handling (RMS)
150 Watts
Impedance
4 Ohms
Net Volume
17 L / 0.60 cu.ft.
Subwoofer
GZIW 20
Dimensions (B x H x T1/T2)
400 x 270 x 290/230 mm / 15.75″ x 10.63″ x 11.42″/9.06″.
S2-A60.4:
RMS POWER (2ohm ) 12v 1%THD 4x105 W
RMS POWER (4ohm ) 12v 1%THD 4x70 W
BRIDGED POWER(4ohm) 12v 1%THD 2x210W
T.H.D 0,02% 4ohm, 0.04 % 2ohm
BANDWIDTH: 10Hz-40KHz
S/N RATIO (A-WEIGHTED): 105dB
CHANNEL SEPARATION: 45dB
INPUT SENSITIVITY: 0.5-6V
INPUT IMPEDANCE: 13K
LOW PASS: x1: 50Hz-500Hz x10: 500Hz-5KHz
HIGH PASS: x1: 12Hz-250Hz (FRONT)
x2Q: 250Hz-5KHz(FRONT)
x1 : 50Hz-500Hz(REAR)
x10: 500Hz-5KHz(REAR)
BAND PASS(FRONT ): 12Hz- 5KHz
CROSSOVER SLOPE: 12dB/oct
BASS BOOST: 0/6dB(@45Hz)
MODE: 2CH/4CH
POWER FUSE: 2x25A
HIGH-LEVEL VOLTAGE: 0.75-9V
Cable fitting size:
+12V = 20mm2
GND = 20mm2
REM = 6mm2
SPEAKER = 6mm2
Current Draw (Max): 48A
DIMENSIONS: W: 183mm / (7.2 IN)
H: 60mm / (2.4I N)
L: 304mm / ( 12.0 IN)
- 1″ ASV voice coil.
- 20mm Silk dome neodymium tweeter.
- 2-way passive crossover with rubber housing.
- Impedance 4 Ohm
- Tweeter crossover 12dB / oct
- Midbass crossover 6dB / oct
- Crossover cutoff 4900Hz
- Power recommendation 25-130W
- Sensitivity 89dB
- Woofer outer diameter 165mm
- Woofer mounting diameter 142,7mm
- Woofer mounting depth with rubber 63mm
- Tweeter outer diameter 36mm
- Tweeter mounting 33mm
- Tweeter mounting depth 8,7mm.
GZIB 20BR:
Model
Subwoofer Box
Diameter
20 cm / 8″
Power Handling (RMS)
150 Watts
Impedance
4 Ohms
Net Volume
17 L / 0.60 cu.ft.
Subwoofer
GZIW 20
Dimensions (B x H x T1/T2)
400 x 270 x 290/230 mm / 15.75″ x 10.63″ x 11.42″/9.06″.
S2-A60.4:
RMS POWER (2ohm ) 12v 1%THD 4x105 W
RMS POWER (4ohm ) 12v 1%THD 4x70 W
BRIDGED POWER(4ohm) 12v 1%THD 2x210W
T.H.D 0,02% 4ohm, 0.04 % 2ohm
BANDWIDTH: 10Hz-40KHz
S/N RATIO (A-WEIGHTED): 105dB
CHANNEL SEPARATION: 45dB
INPUT SENSITIVITY: 0.5-6V
INPUT IMPEDANCE: 13K
LOW PASS: x1: 50Hz-500Hz x10: 500Hz-5KHz
HIGH PASS: x1: 12Hz-250Hz (FRONT)
x2Q: 250Hz-5KHz(FRONT)
x1 : 50Hz-500Hz(REAR)
x10: 500Hz-5KHz(REAR)
BAND PASS(FRONT ): 12Hz- 5KHz
CROSSOVER SLOPE: 12dB/oct
BASS BOOST: 0/6dB(@45Hz)
MODE: 2CH/4CH
POWER FUSE: 2x25A
HIGH-LEVEL VOLTAGE: 0.75-9V
Cable fitting size:
+12V = 20mm2
GND = 20mm2
REM = 6mm2
SPEAKER = 6mm2
Current Draw (Max): 48A
DIMENSIONS: W: 183mm / (7.2 IN)
H: 60mm / (2.4I N)
L: 304mm / ( 12.0 IN)
